Oil Pump Chain Timing Marks

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by TwoPriusInTenn, Dec 26, 2020.

  1. TwoPriusInTenn

    Joined:
    Nov 27, 2015
    141
    44
    0
    Location:
    Florida
    Vehicle:
    2004 Prius
    Model:
    Base
    2012, 3rd Gen - Does anyone have a diagram or picture of the correct sprocket and timing chain mark placement for the oil pump when engine is tdc? My timing chain skipped a link when I replaced it also throwing off the oil pump off.

    Thank you.


    Attached Files:

  2. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,261
    10,074
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV

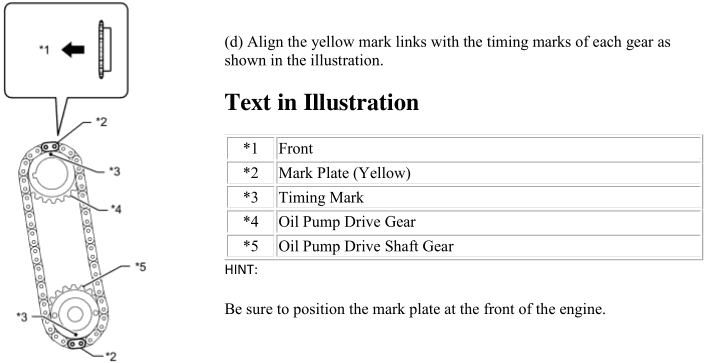

    [​IMG]

    That said, I've been wondering for years just how you would tell when your oil timing is off...

    TwoPriusInTenn and SFO like this.
  3. TwoPriusInTenn

    Joined:
    Nov 27, 2015
    141
    44
    0
    Location:
    Florida
    Vehicle:
    2004 Prius
    Model:
    Base
    Thank you. I was wondering as if it makes any difference in how the oil pump is timed. I guess those marks are there for a reason so I might as well use them. Thanks again!

  4. jerrymildred

    jerrymildred Senior Member

    Joined:
    Oct 28, 2016
    9,944
    12,211
    0
    Location:
    Tampa, FL
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    Timing for an oil pump? Hooda thunk it?

  5. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,261
    10,074
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    It honestly makes me a bit curious. A quick Google for "oil pump timing" nets a lot of pages about Mitsubishi 4G63 engines, which have weighted balance shafts to be kept in the proper phase with the crankshaft, and a timing mark on the oil pump sprocket that is part of that scheme.

    But as far as I know, our 2ZR oil pump is just a shallow little pump there, sitting at the front of the engine. I suppose they still could have tweaked its weight somehow for some sort of vibration-canceling effect. Does the New Car Features manual say anything about it? Anybody?

  6. TwoPriusInTenn

    Joined:
    Nov 27, 2015
    141
    44
    0
    Location:
    Florida
    Vehicle:
    2004 Prius
    Model:
    Base
    The shaft for the sprocket on the oil pump is flat on one side to correspond with the inside of the shaft housing on sprocket and timing dot. So, I guess it makes a difference.

  7. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,261
    10,074
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    So the manual would suggest. For inquiring minds, the question is still (in the absence of Mitsubishi-esque balance shafts or the like), what difference?
