Oxygen sensor general info

Discussion in 'Generation 1 Prius Discussion' started by joedirte, May 26, 2012.

  1. joedirte

    joedirte Member

    Joined:
    Apr 19, 2012
    281
    58
    0
    Location:
    ohio
    Vehicle:
    2003 Prius
    Model:
    I
    Just thought I'd summarize O2 information for people as these cars get older.

    [​IMG]

    [​IMG]

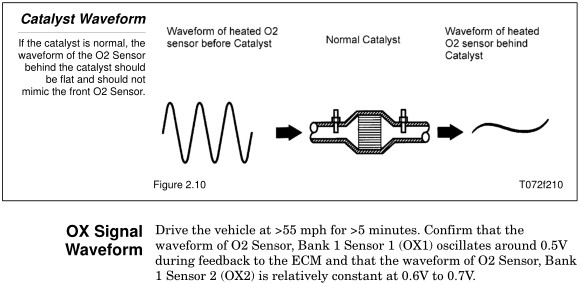

    (Gen 2 Repair Manual states: Drive the vehicle at 44 to 70 mph for 5 to 10 minutes.)

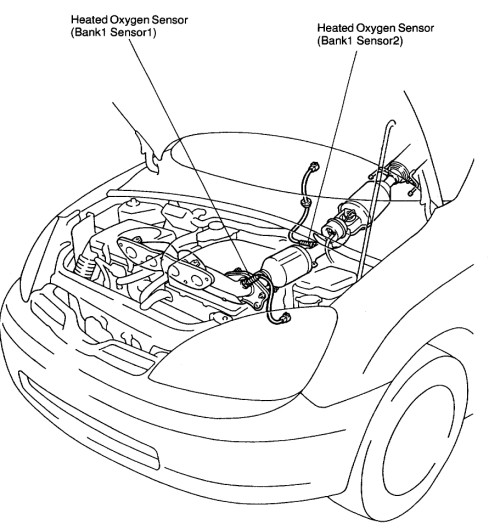

    Oxygen Sensor OX1A (Gen 1 only)
    Bank 1 Sensor 1
    Upstream (on exhaust manifold)
    Wideband O2 sensor, Engine ECU uses this to adjust fuel trim (replaced with A/F in Gen 2)
    Voltage varies rapidly from 0.1 to 0.9V (average around 0.5V approx 2Hz) when ICE is running
    Check with voltmeter pin 12 connector E10 (gen 1)
    Generic OBD2 reader as O2V11
    http://priuschat.com/forums/gen-ii-...ation-oxygen-sensor-bank-2-a.html#post1372802


    Oxygen Sensor OX1B
    Bank 1 Sensor 2
    Downstream (on exhaust after cat)
    Narrow band O2, ECU uses this to determine Catalytic efficiency or problems
    Voltage changes very slowly hovers around "0.6V to 0.7V" (0.8? or 0.9? normal?)
    Check with voltmeter pin 11 connector E10 (gen 1)
    Generic OBD2 reader as O2V12
    Prius 1st gen - Replacing the Catalytic Converters
    The down stream O2 sensor can be accessed by removing the floorboards in the passenger compartment.

    You can directly measure the resistance of the heater element on the 4-pin oxygen sensor plug. Measure between pins 1 & 2 and it should be 11 to 16 Ω at 20C. (Assuming same heater for the upstream O2 sensor)


    Possible DTCs
    P0135 - Oxygen Sensor Heater Circuit Malfunction (Bank 1 Sensor 1) or
    P0141 - Oxygen Sensor Heater Circuit Malfunction (Bank 1 Sensor 2)
    * Heater current is less than 0.25A (at 0.3 second after heater is turned ON)
    * When the heater operates, heater current exceeds 2A
    P0130 - Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 1) (Except Calif.) or
    P0133 - Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1)
    * Output voltage does not both go above 0.48V and below 0.42V (bad if always too low, always too high or always between 0.42 and 0.48)
    P0136 - Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2)
    * Output voltage remains between 0.45V and 0.55V when driven over 62 mph

    HCAC Bypass Valve (Gen 1 only)
    P1436 - Bypass Valve Malfunction
    * Bypass valve not operating during cold start or warm coolant but engine load > 30%
    P0420 - Catalyst System Efficiency
    * deteriorated response for Sensor 1 Bank 2 (downstream)

    If you have DTC codes related to downstream O2 or the catalytic converter for a Gen 1 Prius, please check this:
    [​IMG]

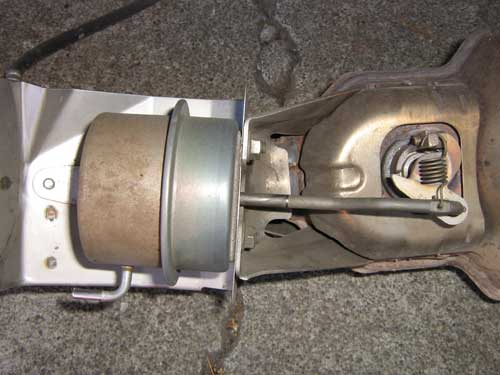

    Stupid, criminally designed, exhaust diverter. This would be the view looking down from the armrest if the floor was transparent. You need to work the linkage rod free and make sure the vacuum hose that connects on the lower left of this picture (into the diaphragm) is working to move the linkage. You can put a brake vacuum pump on the diaphragm to operate it. It is part of the $1700 one-piece catalytic exhaust so be careful and keep that thing free and maybe use high temp grease.

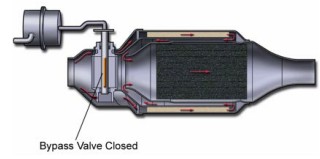

    Scavenges exhaust during cold start and during deceleration:
    [​IMG]


    Other
    Upstream catalyst = between 430C and 800C (vary with vehicle speed)
    Downstream catalyst = between 290C and 675C (vary with vehicle speed)

    Other relevant threads:
    http://priuschat.com/forums/generation-1-prius-discussion/96134-oxygen-sensor.html
    http://priuschat.com/forums/generation-1-prius-discussion/92240-oxygen-sensor-replacement.html
    http://priuschat.com/forums/gen-ii-prius-care-maintenance-troubleshooting/103565-cel-code-p0138.html
    http://priuschat.com/forums/gen-ii-...on/96929-location-oxygen-sensor-bank-2-a.html
    http://priuschat.com/forums/gen-ii-...ooting/89967-oxygen-sensor-collar-around.html

    -----------------------------------------------------
    Gen 2
    -----------------------------------------------------

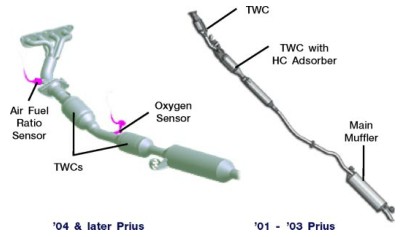

    Gen 2 - Removed bypass valve
    [​IMG]

    Gen 2 - added DTCs for Bank 1 Sensor 2 (downstream)
    P0136 - Malfunction
    * Heated oxygen sensor impedance Less than 5 Ω
    * Output voltage (max) less than 0.6 V or (min) always above 0.24 V
    * 30 seconds or more, Estimated sensor temperature Less than 750C (1382 F)
    P0137 - Low Voltage
    * Heated oxygen sensor impedance 15 kΩ or more
    * Output voltage always less than 0.25 V
    * 55 seconds or more, Estimated sensor temperature 450C (842 F) or more, Intake air amount More than 0 g/sec
    P0138 - High Voltage
    * Output voltage always over 0.6 V
    * 1.2 V for 10 seconds or more.


    Gen 2 - New A/F Bank 1 Sensor 1 (upstream)
    In Gen 2, Bank 1 Sensor 1 sensor replaced with planar A/F wideband sensor
    A/F sensor (upstream) info from Patrick Wong http://priuschat.com/forums/toyota-...10-o2-air-fuel-ratio-sensors.html#post1311984
    Toyota 2004 Prius wiring diagram shows the following color coding (bank 1 sensor 1):
    Red: AF+ (sensor connection to Engine ECU)
    Green: AF- (sensor connection to Engine ECU)
    Yellow: Pulse width modulation for A/F heater
    Black: +12V
    * The heater current is supposed to be > 0.8A and < 10A or else a DTC will be logged.
    * A/F sensor heater element resistance (pin 1 and 2) should be between 1.8 to 3.4 ohms (at 20C [68F]).
    * A/F sensor has warmed up, at idle speed the sensor voltage is supposed to fluctuate from < 3V to > 3.35V.
    * If the voltage remains greater at all times, then the air/fuel mixture is lean.

    Sensor voltages on ECM on Connector E5 pins 23 to 28 and Connector E5 pins 22 to 28

    A/F sensor (upstream)
    Less than 3.0 V == +25 % injection volume (rich)
    More than 3.35 V == –12.5 % injection volume (lean)

    Oxygen sensor (downstream)
    More than 0.55 V == +25 % injection volume (rich)
    Less than 0.4 V == –12.5 % injection volume (lean)

    .

  2. electrontechnik

    Joined:
    Mar 2, 2012
    117
    31
    21
    Location:
    USA
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    Great information!

  3. joedirte

    joedirte Member

    Joined:
    Apr 19, 2012
    281
    58
    0
    Location:
    ohio
    Vehicle:
    2003 Prius
    Model:
    I
    I would be curious anyone with scanguage or even generic OBD-II what the historical reading is on the downstream O2. I seem to get over 0.8V and it will stay that way even a few minutes after the ICE is off. I would think it would want to be around 0.5 if engine, but I have a +3% LTFT. Anyways, it would be good for a benchmark of known good versus aged or going bad ones.

  4. electrontechnik

    Joined:
    Mar 2, 2012
    117
    31
    21
    Location:
    USA
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A

    I would but my dad is borrowing my Innova 3040...and he lives in another state. I'll see if I can get the readings the next time I visit!

  5. joedirte

    joedirte Member

    Joined:
    Apr 19, 2012
    281
    58
    0
    Location:
    ohio
    Vehicle:
    2003 Prius
    Model:
    I
    I edited the post to include the Manual test condition of 55mph for 5 mins, Bank 2 (downstream) should be 0.6V to 0.7V.

  6. joedirte

    joedirte Member

    Joined:
    Apr 19, 2012
    281
    58
    0
    Location:
    ohio
    Vehicle:
    2003 Prius
    Model:
    I
    I would really like to get some more feedback from others on the downstream O2 sensor. From digging into all these details, it is clear to me that Toyota added DTCs for this sensor that are not in Gen 1, but the sensor is the same one.

    It is my belief that you can have a bad downstream sensor that will lead to the ICE running rich if the voltage stays too high and doesn't change voltage. From what I can tell you can run with downstream O2 always at 0.9V in Gen 1 and no codes will be thrown, but you will probably be throwing way too much gas down the cat. Leading to poor mileage and needing a new cat after a short time.

    It could be the downstream O2 sensor is only used to throw trouble codes just to confirm the catalytic converter is working. The manual implies the Engine ECU also uses downstream voltage to adjust the Fuel Trim. Does anyone know? From what I gather, any downstream reading above 0.5V means there is less oxygen which means the cat is doing it's job, assuming it isn't high because of extra unburnt fuel. The voltage should also change more slowly downstream because extra fuel is absorbed by the cat when it is rich and then the injectors go back to lean it absorbed some extra fuel to catalyze when lean, which smooths out signal. If downstream varies a lot that means you are bypassing the cat or it isn't absorbing and/or catalyzing.

    Bruce Berquist likes this.
  7. joedirte

    joedirte Member

    Joined:
    Apr 19, 2012
    281
    58
    0
    Location:
    ohio
    Vehicle:
    2003 Prius
    Model:
    I
    Can this be a sticky?

  8. StayGreen

    StayGreen New Member

    Joined:
    Aug 29, 2014
    2
    0
    0
    Location:
    Ventura, CA
    Vehicle:
    2004 Prius
    Model:
    N/A
    My engine light came on yesterday and I got Code P0138, which indicates most likely cause is High Voltage Bank 1 Oxygen Sensor 2, but I note in the other possible causes it could be oil smoke in the exhaust. My car was just serviced at the dealer about two weeks ago and I noticed today that the oil level is almost a half inch above full. I haven't seen smoke in the exhaust, but I haven't been looking either. The day after it was serviced we spent three days driving around Kings Canyon and Sequoia Nat'l Parks. With all that climbing the light never came on. Is that enough extra oil to cause the engine to burn it?

  9. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,200
    6,482
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    1/2" is way too much. That might be an extra quart of engine oil. You need to have that excess amount drained out as soon as possible.

    The excess oil may be entering the intake manifold via the PCV hoses.

    depriusoto likes this.
  10. Buffmatt12

    Buffmatt12 Junior Member

    Joined:
    Jan 26, 2015
    4
    0
    0
    Vehicle:
    2005 Prius
    Model:
    N/A
    hey I had the same code pop up and it points to the rear oxygen sensor. I replaced the rear oxygen sensor and code still appeared. It turns out the front air/ fuel ratio sensor was malfunctioning and causing the rear sensor to show high voltage. So replacing Bank 1 sensor 1 is the fix in many cases. And I wish I didn't waste my money on the rear sensor but oh well lol.

  11. Mylar

    Mylar Member

    Joined:
    Mar 25, 2010
    163
    36
    0
    Location:
    Cincinnati, OH
    Vehicle:
    2019 Prius
    Model:
    Limited
    My check engine light came on today. Drove the car to Auto Zone, they said it was the O2 sensor. I'll most likely replace both sensors, my question is, does the inverter really need to come off in order to access the bank 1 sensor 1?

  12. kutcht1

    kutcht1 Member

    Joined:
    Nov 25, 2013
    305
    82
    0
    Location:
    Andover, Minnesota
    Vehicle:
    2008 Prius
    Model:
    N/A
    I have read that sensor 1 access can be done with removing the windshield wiper cowling area. For sure you do not need to remove the inverter. Be sure to spray the sensor thread area days prior to removal with PB blaster or something as it will not be a cake walk to remove. I had to use heat for my sensor 2 and that took awhile with good access.
    TomK

    Bruce Berquist likes this.
  13. Mylar

    Mylar Member

    Joined:
    Mar 25, 2010
    163
    36
    0
    Location:
    Cincinnati, OH
    Vehicle:
    2019 Prius
    Model:
    Limited
    The Check Engine light decided to go off all by itself. This is the second time in 2 years that it has come on, then gone off. Instead of changing both O2 sensors, I'm just going to replace the easy one for now and see if the light comes back on.

    Bruce Berquist likes this.
  14. kilimar

    kilimar Junior Member

    Joined:
    Aug 20, 2016
    48
    10
    0
    Location:
    Florida
    Vehicle:
    2010 Prius
    Model:
    II
    I don't suppose you could do a post of for the Gen3? :) It's probably fairly similar...

  15. blake9809

    blake9809 Junior Member

    Joined:
    Mar 21, 2023
    48
    5
    1
    Location:
    Minneapolis, Minnesota
    Vehicle:
    2002 Prius
    Model:
    SE
    good stuff thanks for the post. I have a gen 1 with a stolen cat and second 02 sensor is missing. Previous owner had a straight pipe welded in where the cat was and no second 02 sensor now. My question is does the second 02 sensor tell the computer to adjust fuel curve? or is the second 02 sensor just to warn the operator with a check engine light saying the catalytic converter is not doing its job?

  16. ronlewis

    ronlewis Active Member

    Joined:
    Dec 5, 2016
    937
    188
    1
    Location:
    texas
    Vehicle:
    2001 Prius
    Model:
    One
    Did you draw those pics too? Awesome.
