PriiDash(TM): Enhanced Instrument Panel / Data Logger - Now Open Sourced!

Discussion in 'PriiDash (TM)' started by 2009Prius, Jun 26, 2011.

  1. scotman27

    scotman27 Active Member

    Joined:
    Jul 25, 2012
    735
    81
    0
    Location:
    PA
    Vehicle:
    2001 Prius
    Model:
    One
    I cant seem to. the connector is recognized by autoenginuity, but it does not get picked up by my laptops, system

  2. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,917
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Thats a great pity, can you obtain a cheap ELM327 of Ebay I think over there in the US it will be $10-$15.

  3. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,917
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Frustrating your so close.

    John (Britprius)

  4. scotman27

    scotman27 Active Member

    Joined:
    Jul 25, 2012
    735
    81
    0
    Location:
    PA
    Vehicle:
    2001 Prius
    Model:
    One
    Yeah i agree. Iam thinking of picking up one of those Xhorse/techstream connectors. I heard they do everything techstream does but without the registration/subscription pert of it.

  5. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,705
    510
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    I don't think Techstream or AutoEnginuity connectors could work. You need an ELM compatible OBD-USB device. OBDLink SX is a relatively low cost option if you choose to stay away from the "clones".

  6. scotman27

    scotman27 Active Member

    Joined:
    Jul 25, 2012
    735
    81
    0
    Location:
    PA
    Vehicle:
    2001 Prius
    Model:
    One
    I will look into those. will those also work for this new techstream software?

  7. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,705
    510
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    No. Techstream needs a different kind of connector.

  8. scotman27

    scotman27 Active Member

    Joined:
    Jul 25, 2012
    735
    81
    0
    Location:
    PA
    Vehicle:
    2001 Prius
    Model:
    One
    Ok. does the obdlink SX allow me to get into the hybrid system of my car as well as abs and all that?

  9. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,705
    510
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    If you want to be able to talk to all the ECUs and perform dealer level services then just go with Techstream - that's the tool the dealers use. PriiDash only display and log some drive data, it does not do brake bleeding or zero point calibration for example.

  10. scotman27

    scotman27 Active Member

    Joined:
    Jul 25, 2012
    735
    81
    0
    Location:
    PA
    Vehicle:
    2001 Prius
    Model:
    One
    thats probably what im going to do. im going to try one of those chinese xhorse techstream programs as I heard they work exactly like techstream

  11. ccdisce

    ccdisce Active Member

    Joined:
    Oct 10, 2010
    259
    187
    0
    Location:
    Stone Mtn GA USA
    Vehicle:
    2008 Prius
    Model:
    N/A
    The mini vci devices from the East use a FTDI USB2.0 interface to a NXP Cortex(x) MCU driving a HS CAN and MS CAN Ports on the DLC3. The LIN Port is unpopulated on the one I have.

    The software supplied consists of the FTDI VCP Drivers and an unlocked version of Techstream but not all modules may be unlocked.

    The brake bleed funcion is enabled on the on I bought on the little testing I did on the wekend.
    I did use it to clear the Ucodes that were generated by my experiments on the CAN Bus and the misfire codes that were stored. It showed 3 misfires possibly over the past 123000 mi which I cleared also.

    dave77 likes this.
  12. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    Hi ccdisce,

    The Mini VCI that I bought 2 yrs ago does support K-Line. It seems that there has been a lot of cheap ones flooding the market recently.

    Disassembly of the fake mini VCI cable


    I suspect the K-Line was removed due to cost and also newer cars (starting from 2004) are not using them anymore.Your Gen2 has a mixture of K-Line and CAN so some functions will not work.

    FYI, my firmware ver. is 2.0.1 and the recent one is 1.4.1.

    Vincent

    dave77 likes this.
  13. ccdisce

    ccdisce Active Member

    Joined:
    Oct 10, 2010
    259
    187
    0
    Location:
    Stone Mtn GA USA
    Vehicle:
    2008 Prius
    Model:
    N/A
    Vincent,
    I did some more poking around on the one I bought and this is what I see:

    a. A ISO 1050 CAN PHY for the CAN Bus which is terminated in 120 Ohms (a no no)
    b. A Siliconix Si9241AEY K-Line Transceiver terminated in 510 Ohms
    c. Pads for a second transceiver for the L-Line

    Do you know if 1. the Gen2 use KWP2000 protocol with a CAN PHY
    2. if so the speed 1M maybe
    3. How is the BEAN Bus driven? via the Gatway ECU maybe?

    Winston.

    dave77 likes this.
  14. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    1. Nope, it uses the K-Line directly.
    2. 9600 baud.
    3. Pls refer to this link on BEAN Bus.

    Vincent

  15. ccdisce

    ccdisce Active Member

    Joined:
    Oct 10, 2010
    259
    187
    0
    Location:
    Stone Mtn GA USA
    Vehicle:
    2008 Prius
    Model:
    N/A

    Thanks for the link.

    Can the K-Line be used to talk to the devices on the BEAN Bus?

  16. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    Yes, K-Line (SIL on the DLC3) is not only connected to the devices on the BEAN Bus, it is also connected to many other CAN devices (for diagnostic purposes only) except HV ECU, ECM & Bty ECU.

    Vincent

  17. Blu-ray

    Blu-ray Blizzard Brigade #215

    Joined:
    Dec 22, 2012
    471
    198
    0
    Location:
    TampaBay, FL
    Vehicle:
    Other Hybrid
    Model:
    N/A
    Uh wow. I could never do this in my car. I get distracted enough with all the buttons and different displays! I can't imagine having this thing. I'd probably be in a car accident before I backed out of my parking space!

    Great work though. Neat to know there is stuff like this out there.

  18. ccdisce

    ccdisce Active Member

    Joined:
    Oct 10, 2010
    259
    187
    0
    Location:
    Stone Mtn GA USA
    Vehicle:
    2008 Prius
    Model:
    N/A

    Thanks Vincent.

  19. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,705
    510
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    2013-05 new release

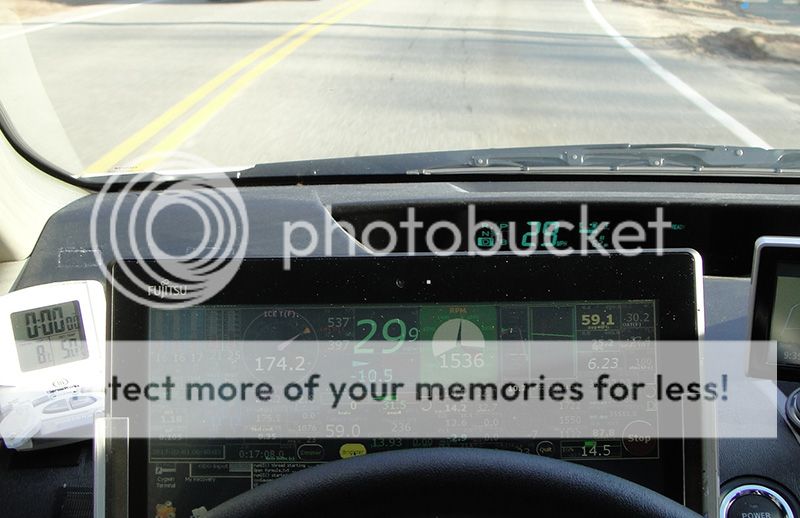

    This new version adds capability to read generic DTCs. The Gauge Window is changed to wide format. Sorry I haven't done much with the Lite version yet.

    [​IMG]

    [​IMG]

    connectorxp likes this.
  20. connectorxp

    connectorxp Avid mountaineer and rock climber

    Joined:
    Dec 18, 2008
    25
    1
    0
    Location:
    Bucharest, Romania
    Vehicle:
    2008 Prius
    Model:
    N/A
    Nice job, I managed to get hold of my netbook and installed Priidash, I downloaded an older version for Windows as the latest one refuses to work, with that Linux type runtime installed on it according to the instructions that came with Priidash.

    Some of the parameters aren't working, I'm still tweaking the connection as it's a Bluetooth chinese ELM clone.


    Love the way you managed that tablet in between the steering column and the dash, I'm thinking a way how to mount the netbook from the ceeling, near the light or get hold on a used 2003-2006 MFD and fiddle with it and a used PC motherboard.
