Hmm, I started writing this before #180 was posted ... guess I'll still ask. @mudder?

It seems two different risks have been mentioned here:

1. TMR's don't-try-this test mentions the risk of contacting the battery output terminals with the service plug removed.
2. mudder's #180 warning mentions voltage existing across the service disconnect terminals.

In a way, these aren't completely unfamiliar risks; they can also exist in any battery for which a P0AA6 is being reported. That's part of why Toyota officially says to always glove up to plug/unplug the service disconnect, even though people often don't bother. I hope people do bother if they are working on a P0AA6 code, even if they are more relaxed about it at other times.

And, of course, if the car could try to go READY with the service plug out (which P0A0D ought to prevent), then full battery voltage could appear across the service plug terminals (concern 2), because the + and − ends would be effectively joined then through the not-yet-charged inverter capacitors. And I suppose the soother does effectively connect even the far ends at all times, just through the Thévenin-equivalent impedance of a bunch of overlapping dividers.

I haven't calculated that effective impedance. I also haven't calculated the effective impedance of the path around the service plug, if you expose yourself to the voltage across the battery + and − ends (concern 1).

What I'm trying to get at is a rough idea of the current to which you could be exposed. This seems a little tricky to calculate (Thévenin-equivalents of some overlapping voltage dividers as well as whatever is contributed by the circuits surrounding and powering the opamps) and might be quicker to just measure.

Would it take long to just pull the service plug on a battery with a soother installed, then apply a few different resistances across the battery + and − ends, in series with an ammeter, and measure what current flows?

One might start with a resistance around the 100 kΩ of dry unbroken skin, and work down to lower resistances closer to 500 Ω like a wet or broken-skin path across the body. (What's the lowest resistance you'd say could be put across the battery + and − with the service plug out, without smoking the soother as in your video?)

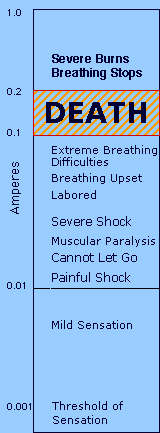

Then we could see where those measured currents line up on a scale like this one:



I agree with your test method. If someone wants to safely perform it, I'll comment on their findings.

With the service disconnect plug removed, the Signal Soother's Thevenin-equivalent is essentially a 500 ohm resistor in series with a ~35 volt source (i.e. QTY10 cells in series; specifically those cells in blades 4 & 5).

For completion, there are also a couple non-linear components that I'm ignoring (i.e. the opamp's power input and the zener diode, which is essentially 0 ohms once it breaks down). These are both in parallel with a 100 nF capacitor. You can essentially ignore all three components due to how the zener diode would behave once it avalanches (at ~36 volts).

So then worst case we're looking at ~400 mA current @ 250 Vpack, which is certainly 'yikes' territory.
