Proximity Notification System ( Noise Maker)

Discussion in 'Gen 3 Prius Main Forum' started by jaredy, Dec 15, 2013.

  1. jaredy

    jaredy Member

    Joined:
    Jan 4, 2012
    162
    3
    0
    Location:
    SoCal
    Vehicle:
    2011 Prius
    Model:
    Five
    Will the sound be turned off when shift is at : P: (parking) ?

    #1 jaredy, Dec 15, 2013
  2. Paradox

    Paradox Prius Enthusiast / Moderator
    Staff Member

    Joined:
    Sep 22, 2005
    29,110
    8,589
    201
    Location:
    USA
    Vehicle:
    2014 Prius v wagon
    Model:
    Five
    It is off when the car is not moving or going over ~15mph. So it is off not just in P, but even when stopped in D.

    #2 Paradox, Dec 15, 2013
    jaredy likes this.
  3. jaredy

    jaredy Member

    Joined:
    Jan 4, 2012
    162
    3
    0
    Location:
    SoCal
    Vehicle:
    2011 Prius
    Model:
    Five
    Mark,

    Would you like to help check if the noise is made when you turn on your headlights in P.

    #3 jaredy, Dec 16, 2013
  4. Paradox

    Paradox Prius Enthusiast / Moderator
    Staff Member

    Joined:
    Sep 22, 2005
    29,110
    8,589
    201
    Location:
    USA
    Vehicle:
    2014 Prius v wagon
    Model:
    Five
    It only makes the noise once the vehicle begins moving, the lights do not impact it.

    #4 Paradox, Dec 16, 2013
  5. David Beale

    David Beale Senior Member

    Joined:
    Jul 24, 2006
    5,963
    1,981
    0
    Location:
    Edmonton Alberta
    Vehicle:
    2012 Prius
    Also the noisemaker works in "R" as well as "D" and "B" (and probably "N"). But again, only if you are moving, and its' operation has no connection with the lights, horn, or most other systems on the car. ;)

    I know it works in "R" because - backing out of my back yard after loading up my telescope I back up past the neighbors garage, where they were working. I look over to see both, jaw dropped staring at Pearl S. As I go by I say "I believe it's about to hover". :)

    #5 David Beale, Dec 16, 2013
  6. jaredy

    jaredy Member

    Joined:
    Jan 4, 2012
    162
    3
    0
    Location:
    SoCal
    Vehicle:
    2011 Prius
    Model:
    Five

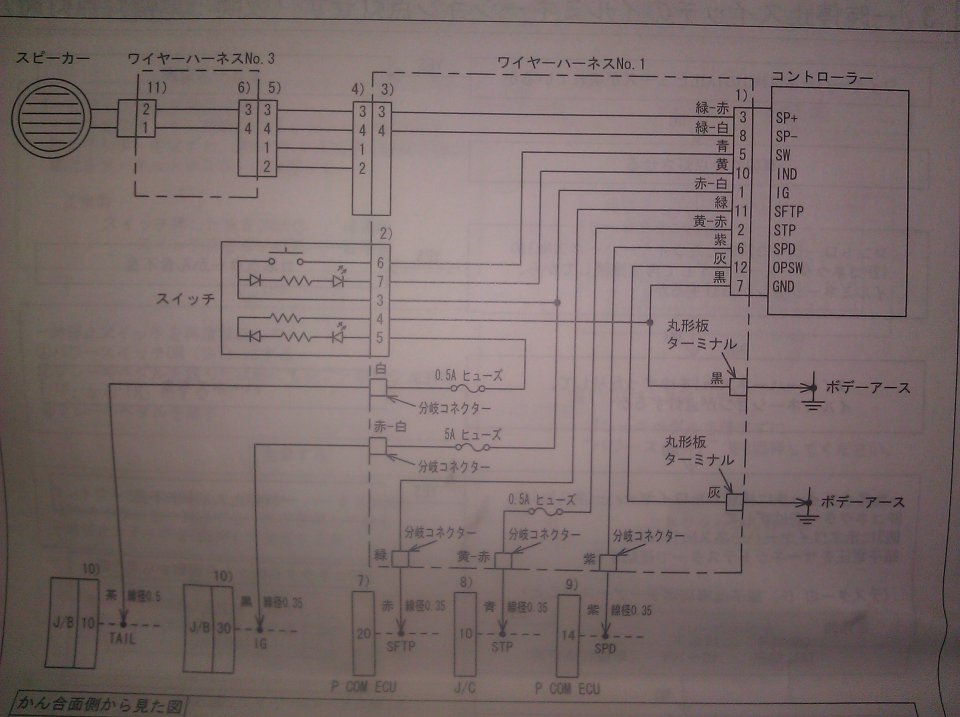

    show a diagram.


    Attached Files:

    #6 jaredy, Dec 16, 2013
  7. mrstop

    mrstop PWR Mode

    Joined:
    Jun 22, 2012
    742
    329
    109
    Location:
    Cincinnati, OH
    Vehicle:
    2012 Prius
    Model:
    Two
    Interesting. I'm wandering if this circuit could be tapped into for "parking proximity" sensors? I have been thinking about adding them for some time. However, I have been concerned about the reported false alarms which require people to manually turn them on or off. While it would be better if the speed was set to under 5 MPH or so, this may be a good compromise.

    #7 mrstop, Dec 16, 2013
  8. jaredy

    jaredy Member

    Joined:
    Jan 4, 2012
    162
    3
    0
    Location:
    SoCal
    Vehicle:
    2011 Prius
    Model:
    Five
    Speed Signal is ranged 10-16V.

    #8 jaredy, Dec 16, 2013
