remove center console?

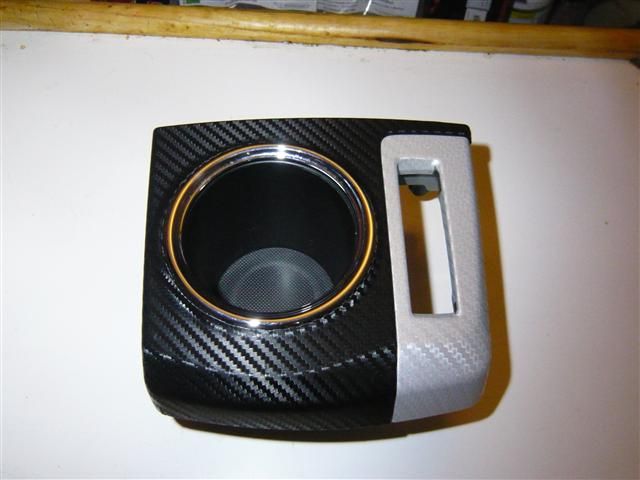

I only took the cup holder out to laminate (as seen below) and removed the drive mode switches which have a very short wire harness but it may run from the dash. You will have to remove the whole section including the front container where the second cup holder on the bottom slide out to.



I just bought a Prius v Three for mail delivery. I removed the center console today and it was fairly easy to do. It looks great as far as having room to drive from the right with my left leg over the middle. I will need to get some pedal extenders because the accelerator is really way down and tucked in close to the corner, but if you're driving from the middle you won't need extenders - but you probably will need to build some sort of support to sit on.

Removing the center console: there are four screws in the storage compartment underneath the little mat in there. There is one screw underneath the little mat in the front open area. On each side of the console way down in front where your feet go, are two small removable side panels. On one end they have extensions that slide into a white plastic piece attached to the car and on the other end they snap into the rest off the console. Pulling outwards (towards the doors) they will snap out fairly easily from the rest of the console and then the extensions can be slid out from the white pieces. Underneath these small panels there is one plastic snap on each side which holds the rest of the console to the front part of the car. (When removing the small panels, you may also pull these snaps out as well.) Now you can gently pull up and backwards on the console. (Opening the cup holder for the rear seats will give you a place to put your hand to assist in pulling.) If you have the buttons for the heated leather seats mounted on the front of the console, you can now disconnect their wiring harnesses.

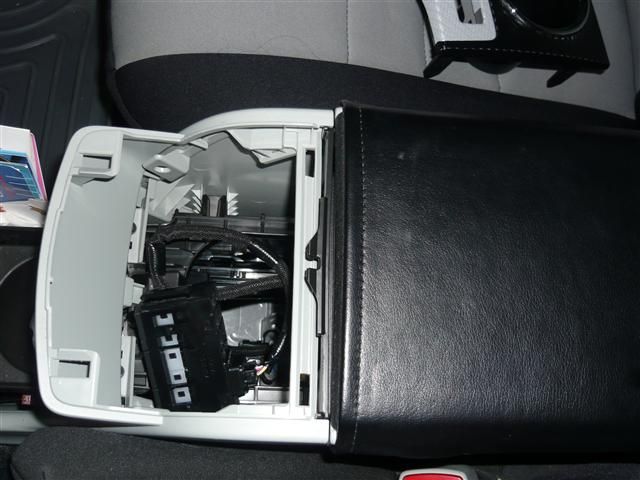

Now for the hardest part: before removing the console you will want to remove the cup holder and power buttons in order to disconnect the wiring harness. You will need to pull upwards but it will take quite a bit of force. In fact, you may want to do this first before removing the screws which hold the center console down. I referred to the pics posted by "tanasit" elsewhere in this thread to know what I should be pulling on. There are four plastic tabs holding the cupholder and power buttons on, but they don't snap out easily. Once they do, it's easy to disconnect the wiring harness for the power buttons, and if you follow the wiring harness down a little farther it is also connected to the console with a white plastic support which you can also snap out. (There is a second support attached to the wiring harness even farther down but this is attached to the car and not the console.) Now your center console should be completely free and you should be able to pull it up and backwards and remove it via the rear seats.

I'm sure all this is as clear as mud, but really it's not that difficult or complicated.
