replacing rear drum brake calipers and shoes

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by Anthony Park, Dec 17, 2018.

  1. Anthony Park

    Anthony Park Junior Member

    Joined:
    Jun 23, 2016
    24
    11
    0
    Location:
    Arizona
    Vehicle:
    2004 Prius
    Model:
    N/A
    What video should I watch? I was looking for a prius specific one but perhaps that isn't necessary.

    Here's one I thought was informative and well done, even for a non-prius vid.


    I also tried in vain to find a similar thread. Apologies since I know this has likely been answered and I'm justg an idiot.

    Cheers,

    Anthony Park

  2. Mendel Leisk

    Mendel Leisk Lapsed Cargo Cultist

    Joined:
    Oct 17, 2010
    30,168
    19,415
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    I hate doing drum brakes, say a full shoe replacement. It's like taking apart a watch, and the springs are tough and tricky. With the right tools it goes easy, I've been told... Maybe in another life I'd get the hang of it. I did it once, on a Honda, with the wrong tools: swore I'd just let the pros do it next time.

    The most I'll do is take the drum off, remove the clips that tension the shoes, holding them against the backing plate, lube the contact points with backing plate (typically 3 per shoe), carefully, you don't want to lube the shoes. Then put everything back together, done.

    For getting the drum off, there's usual a pair of threaded holes: if the drum is refusing to come off, you screw bolts into the holes, back and forth, until the drum is pushed off the shoes. Bolt size is M8x1.25.

    This might help too, 2nd gen Repair Manual excerpt:


    Attached Files:

    SFO likes this.
  3. Hamptgx

    Hamptgx Junior Member

    Joined:
    Dec 5, 2018
    47
    21
    0
    Location:
    Northern Illinois
    Vehicle:
    2007 Prius
    Model:
    Base
    It's not that bad just takes practice

    Mendel Leisk likes this.
  4. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    73,947
    30,535
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    and the right tools

    Mendel Leisk likes this.
  5. Mendel Leisk

    Mendel Leisk Lapsed Cargo Cultist

    Joined:
    Oct 17, 2010
    30,168
    19,415
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Watching YouTubes would help, nowadays, help you understand the tools and techniques. It was the dark ages when I (once) changed drum brake shoes. Ugh.

  6. Skibob

    Skibob Active Member

    Joined:
    Sep 14, 2018
    816
    385
    0
    Location:
    Northern California
    Vehicle:
    2006 Prius
    Model:
    N/A
    DANGER WILL ROBINSON. I did not look at the video
    but the Prius is an odd beast. It has battery powered brakes. Make sure you disconnect the 12volt battery and wait the specified time for the brake capacitors to discharge. Otherwise you will have problems.

    Mendel Leisk likes this.
  7. Mendel Leisk

    Mendel Leisk Lapsed Cargo Cultist

    Joined:
    Oct 17, 2010
    30,168
    19,415
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Yup, that's always step one. And before reconnecting the battery: pressure up the system with multiple brake pedal pushes, on the off-chance the system could detect excess brake pedal travel.

    Maybe goes without saying, but don't use a memory saver device.

    Skibob likes this.
  8. exstudent

    exstudent Senior Member

    Joined:
    Jul 11, 2009
    1,908
    647
    0
    Location:
    Torrance, CA
    Vehicle:
    2007 Prius
    All drum brakes are similar in design and activation. Differences between manufactures seems to be around where springs are located.

    Disengaging the return spring is a PITA! I can't see how mechanics can prevent the shoe from moving, causing the piston to move/dislodge, introducing air. When you work on it, you will see what I mean. The return spring is STRONG!!!!! A lot of force is required to disengage it.

    Right tools is also having Techstream to bleed the system; you have determined you need to replace the rear drum cylinder (not caliper). You should be replacing the brake hardware (hold down springs, return spring, tensioner spring) too.

    You should have access to a manual.

  9. Mendel Leisk

    Mendel Leisk Lapsed Cargo Cultist

    Joined:
    Oct 17, 2010
    30,168
    19,415
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    One thing, drum brake shoes last a long time. I resigned myself to just pulling the drum off once in a blue moon (official service interval :whistle:), lubing the contact points between shoe and backing plate, never needed to go further.

  10. Hamptgx

    Hamptgx Junior Member

    Joined:
    Dec 5, 2018
    47
    21
    0
    Location:
    Northern Illinois
    Vehicle:
    2007 Prius
    Model:
    Base
    .? Only tools needed are flat blade screwdriver or the angled flat blade brake tool and a good set of needle nose pliers.

    bisco likes this.
  11. Mendel Leisk

    Mendel Leisk Lapsed Cargo Cultist

    Joined:
    Oct 17, 2010
    30,168
    19,415
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring

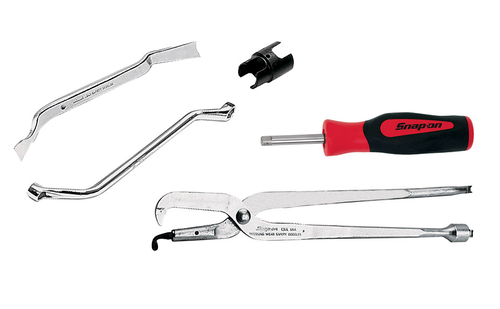

    That's one of these?

    [​IMG]

  12. Hamptgx

    Hamptgx Junior Member

    Joined:
    Dec 5, 2018
    47
    21
    0
    Location:
    Northern Illinois
    Vehicle:
    2007 Prius
    Model:
    Base
    The one on the left, they make slightly different ones. I recognize these, most you can get by without if you have a stocked toolbox, if not then u definitely need this.

    Mendel Leisk likes this.
