Results from Hybrid Automotive Grid charger, 2 batteries.

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by freshedie92, Feb 13, 2015.

  1. freshedie92

    freshedie92 Member

    Joined:
    Nov 3, 2014
    73
    37
    0
    Location:
    San Bernardino, California
    Vehicle:
    2006 Prius
    Model:
    Four
    Hello all,

    First off I just want everyone to know that I paid full price for my grid charger, and I am just your average consumer, im trying to make this as objective as possible.


    Old Battery:


    So after having used Hybrid Automotive's grid charger I can say at this point, imo it was worth the money. Whenever I had issues with the battery SOC fluctuating rapidly I would go home ASAP and charge it overnight. The battery was by no means fixed, I would say it does a good job at rebalancing. Problem is it can not repair a cell that has expired, or is incompatible. It is really nice because you can balance the battery in the very quickly ~1 day. The downside is you get very little feedback, one module could be toast but you will likely never know.

    Before using the grid charger my batteries SOC would fluctuate, on fwy exits the battery would "overcharge" and burn off excess. After charging/dishcharging the battery was performing better, including holding the charge from the fwy exit much better. Driving my car frequently also helped a great deal, eventually I was able to get a really good charge from the exit and drive almost entirely electric for 1.8 mi (6 min), ~6 lights mostly flat & slight downgrade.

    The reason I decided to switch the battery is: the battery would still burn off excess energy on the long fwy exit, and when the car sat over the weekend I would get a CEL and fluctuating SOC.

    When I took the battery out and looked at it all the cells my dad noticed that only a single module had different markings than the rest, this module had much higher voltage than the rest, while the others were mostly balanced.


    New Battery:


    I was fortunate enough to have met someone who is parting out their car in Fontana Ca, he sold me his problem Battery at a bargain (link to his ad at the bottom). His is an 08 with alleged 50k mi, I swapped out suspect modules with modules from my old battery. Charged it up for 24 hrs and I am still having issues, it is driveable however. Soon after start-up the battery SOC goes down to 1 bar, before I hit the freeway (5 min) the battery is all the way up to green. The battery would be normal on the fwy, on a long exit the battery would get to 8 bars, and begin to burn off excess energy. It will only drive a very short distance before the motor kicks on, and the battery will return to normal state quickly. It can only drive short distances on electric on parking lots. I am currently going to charge/disharge the battery to see how it affects performance. I will post back with results on monday when I am done.


    Data:

    I am going to upload my handwritten notes with an explanation because I am busy.

    Conclusion:

    I plan on seeing how much the new battery will improve to provide more data on the grid charger. But if this battery is not perfect what do you guys think I should to get a good battery?



    notes: I got shocked a few times while working with the battery, the worst was at the full voltage side with the orange plug inside, 1 Hand, it hurt but no burns scars etc. I found out you can check voltage "safely" with the battery in full series. Just check one module at a time and you only read that module. If you go from one end to the other opposite end you get the 200+ volts.

    jeff652 and Yakoma like this.
  2. freshedie92

    freshedie92 Member

    Joined:
    Nov 3, 2014
    73
    37
    0
    Location:
    San Bernardino, California
    Vehicle:
    2006 Prius
    Model:
    Four

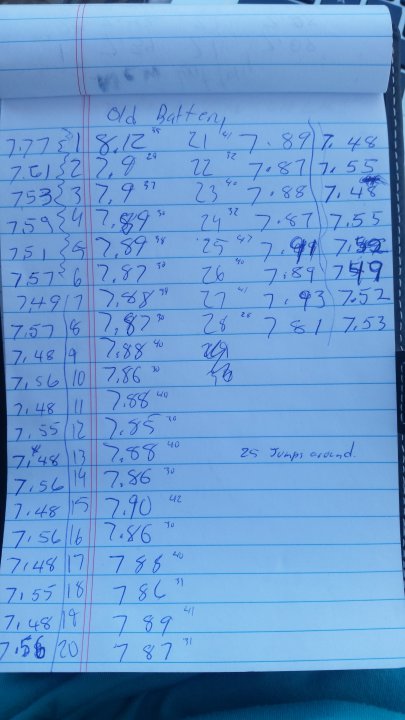

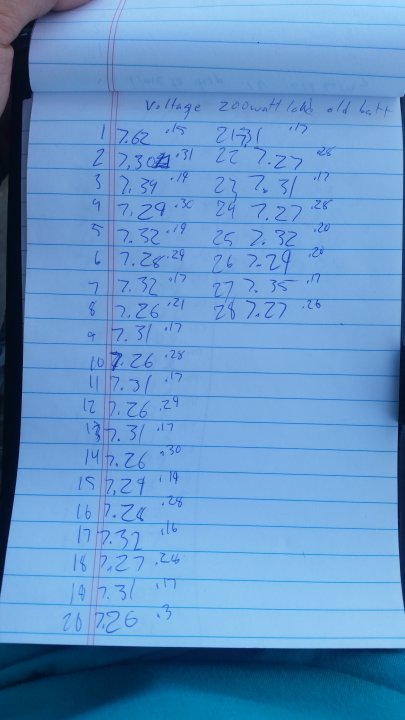

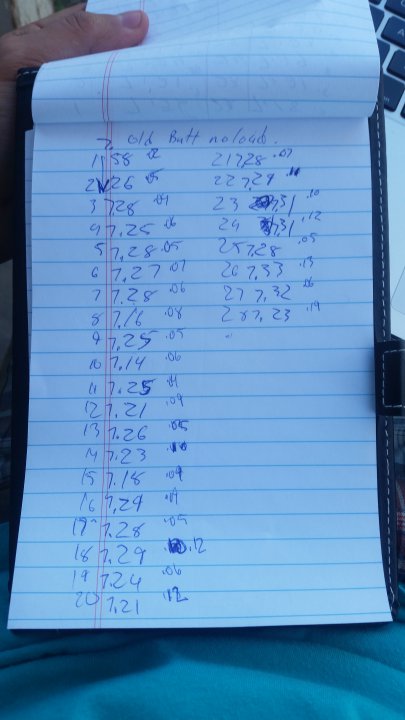

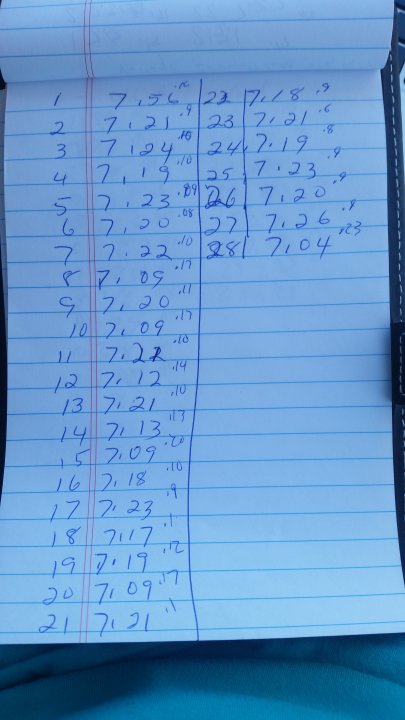

    20150213_144527.jpg Left most numbers are Voltage readings after 2x200w bulbs, middle numbers are the module number, to the right of that is initial V. The small numbers are the V difference. Follow that convention and a the rest should make sense. 20150213_144541.jpg Same convention, this is a second discharge following the first. 20150213_144612.jpg The large numbers are V after another discharge, the small numbers are the V increase after removing the load.
