ribbon cable between ac/heater circuit boards

Discussion in 'Generation 1 Prius Discussion' started by 2004SuprGlide, Dec 27, 2014.

  1. 2004SuprGlide

    2004SuprGlide Junior Member

    Joined:
    Sep 1, 2013
    13
    5
    0
    Vehicle:
    2003 Prius
    Model:
    N/A
    I recently replaced the center console due it being damaged whilst replacing tape player, while reinstalling the circuit boards I damaged the ribbon cable between the two circuit boards and the heater and ac do not work. Any advice on how or what I can do to repair or get a replacement part.
    Thanks in advance for any help.

    #1 2004SuprGlide, Dec 27, 2014
  2. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,323
    15,110
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV


    It's been a while since I was in there ... if I remember right, the cable is soldered to one of the boards, and mates to a ZIF connector on the other one?

    It's probably possible to find a similar ribbon cable at your neighborhood electronics or computer repair shop, and possible if tedious to unsolder the old one and replace it. Good and fast (but not cheap) would be to just get a replacement for the board it's soldered to (55935-47020?). In what way is it damaged? Maybe there's an easier fix. Pics?

    -Chap

    #2 ChapmanF, Dec 27, 2014
  3. 3prongpaul

    3prongpaul Hybrid Shop Owner, worked on 100's of Prius's

    Joined:
    Jul 18, 2010
    954
    716
    1
    Location:
    Boulder Hybids, Boulder, CO
    Vehicle:
    2006 Prius
    Model:
    N/A
    If possible, post a picture of what you need. I probably have one in my pile of used Gen1 parts. If I have it $10-$15 shipped priority mail.

    #3 3prongpaul, Dec 27, 2014
  4. 2004SuprGlide

    2004SuprGlide Junior Member

    Joined:
    Sep 1, 2013
    13
    5
    0
    Vehicle:
    2003 Prius
    Model:
    N/A
    Here is a picture of the ribbon cable attached to board


    Attached Files:

    #4 2004SuprGlide, Dec 28, 2014
  5. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,323
    15,110
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    I can't really see what's damaged. What happened?

    It looks as if you took a picture on your phone, and then posted a screenshot of the picture instead of the picture itself. If you could post the picture itself, I could probably see a lot more detail.

    -Chap

    #5 ChapmanF, Dec 28, 2014
  6. 2004SuprGlide

    2004SuprGlide Junior Member

    Joined:
    Sep 1, 2013
    13
    5
    0
    Vehicle:
    2003 Prius
    Model:
    N/A
    I put the dash back together, this is a picture from the web, the part that broke is where the cable is bonded to the plastic connector at the end of the cable.

    #6 2004SuprGlide, Dec 28, 2014
  7. 3prongpaul

    3prongpaul Hybrid Shop Owner, worked on 100's of Prius's

    Joined:
    Jul 18, 2010
    954
    716
    1
    Location:
    Boulder Hybids, Boulder, CO
    Vehicle:
    2006 Prius
    Model:
    N/A

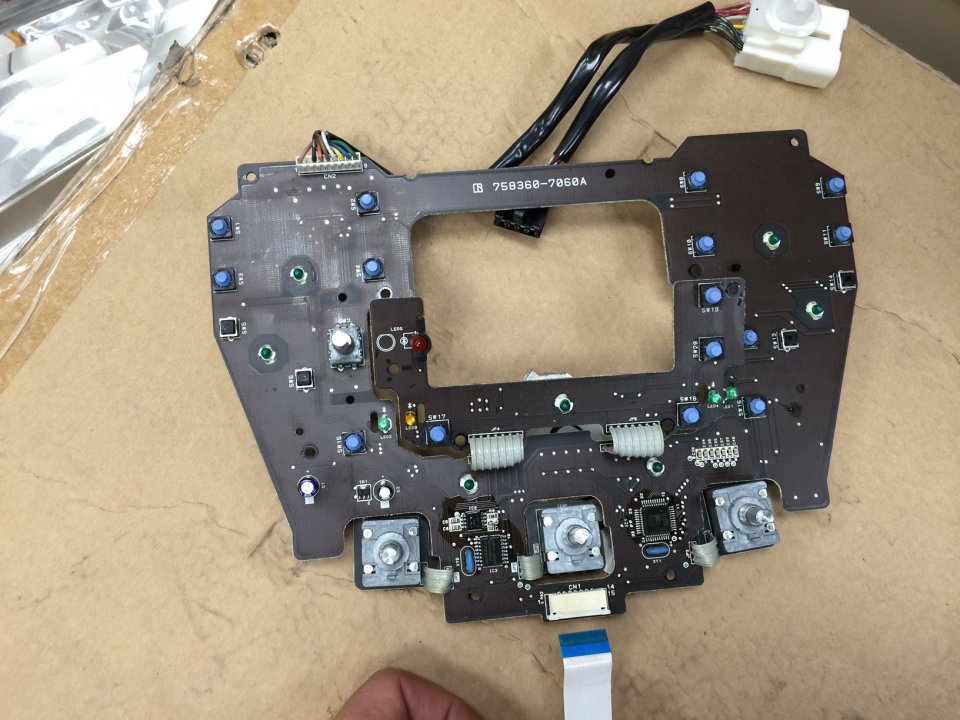

    I can send you an original OEM ribbon cable (properly removed) for $10 or the ribbon cable and entire control panel as shown for $20. Both prices include priority mail shipping. Pmail me if interested.

    #7 3prongpaul, Dec 31, 2014
  8. 2004SuprGlide

    2004SuprGlide Junior Member

    Joined:
    Sep 1, 2013
    13
    5
    0
    Vehicle:
    2003 Prius
    Model:
    N/A
    Paul I am interested, left you a message on your profile page, couldn't find an email address for you.

    #8 2004SuprGlide, Jan 2, 2015
  9. 3prongpaul

    3prongpaul Hybrid Shop Owner, worked on 100's of Prius's

    Joined:
    Jul 18, 2010
    954
    716
    1
    Location:
    Boulder Hybids, Boulder, CO
    Vehicle:
    2006 Prius
    Model:
    N/A
    You can use the "conversations" feature of this site to send private messages to members.

    #9 3prongpaul, Jan 2, 2015
