Rigid collars/stiff rings installed

Discussion in 'Prius c Accessories and Modifications' started by kevtan, Oct 26, 2013.

  1. kevtan

    kevtan Member

    Joined:
    Aug 31, 2013
    90
    30
    0
    Vehicle:
    2012 Prius c
    Model:
    Three

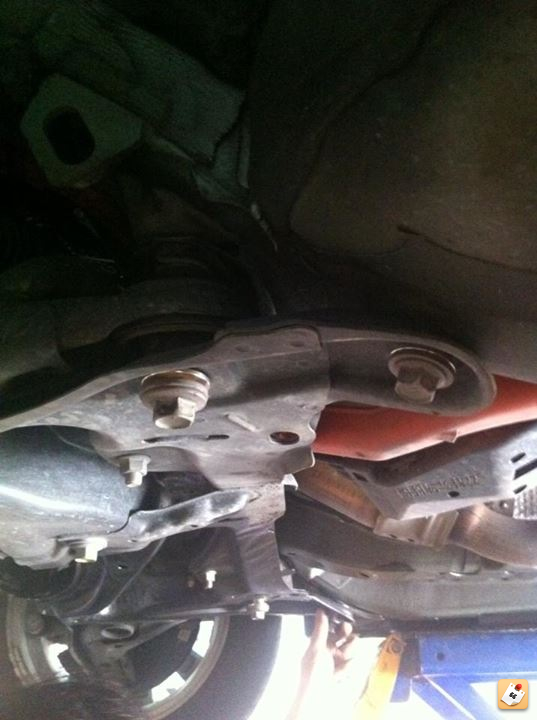

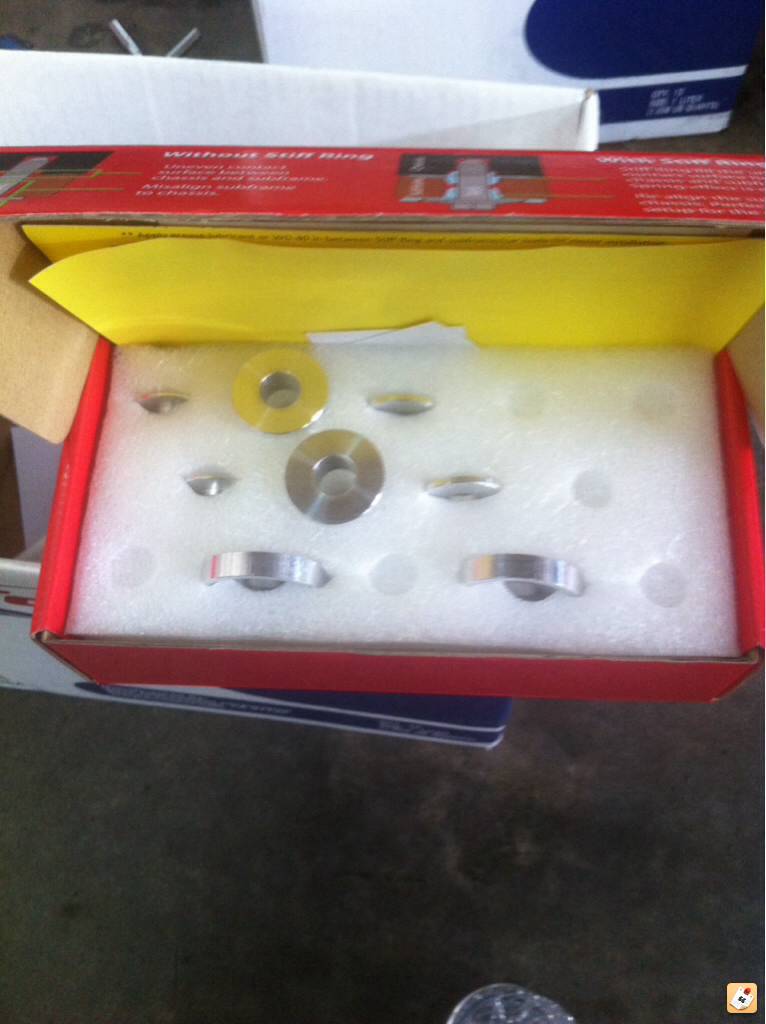

    Last 3 weeks just installed stiff rings on my C immediately the improve handling can be felt .. Less vibration going over rough road and speed hump , better steering feedback and control .. [​IMG][​IMG]

    Total of 8 pieces needed on our Prius C , 6 rings for front 2 for rear ...

    #1 kevtan, Oct 26, 2013
    RightOnTime likes this.
  2. priusCpilot

    priusCpilot Active Member

    Joined:
    Mar 6, 2012
    631
    208
    0
    Location:
    LA
    Vehicle:
    2012 Prius c
    Model:
    Four
    Thanks for the post! I'm reading about them now on the Stiff Ring site.

    Did you torq the bolts down or just tighten them? Wounder the spec?

    How hard was it to install? You have to lower the sub frame looks like?
    Were you able to do that on the ground with the car Raised?

    Is it car specific kits?

    #2 priusCpilot, Oct 26, 2013
  3. kevtan

    kevtan Member

    Joined:
    Aug 31, 2013
    90
    30
    0
    Vehicle:
    2012 Prius c
    Model:
    Three
    The shop installer do it for me . They just use air gun to tighten the bolt back .

    The installation is pretty much easy just need to raised the car up loosen the 3 bolts on front 3 on the left frame another 3 on the right frame .

    Yes it is car specific depend on car model for each kits some car needed 10 pieces for front 4-6 pieces at rear .

    My kits is from stiff rings which from my own country .. While rigid collars origin from Japan spoon .. For my kits it only cost about US dollar $100 in direct conversion . I don't know they can ship to the STATES . Can try visit their site Stiff Ring - Redefine Chassis Stability

    That times we have about 10 Prius c going for the install, mine is 1 1/2 year car and we also have 1 week car install it at the same times .

    All 10 of us are surprise on the improvement and we are sure it not placebo effect

    #3 kevtan, Oct 26, 2013
  4. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    looks pretty good. thanks for sharing.

    #4 B2FiNiTY, Oct 26, 2013
  5. kevtan

    kevtan Member

    Joined:
    Aug 31, 2013
    90
    30
    0
    Vehicle:
    2012 Prius c
    Model:
    Three
    This is another review on rigid collar we found before we all decided to go for it ..

    #5 kevtan, Oct 27, 2013
    priusCpilot likes this.
  6. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    very nice video! pretty cool to see spoon parts that will fit the C.

    #6 B2FiNiTY, Oct 27, 2013
  7. priusCpilot

    priusCpilot Active Member

    Joined:
    Mar 6, 2012
    631
    208
    0
    Location:
    LA
    Vehicle:
    2012 Prius c
    Model:
    Four
    Yea great vid! This is a mod that must be done!

    It looks like you loosen all the bolts to the sub frame then remove one bolt to fit the colliers in.

    Looks like it can be done with ramps and a floor jack?

    #7 priusCpilot, Oct 28, 2013
  8. kevtan

    kevtan Member

    Joined:
    Aug 31, 2013
    90
    30
    0
    Vehicle:
    2012 Prius c
    Model:
    Three
    I think using floor jack is not advisable . As it will give load to the chassis when u jack it up on 1 side .

    #8 kevtan, Oct 29, 2013
