Rusted hitch attachment bolt holes

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by priusrust, Oct 12, 2020.

  1. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    Went to attach curt hitch to my 2004 Prius....bolt holes (2 on each side) that go into Prius frame on one side rusted beyond use (threads gone, hole is wider than bolt) I've arrested underbody rust damage, but this was done prior to my ownership. Any ideas? Seems like I need to have new metal welded on. Any advice in this regard? Thanks

  2. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    I have a Curt on my 07.

    Those are big bolt holes that's alot of rust. How bad is the front suspension rotted out?

    Btw how old is the hybrid battery because towing hammers that battery hard and I mean HARD.

    If the hybrid battery is so so or original I can almost guarantee you it will push it to failure pretty quick so keep this in mind as you go forward with plans to tow. You need power to haul even a small trailer.

    When mine started to go south I was unable to tow.
    Unable to tow for about 4 years but just installed a new hybrid battery and back towing.

    If you plan on going ahead with welding the curt on i would think about also welding some anti cut anti theft rods to your cat converter so it does not get clipped since your under there welding.

    Go on YouTube search

    Prius theft

    lots of youtubes about cat thefts.

    #2 edthefox5, Oct 13, 2020
    Last edited: Oct 13, 2020
    priusrust likes this.
  3. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    Ya, the bolt holes are ok on one side.... on drivers side- not so. They are slightly bigger than the bolt. Suppose if the steel is still thick enough, I could redrill a slightly larger hole and retap for new threads (?) As far as I know , front suspension is ok. This actually may be connected to roof leak issue prius have. Both sides were rotted out with football size rust holes. Since fixed, but the water path may have passed over the hitch bolt holes (?) So, I don't plan to tow....plan to use it to hold carrier box. I don't think that should affect battery, as it will essentially be like one adult sleeping inside hatch door :) Interesting towing affects battery life. You would ::think:: the system would just lean more heavily on engine and it would not affect battery.... Curious about your new battery......which option did you take? I hear many contrasting opinions of best new battery options....

  4. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    I feel for you with the Curt. Even with pristine chassis holes its a major fight as the Curt really does not line up very well to those holes to begin with there jig when welding up those bolt on ears is terrible. Horrible fitment.
    .
    I had to do alot of drilling to oblong the bolt holes on the curt to mate up properly.
    very common compliant with this mount. It may work out better if you just weld the damn thing on.
    But once its mounted its really good.. About 10 years old now.

    The best deal I could find for new battery in this area is 2K's cylindrical battery retro fit of the existing battery in the battery box. They fit perfectly and the car runs like its new battery wise. Its $1600 out the door but I was able to lay off the old modules and a prolong charger I was using so recouped $ 500.

    Don't have time or energy to whack a mole it. Its mama's car had to get back on the road fast.

    priusrust likes this.
  5. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A

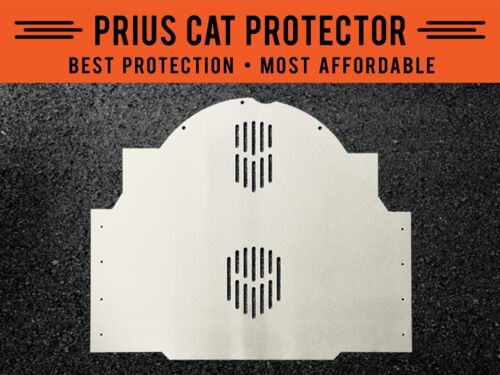

    Oh, so just yesterday had a catalytic converter shield put on. Got the cheaper knock off version to save $50. (a cookie-cut sheet of metal is a cookie-cut.....)
    I think I will go the welding curt on route.... if they can weld some steel on and add some threaded holes - that would be prefered. I'm a little spooked by having just anyone weld on a prius. Hear things about disconnecting 12 volt, traction b. AND computer (yikes!) ....may head to "Toyota certified" place first. depends on price.
    [​IMG]

  6. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    Oh good your on board with the cat theft they cant get you now with that plate the bastards.

    yeah there was a lot of talk about no welding on the G2 back in the day. Not so much now.

    Easy to protect the just unplug the 2 black wires at the top of the 12 volt assy just press the little lever on the white connectors and pull them out then remove the orange hybrid battery safety plug. Cant hurt you now.

    When you plug the orange safety plug back in just push it in then when you do that the lever automatically flips up then slide that lever straight down till it clicks. There's a little switch in the bottom there that pushing that lever down closes the switch telling the battery ecu the plug is locked and loaded.

    priusrust likes this.
  7. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    So I took the car to a Toyota certified body shop. The guy crawled under the car and said that I merely had to drill slightly larger holes-then rethread- with larger bolts and possibly drilling holes in hitch larger - which I knew. Then I heard him say, "oh-oh" from under the car. Apparently rust had eaten a hole in the square tubing (frame) further up on the tube that the bolts attach to. He said- bad news because no way to know how thick the remaining metal is and the hitch could fail. I told him I merely want to put 100lb carrier box on the hitch......he said it was my call. I've long since arrested any rust with 'Blaster' corrosion preventer.....but damage is done. Not sure what to do. Ideally, I'd like to inject some sort of steel epoxy into the hollow frame square tubing to strengthen it. Looks like creative welder is the only answer. No chance in hell I'm putting a container on the roof and watch my mpg plummet to '68 Cadillac gas mileage.

  8. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    Wow lots of rust. Seen a few broken springs in the rear from rust too.

    I would take pictures of everything under there. Post some here.

    I use Blaster on my cars too love it. If you start with a new car it will never have any rust.

    priusrust likes this.
  9. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    [QUOTE=" If you start with a new car it will never have any rust.[/QUOTE]

    ya but those 2nd generation prius.....hard to beat

    edthefox5 likes this.
  10. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A

    ok, three pics of the carnage. Pic#1, seems ok, surface rust, bolt holes have depth- drill them out- rethread -use next size bolt- no problem.
    pic#2: Oh-oh.....You can see one of the bolt holes, then the gaping rust hole (after the square tubing frame rises up a bit) towards the front of the car (from the bolt hole) pic#3: aforementioned gaping rust hole. What is interesting is that looking in the hole- you can see the top of the square frame tube and it is pristine- no rust at all. This is giving me the idea to weld in a support piece of flat bar over the bottom of the rusted out section and butt it up against the part of the frame that dips down and has the two screw holes. I say this because looking in, looks like just the bottom rusted.
    [by the way- ignore the foam on the side of the pictures- that was used to cover (with hardware cloth & sheet metal screws) a HUGE rust hole caused by classic leak above rear hatch.]

    IMG_20201017_174705.jpg IMG_20201017_175423.jpg IMG_20201017_175408.jpg

  11. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    question: at 2:27 into this video, the installers left hand knuckles are almost touching a small black cube attached to the frame....any idea what that is?

  12. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    That frame rust looks pretty bad I agree with the guy. Whats with al the foam?

    Not sure what that little box is I would bet its emissions related. Been lucky it hasn't failed knock wood.

    priusrust likes this.
  13. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    1) Foam: so, I had that notorious slight hairline fracture up near where both sides of hatch meet roof- . For years water pooled in both the 12 v battery well and also in the area directly opposite. (I wasn't car owner then). When I looked, there was literally a football sized rust hole. (along with battery dangling over road on other side with battery pan totally GONE. ) Anyway, I was pleased with solution. Treated rust: grind away, ospho, paint....then tacked in some 'hardware cloth'. Then merely sprayed some insulation foam that fills cracks and hardens. This oozed between hardware cloth and made a very solid solution. Rodents no problem, they may chew through foam, but would hit hardware cloth barrier.

    2) rust issue at hand. I agree it does look bad......but not quite as bad as first glance. For one- rust is outside in. (you can see pristine paint inside hole) So not like a rusted quarter panel where it is worse than it looks.....in this case it looks worse than it is. So....I picture a cut to size piece of 3/16 plate steel butting up against part that dips lower with bolt holes.....it will actually go under that bolt hole with square box attached (evap canister?) so I'll make a matching hole in plate steel and just use a new longer bolt.

    3) my problem: welding. I've read so many opinions I'd love a knowledgeable straight answer. MIG welding a prius one must be careful. Disconnect 12 V. and hybrid battery. However, I also read that you must disconnect computer??? Some say yes, some say no. So my plan of action is to make a little cardboard template and have a patch tacked in. I'd LOVE to hear an authoritative answer on prius welding and what you must disconnect exactly.


    Attached Files:

  14. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    Oh lordy that rust damage.

    Back in the day heard you cant weld on a G2 many times but there sure is alot of welding going on with all the cat theft. So I do not know.

    Unclick the 12 and pull the orange safety plug?

  15. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    ya.....easy enough.....it's the disconnect computer part that worries me....... I may just fabricate the 3/16 plate steel patch, then try to have a toyota certified auto body place weld it on. They'll want $$ though.

    Yes rust damage.....could have had badgers nesting inside.

  16. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    Overthinking this.

    Why not just pop rivet a thin gauge cover on that hole. Doesn't need to be welded its not going to sea although it looks like it has.

    Then lose the spare tire and mount the battery in its hole. Just extend those 2 small gauge black leads that are plugged into the top of the 12 volt post so they reach and then make your chassis ground connection where the battery sits with a bolt through the floor.

    Theirs 2 black wires one is thick thats the main B+ line to the front fuse box. That must be the same size or bigger gauge. The other smaller line is the sensing line to the inverter. That's the charging line.

    Get a battery mount box mount it in the hole the spare sits in.Put the spare in the back seat with a cover on it. Done.

  17. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    its not going to sea although it looks like it has.
    Jeez Ed, good thing I'm not sensitive about my prius' feelings. :LOL:
    Ok....so I think different issues are getting mixed up. My prius had huge rust holes in battery well and opposite side- those are all taken care of. The only issue now, is the pics I've posted above (as full images, not attachments). This is the prius frame in the area that a hitch would be attached. The rusted hole puts the integrity of the area in question (holding a cargo box). So......thinking of crawling under there, and pressing/ molding a piece of aluminum foil around the damaged frame. From that 'mold' I can make a little of cardboard template of the 3/16" plate steel patch I want mig welded in place to add strength and not have me constantly looking in rear view mirror to see if cargo box has snapped off and caused a 16 car pile up on the highway behind me. :sick:
    The only 'hitch' in the plan is the mystery around prius and welding. No plans to fry my computer system ....so I'll likely bite the bullet and take it to a 'Toyota certified' body shop. They will know what to disconnect. ::If:: someone new for sure it was just both batteries to disconnect...then I would have it done for much cheaper. I'm attaching (hopefully) one of those stowaway cargo boxes.


    Attached Files:

    edthefox5 likes this.
  18. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    So....got some definitive weld info for Gen 2s...... Like Ed said: disconnect the 12v, then pull the orange safety plug on traction battery. THEN wait 15 minutes. Also, if any computer parts within a foot of weld area- disconnect them. That's it.
    They did an ok job.....still not 100% sure hitch will hold. In pics you can see a 'cap' that was spot welded to frame - this cap has the two hitch bolt attachments. I'm concerned rust got in between cap and frame and compromised spot welds....if so, my reinforcement is useless. one way to test- hook up hitch and jump on it .....


    Attached Files:

    edthefox5 likes this.
  19. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,795
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    That looks pretty cool. Yeah see if it does ok with the jump test. Really wail on it. Theres alot of bending torque going on with that hitch I know that for sure jeez it really bangs around back there pulling an 8 foot uhaul but the much lighter trailers that are basically just wired baskets type there much lighter but wow do they bounce around and bang really loud unloaded and pull hard on the hitch unloaded.

    So alot of torque on a tow hitch with this car. Lots going on back there.

    Whats really surprising thing is if its a good load on the trailer you have absolutely no regen braking you are strictly on the really shitty hydraulic brakes only. Its really scary and you must be aware of that.
    This car is definitely not designed to tow. No balls at all.

    priusrust likes this.
  20. priusrust

    priusrust Member

    Joined:
    Feb 10, 2018
    171
    63
    0
    Location:
    MA
    Vehicle:
    2004 Prius
    Model:
    N/A
    So my plans are to attach a 'stowaway 2' swing out hitch cargo box. (1-1/4" hitch attach) The tongue wt on my curt hitch bracket is 300 lbs. The hitch bracket and hitch will be close to 100. Another 100 -150 in the box. .......Hope it holds. A lot of bouncing weight on 4 rust- permeated bolt holes... Prefer these hitch boxes to roof boxes - they don't mess with gas mileage as much. Knowing me, the hitch weld will hold...all will be fine and dandy...then I'll forget about it, and crush it into a tree backing up :)
