[SOLVED] P0401 code....

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by Atari, Jul 18, 2019.

  1. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    Or maybe I should say [SOLVED....???]

    What's wrong with this picture?...

    [​IMG]

    #1 Atari, Jul 18, 2019
    Last edited: Jul 18, 2019
  2. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,705
    48,947
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    missing lite bulb?

    #2 bisco, Jul 18, 2019
    Atari likes this.
  3. Ed Beaty

    Ed Beaty Active Member

    Joined:
    Jul 13, 2018
    334
    309
    0
    Location:
    Salt Lake City
    Vehicle:
    2010 Prius
    Model:
    IV
    Nicely focused.....on the asphalt. :p

    #3 Ed Beaty, Jul 18, 2019
    Raytheeagle and Mendel Leisk like this.
  4. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    That's what I WAS thinking, that it was missing the element -- but now I'm not so sure. I guess I'll stop by Toyota and see what the part actually looks like for the Prius. Seems like on new MAP sensors, it is missing for Prius (so mine may be OK) but on other Toyota vehicles using the same MAP part package, an element/bulb is in there inside the cage.

    #4 Atari, Jul 18, 2019
  5. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    You may not call me for your wedding photos, but you might call me if your "just married" vehicle breaks down on side of road? :p

    #5 Atari, Jul 18, 2019
    RMB, Raytheeagle and Ed Beaty like this.
  6. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,676
    38,219
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Yeah there should be a little gizmo in the cage, looks like a resistor. I might be able to dig up a pic.

    They're not cheap btw, well over $200 (US).

    #6 Mendel Leisk, Jul 18, 2019
  7. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V

    Check it out...

    Fits 2010-2013 Toyota Prius MAP Sensor Denso 47542XC 2011 2012 1.8L 4 Cyl | eBay

    (for those clicking the link a year later when this ebay auction is long gone, it depicts a NEW 2010-2013 MAP sensor without an element inside the cage)

    #7 Atari, Jul 18, 2019
  8. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    At 16 minutes in, NutsAboutBolts removes the MAP sensor. You only get a few frames to see inside the cage, but it looks empty here too...



    @NutzAboutBolts

    #8 Atari, Jul 18, 2019
  9. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,676
    38,219
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    I couldn't find a pic with the sensor in view, but pretty sure this is the back, with numbers. One hole is for hold-down bolt, the other for register pin:


    89421-52010

    #9 Mendel Leisk, Jul 18, 2019
    Last edited: Jul 18, 2019
  10. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    "Part Number "89421-52010" was found for Toyota, but we could not verify the part fits the selected vehicle."

    Probably fits Highlander though... and that part number definitely has the element in it.

    #10 Atari, Jul 18, 2019
  11. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,676
    38,219
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring

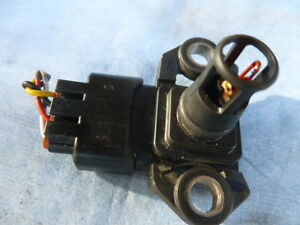

    Just googling, mine looks like this:

    [​IMG]

    #11 Mendel Leisk, Jul 18, 2019
  12. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    I will stop at Toyota on lunch (soon) and snap a pic of the new part (if they can even figure out what it's called on the 2010)

    #12 Atari, Jul 18, 2019
  13. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    1,417
    1,525
    38
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    Rock auto shows a sensor with the resistor wire in place, but it says up to 10-2009, the sensor for 11-2009 and up shows no resistor wire. So the plot thickens so they say. LoL

    #13 cnc97, Jul 18, 2019
  14. wheezyglider

    wheezyglider Active Member

    Joined:
    Mar 12, 2011
    247
    177
    0
    Location:
    SF Bay Area
    Vehicle:
    2010 Prius
    Model:
    Five
    I know that my 2010 has the element, but when I went to reassemble our 2012 I was shocked to see the element missing. I did a similar image search and figured maybe this was an updated version. So I just put that MAP sensor back in the 2012 and it has been running fine.

    #14 wheezyglider, Jul 18, 2019
  15. RightOnTime

    RightOnTime Senior Member

    Joined:
    Sep 21, 2012
    745
    1,614
    183
    Location:
    Kidnapped in OC, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    From cleaning this MAP sensor at the shop, I noticed there are at least 2 different versions for the 2010 - 2015 Toyota Prius.

    Worse one that I dealt with occurred when the resistor was clogged up with oil gunk and I had to take a small tool to clean it out


    iPhone ?

    #15 RightOnTime, Jul 18, 2019
    Raytheeagle likes this.
  16. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    UPDATE:

    NEVERMIND THE MAP DISCUSSIONS...


    It was the magnet and/or spring INSIDE the EGR...

    I bought EGR and cooler today from some nice guys in Rancho Cordova (Delta One Auto Dismantling 916-701-5911) and only had to use the Magnet, Spring and Cap. Probably could have used the old cap....

    [​IMG]

    Image above is from this video from John Caleb Warren's youtube channel:



    Long story short the magnet on mine, when wound all the way down, would STICK and not automatically unwind like the "new" one would. So rather than go through the hassle of removing the whole EGR and cooler (which I know are very clean)... I tried replacing just the magnet, spring and cap.... and it WORKED! :) No more P0401 after more than 35 miles after a reset.

    #16 Atari, Jul 20, 2019
    Prius_Angie, SFO, Robert Holt and 2 others like this.
  17. Raytheeagle

    Raytheeagle Senior Member

    Joined:
    Jul 1, 2016
    11,251
    15,476
    0
    Location:
    Bay Area, California
    Vehicle:
    2019 Prius Prime
    Model:
    Prime Plus
    That ones off of recycle road too:).

    That makes three good sources of salvage parts there:

    • HP Motors (they have aisle after aisle of Prii)
    • Benzeen Auto Parts (not as extensive, but they have stock)
    • Delta One Auto Dismantling (pretty sure they were Green Earth Auto Dismantling)
    Glad you got it sorted(y).

    #17 Raytheeagle, Jul 20, 2019
    SFO and Atari like this.
  18. Atari

    Atari Member

    Joined:
    Feb 23, 2008
    84
    47
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    V
    An update to the update...

    I was curious exactly how the magnet thing had failed, so I played with the failed one a bit more, lubricated the bearings, tried a bunch of things. I'm pretty sure what happens is the plastic THREADS inside the magnet get damaged and allow the magnet to "jump" off track of the threads and screw on farther than it should allow, which allows the magnet to get tight enough to where it does not automatically unwind itself.

    TLDR: plastic threads inside magnet get stripped.

    If you want to go to dismantler prius EGR, you now know what to test to make sure the EGR works -- not just the plunger/valve, but also open it up and make sure the magnet unwinds on its own and doesn't get stuck.

    #18 Atari, Jul 22, 2019
    Last edited: Jul 22, 2019
    Prius_Angie, SFO, wheezyglider and 1 other person like this.
  19. ASRDogman

    ASRDogman Senior Member

    Joined:
    May 29, 2018
    5,898
    3,162
    0
    Location:
    Florida
    Vehicle:
    2010 Prius
    Model:
    Two
    You can get to that nut with a SnapOn 1/4 drive with a wabbly extension. You don't need to remove the wiper assembly.
    When I cleaned my egr circuit I loosened and removed everything I could easily access before removing the wiper assembly.
    That egr cooler was clogged and should have been removed and cleaned. He could have used either carb or brake cleaner
    to clean and loosen the egr valve. Then he only needed to replace the magnet, if that was bad.

    #19 ASRDogman, Jul 22, 2019
