SQ sound system in a 2020 Prius Base

Discussion in 'Gen 4 Prius Audio and Electronics' started by doitor, Aug 23, 2022.

  1. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Sweet.
    How south are you going?
    I live just across the border from Hidalgo/Mcallen.

    J.

  2. Chris Wolfgram

    Chris Wolfgram Active Member

    Joined:
    Oct 20, 2019
    412
    167
    0
    Location:
    Sacramento CA
    Vehicle:
    2019 Prius
    Model:
    LE
    As South as it gets :) South Padre Island, but from there, over to SE Arizona, so I could really take any rout.

  3. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Awesome.
    Im sure we can make it happen.

    J.

    Chris Wolfgram likes this.
  4. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Weekend updates.
    Front stage is done.
    Amp rack wiring.
    Rack 5.jpg
    Rack 9.jpg
    Rack 12.jpg
    Rack 14.jpg
    J.

  5. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Yesterdays progress.
    Finished the distro blocks mounting surface.
    Rack 15.jpg
    Rack 16.jpg
    Started reasembling the hatch.
    Rack 18.jpg
    Test fitting the amp rack.
    Rack 19.jpg
    It will be held in place with threaded inserts rivets into factory holes and bolts.
    Rack 20.jpg
    Side panels in.
    Rack 21.jpg

  6. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Amp rack is in, bolted and wired.
    Rack 25.jpg
    Rack 26.jpg
    Rack 27.jpg
    Rack 28.jpg
    And it came alive yesterday for the first time.
    Rack 22.jpg
    Rack 23.jpg
    Rack 24.jpg
    J.

    thomassster likes this.
  7. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Yesterdays report.
    Built a temporary 1.4 cubic foot sub box out of MDF.
    Want to build a fiberglass box for the corner of the trunk, but my fiberglass skills need a lot of work and Im taking the car this weekend for a show.
    SUB 8.jpg
    SUB 9.jpg
    Also ran my first Dirac tune last night and Im really liking the results.
    There´s a learning curve for sure, but the quick tuning guide in this forum makes it a pretty straightforward job.

    J.

    thomassster likes this.
  8. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Yesterdays report.
    Version 1.0 of Proyect Ubers SQ is done.
    Finished the hatch area.
    First carpeted the amp rack cover.

    RACK 30.jpg

    RACK 31.jpg
    With the OEM carpet on top.
    RACK 32.jpg
    Amp rack with hinges.
    RACK 33.jpg
    Spare tire an tool acces with hinges. Will have the jack and tools on the sides.
    RACK 34.jpg
    Temporary sub box in.
    RACK 35.jpg
    Hatch cover on.
    RACK 36.jpg
    J.

    thomassster likes this.
  9. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    First DIRAC tune.
    Followed the "Quick tuning guide" on DIYMA forum which made the process a lot easier.
    Horizontal lines are 10db scale.
    This is the tweeters graph.
    Left=Purple
    Right=Green.
    Corrected response under yellow solid line.
    Used a x-over at 1 khz pre-Dirac, but this tweeters can play pretty low.
    Have them playing from 3 khz and up with 24 dB LR high pass.
    DIRAC TWEETERS.jpg
    This is the midrange graph.
    Left=Yellow
    Right=Blue
    This speaker could play from 100 hz up to 6 khz in my install.
    Corrected response under yellow solid line.
    Have them playing from 320 up to 3 khz and up with 24 dB LR on both ends.
    DIRAC MIDRANGE.jpg
    This is the mibass graph.
    Left=Yellow/Orange
    Right=Blue
    This speaker could play from 60 hz up to 5 khz in my install.
    Corrected response under yellow solid line.
    Have them playing from 80 up to 320 hz and up with 24 dB LR on both ends.
    DIRAC MIDBASS.jpg
    This is the subwoofer graph.
    This speaker could play from 16 hz up to 100 hz in my install.
    Corrected response under purple solid line.
    Have them playing from 80 with 24 dB LR low pass.
    DIRAC SUB.jpg
    Gains and delay settings.
    DIRAC DELAYS.jpg
    Im pretty impressed with the results you can get with the Mini DSP C8-12 DL and Dirac.
    In 20-30 minutes it left the car sounding pretty good and it still has a lot of potential.

    J.

    #29 doitor, Dec 2, 2022
    Last edited: Dec 2, 2022
  10. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Took the car this weekend to the Monterrey Money Round event. 16 of the top cars in Mexico all vs all, no rules, 4 judges (including Richard Papasin and Ruperto Aguilar).

    The top 5 places where pretty close.
    1. 161.5
    2. 160.5
    3. 160.375
    4. 160.25. Me.
    5. 160.125

    Gave close to 50 demos with great feedback.
    Now its time to let the speakers break in before the next tune and keep working.

    MMR 2022.jpg
    MMR 2022 2.jpg
    MMR 2022 3.jpg

    J.

  11. ReVeNgE

    ReVeNgE New Member

    Joined:
    Mar 21, 2023
    2
    0
    0
    Location:
    IN
    Vehicle:
    2018 Prius c
    Model:
    Four Touring

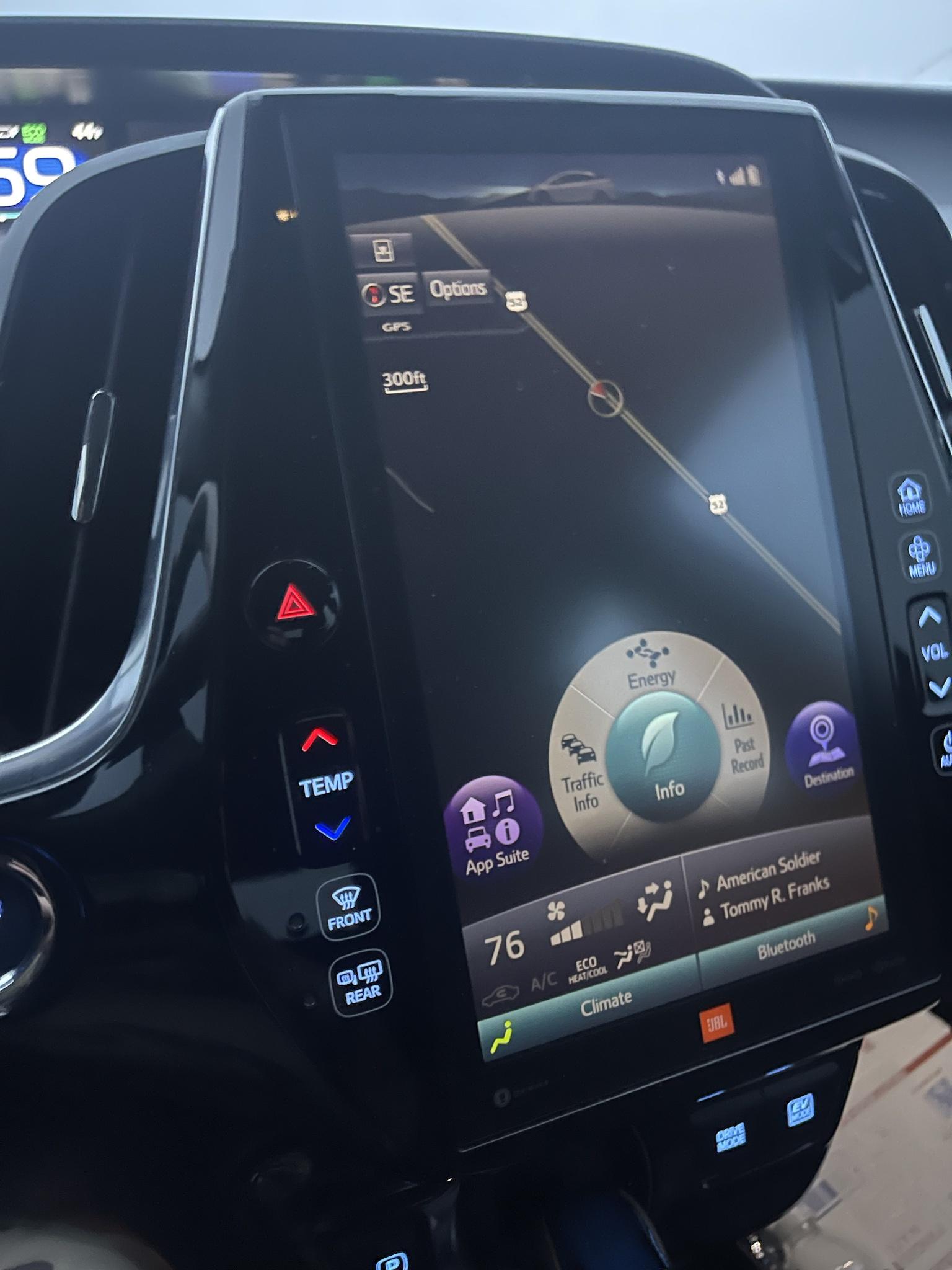

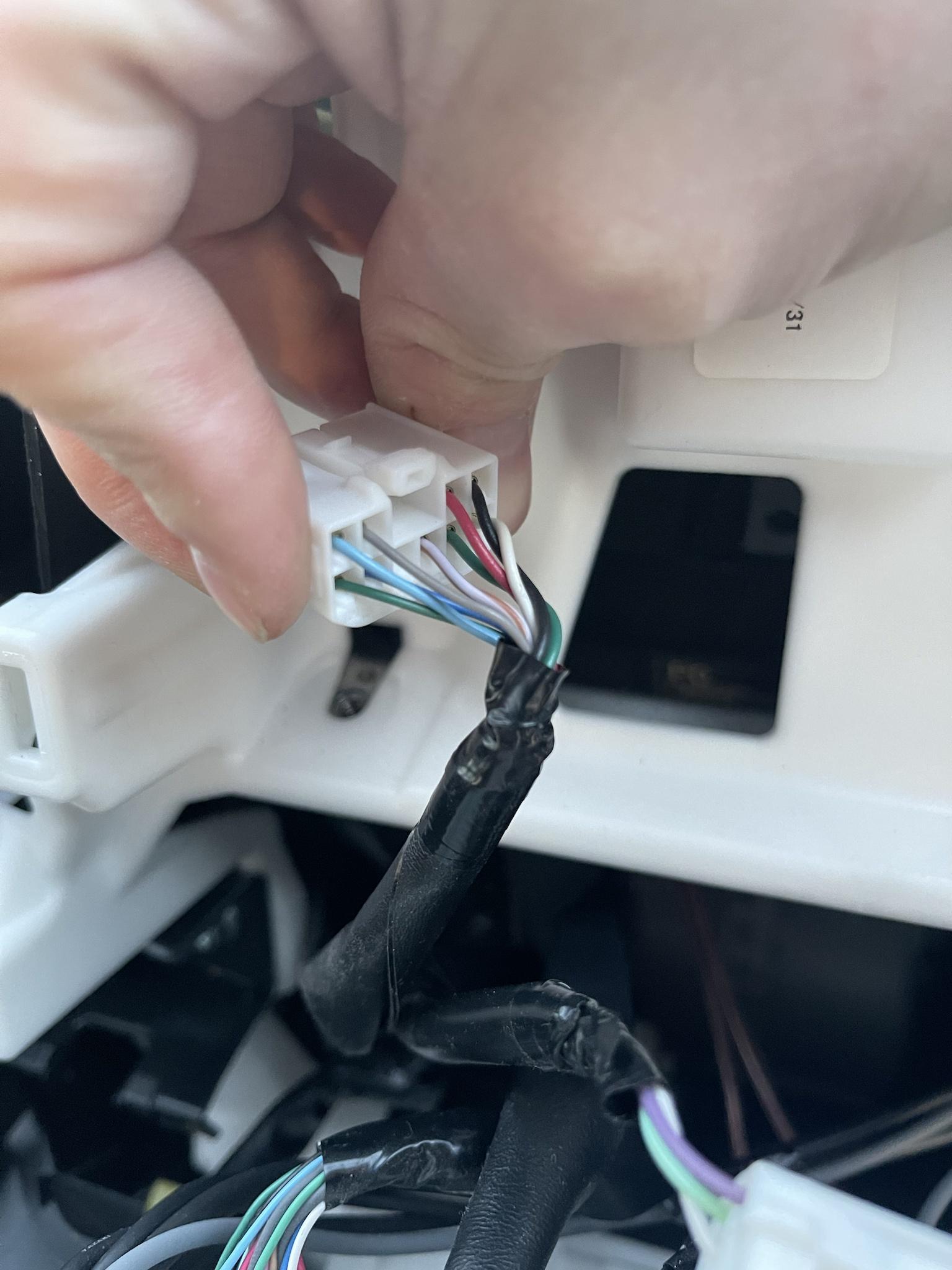

    I’ve been trying to find a wiring pinout for the 10 pin on this head unit. I have the same dash and I’m looking to just tap into the 10pin with a line output converter to send RCA to my 350w amp and 12” subwoofer. I can’t for the life of me the pinout online. I don’t want to splice into it until I know what I’m cutting into. Do you know which wires go where?
    [​IMG]
    [​IMG]

  12. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Hi.
    I paid the two day sibsciption to the techinfo site and downloaded all I found for my car.
    I didnt remove the head unit for the install. Got the high level signal from the dash speakers and can also get it from the b-pillar for the rears.

    J.

  13. doitor

    doitor Junior Member

    Joined:
    Jun 8, 2022
    28
    42
    0
    Location:
    Mexico
    Vehicle:
    2022 Prius
    Model:
    LE
    Took the car to its competition debut in Aggieland (College Station, Texas) this weekend.
    Some amazing cars and even more amazing people.
    Had a chance to make a lot of new friends and hang out with some old ones.
    Got to listen to a bunch of the top sq cars in the US.
    Also managed to win some trophies.
    Aggieland 2023.jpg

    thomassster likes this.
  14. KRDucky

    KRDucky Junior Member

    Joined:
    Mar 20, 2023
    28
    8
    0
    Location:
    US
    Vehicle:
    2018 Prius
    Model:
    Two
    I'd be interested to see how one would go about swapping the base 6" stereo with the navigation stereo and bezel.
