Stainless Steel Rear Bumper Protector with LED install help

Discussion in 'Gen 3 Prius Accessories and Modifications' started by zvw30yuki, Aug 10, 2013.

  1. zvw30yuki

    zvw30yuki Junior Member

    Joined:
    May 15, 2013
    11
    17
    0
    Location:
    California
    Vehicle:
    2010 Prius
    Model:
    III

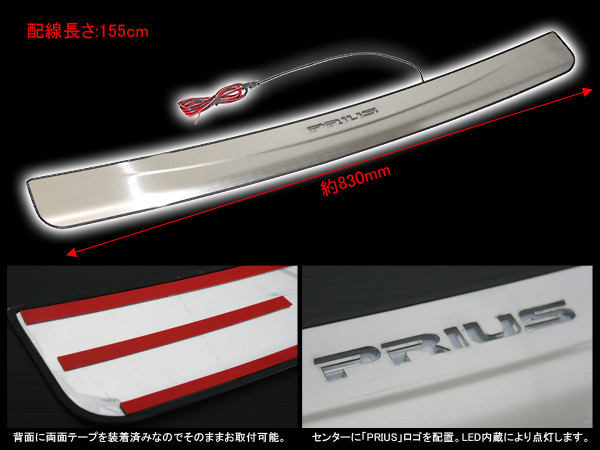

    Hello forum. I'm hoping someone can help me on the electrical wiring for this install. I purchased a rear bumper protector with LED from Japan. It came with no instructions. I looked all over the forum and unable to find anyone with this accessory, only the non LED version. Anyways the protector has a cable connector and a additional wire extension. There are only two wires. RED and BLACK. I'm planning to tap into the trunk light. I pryed the trunk lamp today and found a WHITE and RED color wire. My question is which wire should I tap into? My guess is tap RED to the RED trunk light wire, and BLACK to ground? If anyone can provide some expertise would be greatly appreciated. Thanks in advance. Below is a photo of the LED bumper protector.


    Attached Files:

  2. NoMoreNow

    NoMoreNow Member

    Joined:
    May 13, 2013
    167
    102
    0
    Location:
    SF Bay Area
    Vehicle:
    2013 Prius
    Model:
    Two

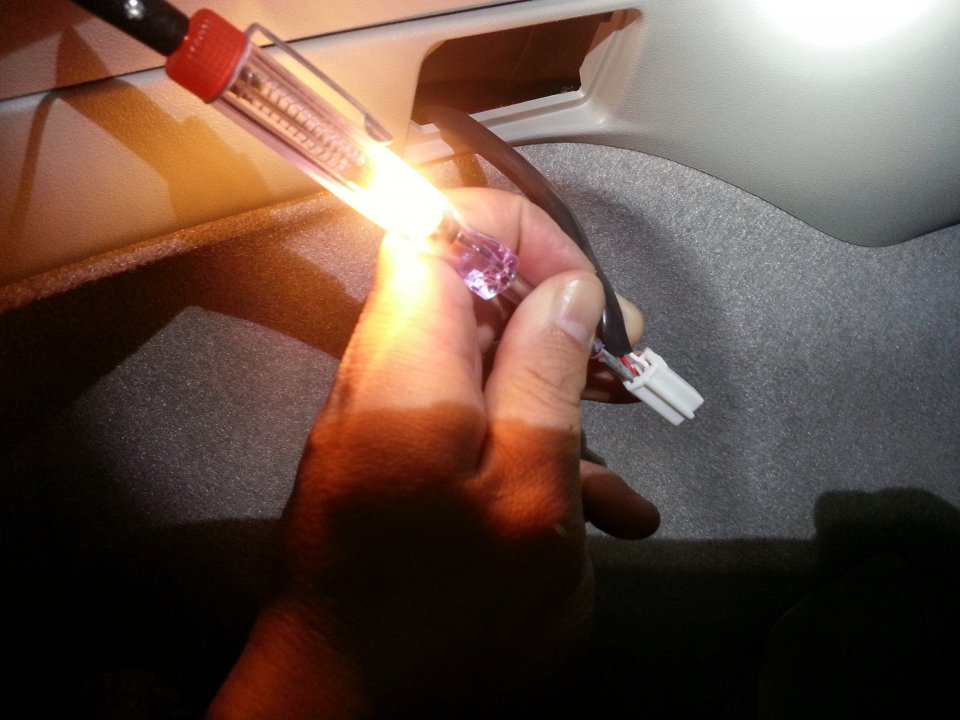

    Here is your request, On the harness, the RED is +Pos and the WHITE is -Neg.

  3. zvw30yuki

    zvw30yuki Junior Member

    Joined:
    May 15, 2013
    11
    17
    0
    Location:
    California
    Vehicle:
    2010 Prius
    Model:
    III
    Thanks for checking on this. So the case here is, Tap my RED wire to the RED trunk light wire and ground the BLACK wire to the chassis?

  4. NoMoreNow

    NoMoreNow Member

    Joined:
    May 13, 2013
    167
    102
    0
    Location:
    SF Bay Area
    Vehicle:
    2013 Prius
    Model:
    Two
    Yuki, just Ground the BLACK wire with the WHITE wire is fine.
    So you have the RED (+) & BLACK (-) in one place by the harness.

  5. BigPete

    BigPete Member

    Joined:
    Jun 3, 2012
    149
    55
    0
    Location:
    Plymouth, UK
    Vehicle:
    2011 Prius
    Model:
    Three
    Got a link to it as need one like this but with white led preferably as have the white door sills.

  6. zvw30yuki

    zvw30yuki Junior Member

    Joined:
    May 15, 2013
    11
    17
    0
    Location:
    California
    Vehicle:
    2010 Prius
    Model:
    III
    Thanks. I'll do the install tomorrow and post pics.

  7. zvw30yuki

    zvw30yuki Junior Member

    Joined:
    May 15, 2013
    11
    17
    0
    Location:
    California
    Vehicle:
    2010 Prius
    Model:
    III
    I bought my on yahoo.jp auctions. You can copy/paste this to the search: "プリウス リアバンパーステップガード LED"
    However it appears only blue led is offered. Works out well for me because I have the USDM illuminated blue door sills that match. Maybe you can replace and solder in white leds.

  8. zvw30yuki

    zvw30yuki Junior Member

    Joined:
    May 15, 2013
    11
    17
    0
    Location:
    California
    Vehicle:
    2010 Prius
    Model:
    III

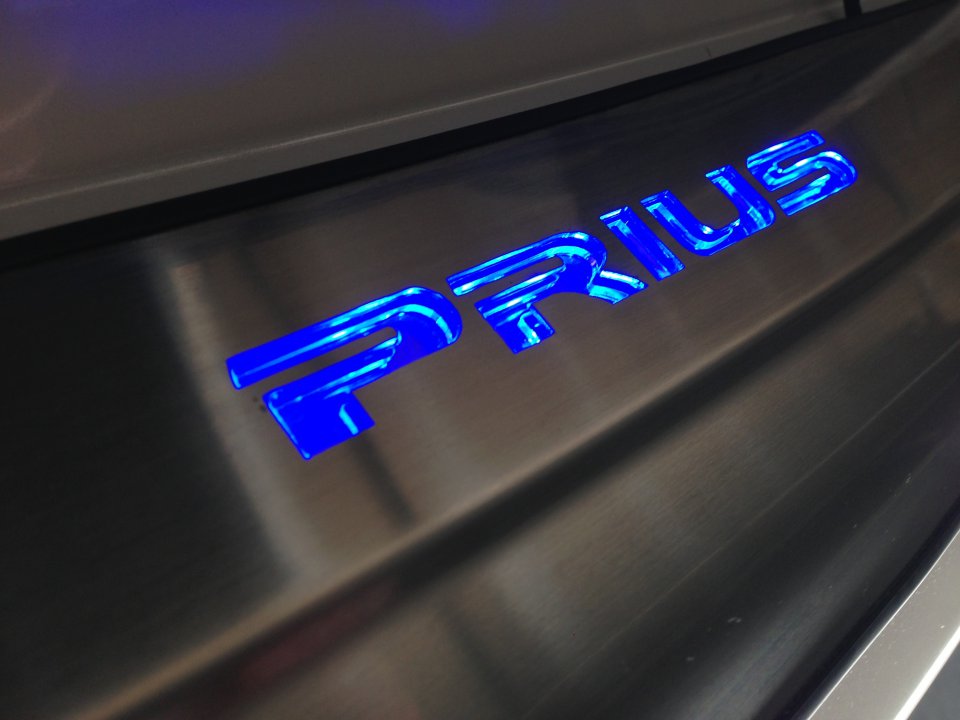

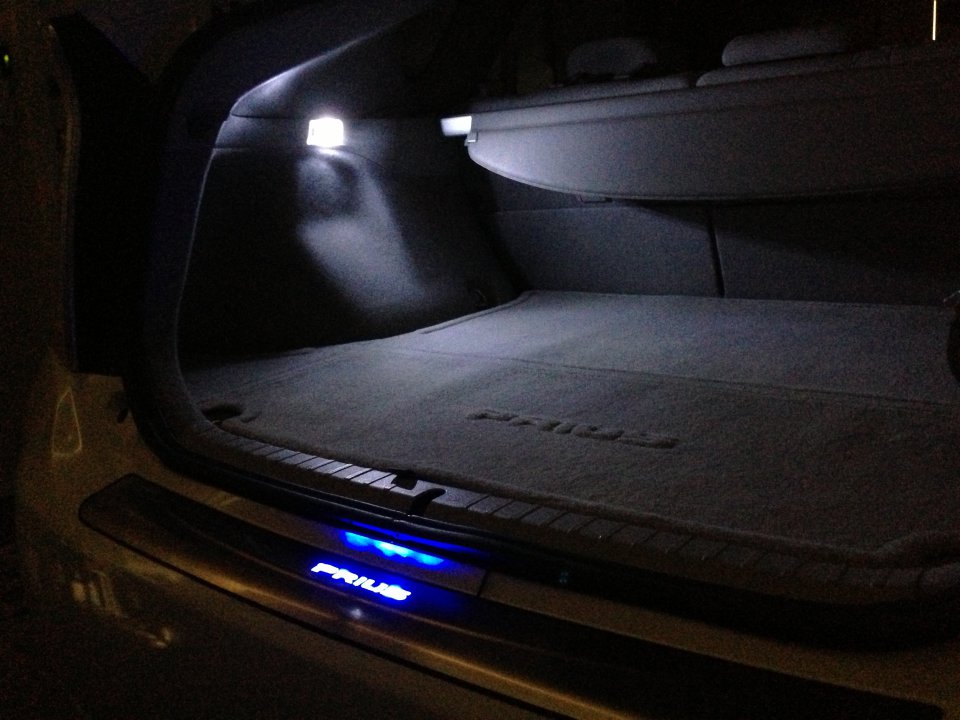

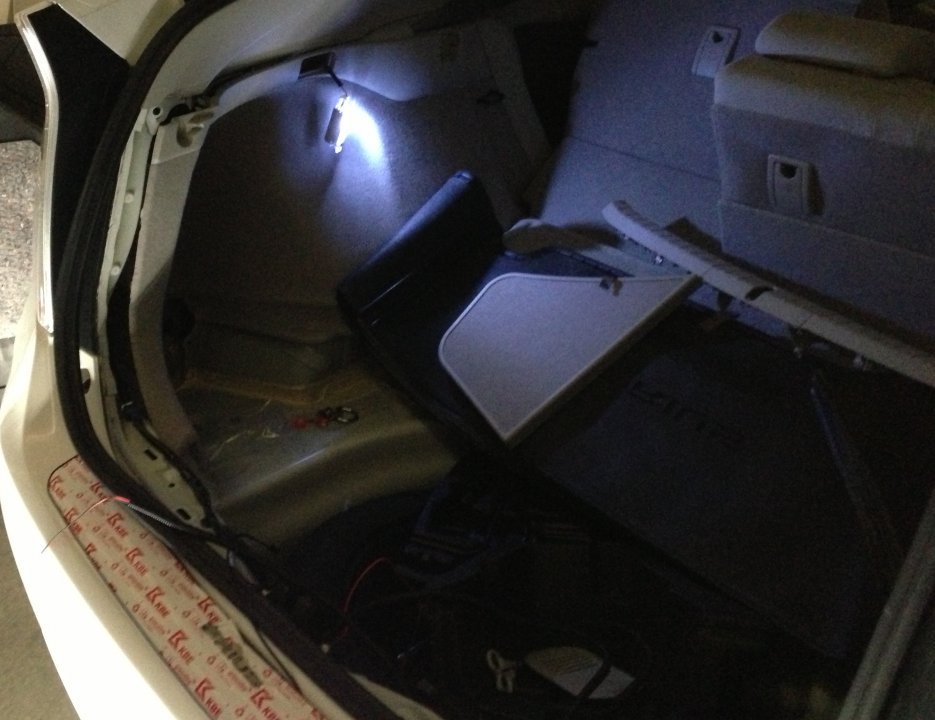

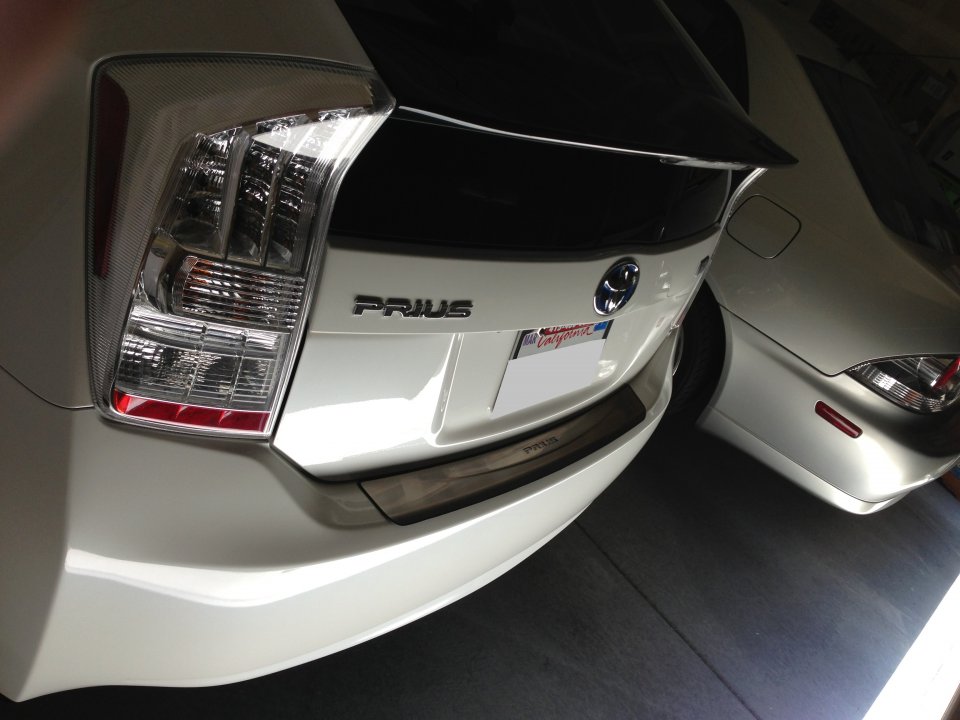

    Installed it this morning. Ran the wire along the existing loom behind the panel and tapped into the trunk light. Satisfied with the protector, especially for the price paid.

    IMG_5015.jpg IMG_5021.jpg IMG_5023.jpg IMG_5026.jpg

    nedear88 and NoMoreNow like this.
  9. spiderman

    spiderman wretched

    Joined:
    Jul 5, 2009
    7,543
    1,558
    0
    Location:
    Alaska
    Vehicle:
    2010 Prius
    Model:
    II
    And how much was that?

  10. zvw30yuki

    zvw30yuki Junior Member

    Joined:
    May 15, 2013
    11
    17
    0
    Location:
    California
    Vehicle:
    2010 Prius
    Model:
    III
    5900 JPN yen. That's roughly $60. Then reshipped from the inlaws in Japan to the states about which cost about $30 via SAL. Still cheaper than the JDM oem Toyota elegant version which sells for 11550 yen ~ $120. Plus this one has an LED and the oem one doesn't.
