Sure wish I could find a way jack it up for fog light install

Discussion in 'Gen 3 Prius Accessories and Modifications' started by ES44AC, May 21, 2012.

  1. ES44AC

    ES44AC C.A.U.S

    Joined:
    May 7, 2012
    316
    74
    0
    Location:
    USA
    Vehicle:
    2011 Prius
    Model:
    Two
    Got my fog lights and am ready to install 'em but boy I don't see a very obvious place to place my floor jack. If I go on the seam that sticks down I'm sure it will mush it over so the factory jack won't work on it.

    I have d/l 2 photos that show the jacking points under the front and rear but it appears you'd have to come in from the front of the car and hope you hit the right spot.

    Any way I can jack it up without bending that seam on the perimeter of the underside?

    I have a floor jack that will fit under the car but I hesitate to use it. I may just go to my friend's shop and let him lift it on a 4 point, in ht ground lift. My floor jack doesn't have a pad that you can replace with something else where it contacts the frame. Some apparently do mine does not :(

    Thanks!

  2. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,587
    2,355
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    I made some adapters for my floor jack out of hardwood that consists of a square piece with two "strips" on top so that there is a channel across the middle for the "seam", as you call it. It works well.

    But, I also have a pair of Rhino ramps that I picked up a while ago from WalMart. That's what I used to install my foglights.

    1 person likes this.
  3. ES44AC

    ES44AC C.A.U.S

    Joined:
    May 7, 2012
    316
    74
    0
    Location:
    USA
    Vehicle:
    2011 Prius
    Model:
    Two
    Hi xliderider, That was a quick reply! :D

    If I use ramps does that splash pan come all the way off the car or does it hang down and can't be removed? I thought I saw someone, maybe you, had the car on ramps and that panel was on the ground in front of the car. Maybe it's the fender liner pieces you can't take out?

    I have a Walmart close to me maybe I should score a set of those ramps if they aren't too expensive, are they metal or some composite material?

    Thanks !!

  4. jdcollins5

    jdcollins5 Senior Member

    Joined:
    Aug 30, 2009
    5,131
    1,311
    0
    Location:
    Wilmington, NC
    Vehicle:
    2010 Prius
    Model:
    III
    The Rhino ramps are made of a composite material and work fine. I have the Rhino ramps but another thing you can use since you have the floor jack are jack stands.

    These are adjustable stands that you can put under the car while you are working. You can get these at WalMart also or at an auto parts store. Just be sure to get the correct weight for the Prius which is around 3000 pounds. You jack the car up and then place the jack stands at other jack points and then lower the vehicle on to the jack stands while you work.

    I used the Rhino ramps when I did my fog light install. I also use the Rhino ramps for basic oil changes, etc. I will use the Rhino ramps on the front along with the jack stands in the back when changing tires or changing the transaxle fluid when the car needs to be level on refills.

  5. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,587
    2,355
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Yeah, I love the ramps. Can't beat them for a quick front, or back end lift. The only disadvantages are that you can't work on the wheels (obviously), and that the car wont be level, unless you then jack up the opposite end and use jack stands as mentioned above.

    The plastic shield under the car comes all the way off, just be sure to remember what type of fastener goes where (there are three different types). I used my kid's colored chalk to make colored hash marks on the shield next to the fasteners as I removed them, so I could replace them correctly when reassembling the shield. The wheel well liner is the plastic piece you see hanging down in the fog light installation instructions, those don't come all the way off because they are riveted on.

    1 person likes this.
  6. wick1ert

    wick1ert Senior Member

    Joined:
    Dec 3, 2009
    1,311
    183
    2
    Location:
    Delawhere
    Vehicle:
    2010 Prius
    Model:
    III
    I add another "plus" vote for the Rhino Ramps. Although, I do have to put a 2x4 in front of them so that the bumper doesn't just push them out of the way up front. I've always felt better with the car up on the ramps vs jack stands given the material my driveway is made out of.

  7. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,587
    2,355
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Do you put the 2 x 4 between your tire and ramp so you drive up over the 2 x 4 onto your ramps, or do you mean you put the 2 x 4 behind your ramps like a chock/stop? :confused:

  8. k.s.c

    k.s.c Junior Member

    Joined:
    Mar 18, 2012
    73
    10
    0
    Location:
    SW Florida
    Vehicle:
    2012 Prius
    Model:
    Five
    Here is a free ramp idea for you. I had an issue in a parking lot where I needed to get under my car. Problem was that I had a 300 and the front was about 6 inches off the ground. I pulled up to one of those cement parking stops (at the front of the parking space so you don't go too far). I powered up slowly and got the front wheels up and on top of the parking stop. Put the parking brake on and was able to get the front of the car up from 6 inches to 14 inches. enough to get in and make a fast repair. also extremely dangerous and potential fatal....

  9. zebelkhan

    zebelkhan Member in good standing

    Joined:
    Mar 14, 2012
    164
    37
    0
    Location:
    Morgan Hill, CA
    Vehicle:
    2012 Prius
    Model:
    Two
    Be very careful with this. Once I put the front wheels on ramps then proceeded to jack up the rear. Mid way through the process car turned on the front wheels and shifted sideways, then fell off the jack.

  10. wick1ert

    wick1ert Senior Member

    Joined:
    Dec 3, 2009
    1,311
    183
    2
    Location:
    Delawhere
    Vehicle:
    2010 Prius
    Model:
    III
    Sorry, guess I should have clarified that. I put them between the tire and ramp so I drive up over the 2x4 onto the ramps.

    Although, I'm sure some people would recommend using them as a chock/stop after the car is up on the ramp. I set the parking brake as well whenever I put mine on the ramps.

  11. dustoff003

    dustoff003 Blizzard Brigade #003

    Joined:
    Dec 27, 2010
    1,371
    334
    0
    Location:
    Waianae, HI (Oahu)
    Vehicle:
    2011 Prius
    Model:
    Five
    Check your owners manual there are single point lift floor jack usage positions in both the front and the back of your car. You mentioned downloading 2 pics that should be what I am talking about, if you look under your car you should be able to easily identify both jacking points. No need to hope that you hit the right spot. Once you jack it up put your jack stands on the seam where you would use the tire jack.

    1 person likes this.
  12. jdcollins5

    jdcollins5 Senior Member

    Joined:
    Aug 30, 2009
    5,131
    1,311
    0
    Location:
    Wilmington, NC
    Vehicle:
    2010 Prius
    Model:
    III
    I am not sure what you did to cause this. I have done this with my car numerous times and have never had that problem.

    My ramps have a fairly deep indention right in front of the wheel stops. If you have the car all the way to the front and down in the indentions I am not sure how the front wheels could turn.

    It also sounds like you may not have had the jack positioned correctly when you picked up the car and the car shifted on the jack.

  13. ES44AC

    ES44AC C.A.U.S

    Joined:
    May 7, 2012
    316
    74
    0
    Location:
    USA
    Vehicle:
    2011 Prius
    Model:
    Two
    Just wanted to let you know I got the ramps at Walmart for $43.00! They work fine and didn't slide forward on the cement floor like I expected they would. It was an easy job to install the fogs but I don't have the wiring done to the fuse panel ( can't find where to attach the red wire) or anything in the cab. But all that is gravy now that the lights are in place. I will use the ramps to finish my clear bra install on the front fascia / bumper. Anything that keeps me off the floor is a plus.

    Regards :D

    txtabby and danielizzle like this.
  14. ES44AC

    ES44AC C.A.U.S

    Joined:
    May 7, 2012
    316
    74
    0
    Location:
    USA
    Vehicle:
    2011 Prius
    Model:
    Two
    Hi Ed,

    I got a set of Rhino Ramps today and used them to install the fog lights. I didn't want to smash that seam / weld where the factory jack would go. Didn't know if lowering the car onto them would mash 'em!

    Got the job done tho in spite of it all!

    Cheers!

    1 person likes this.
  15. txtabby

    txtabby 2011 Prius 4

    Joined:
    Mar 26, 2007
    123
    5
    0
    Location:
    Austin, TX
    Vehicle:
    2011 Prius
    Model:
    Four

    You mentioned a procedure. Have a link for that? I also kinda like the rino-ramp idea other than jacking up the front end-I can't locate the front/center jack point. And the colored chalk is a neat trick! I may have to get some. I'll try to get this done tomorrow

  16. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,587
    2,355
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    The front jack point is about a foot in, directly in the center. There's a round opening in the plastic under cover, so it's easy to spot.

    The procedure is the installation instructions found in the the oem foglight sticky thread in the Gen 3 modifications forum, page 1.

  17. William Redoubt

    William Redoubt Senior Member

    Joined:
    Feb 13, 2016
    1,206
    1,146
    1
    Location:
    Coronado Island, California
    Vehicle:
    2016 Prius
    Model:
    Two
    When I change the oil in my Gen 4 I just set down a couple of lengths of 4 x 4 in front of the tires and drive up on them. They are not quite as wide as the tires, but there is plenty of support.

  18. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,268
    7,547
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV

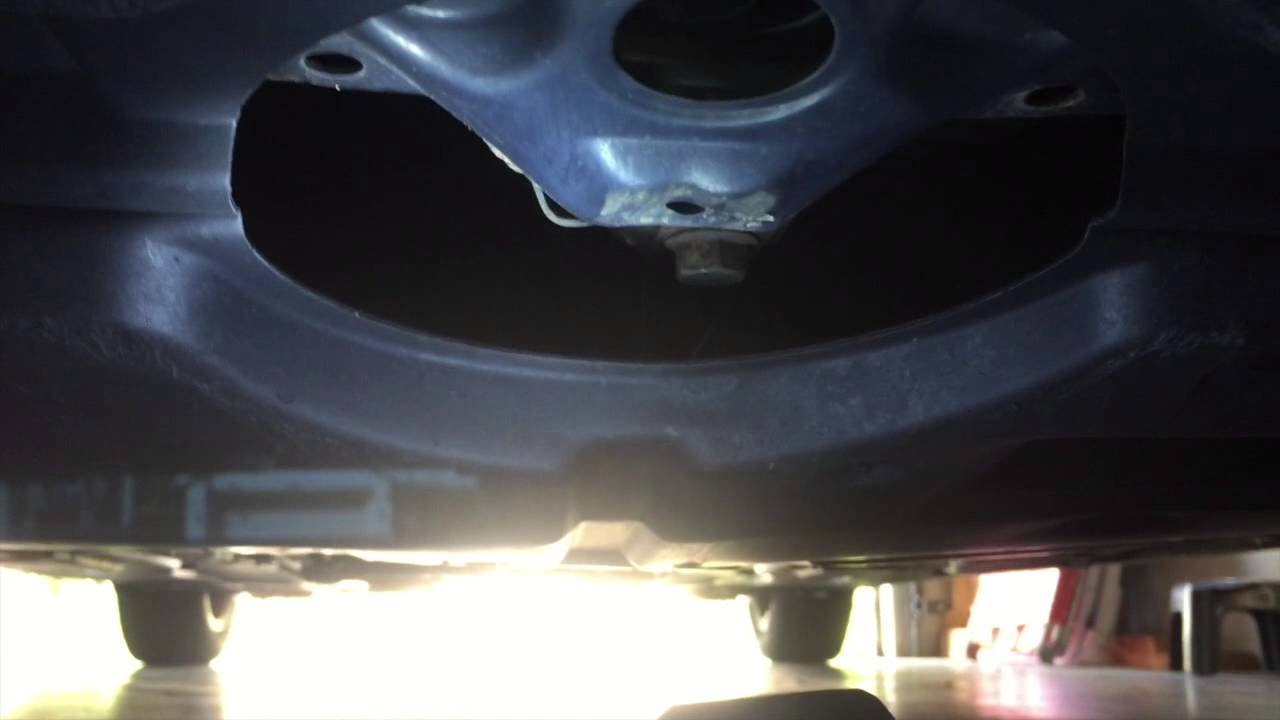

    Shouldn't really be so difficult to spot the central floor jack points. If you get your head below the front bumper and look, you're mostly looking at plastic aero under covers, but they have a round opening just like a little round picture frame right around the metal jack point showing right in the middle of it.

    [​IMG]

    For access to fogs, I found it's really not much extra trouble to just take the bumper cover off; then all the wiring's easy to see, including where the wiring back to the firewall should come out. I didn't raise the car at all. (For removing the bumper cover, the manual says to remove the front plastic spoiler underneath it, but even that isn't necessary, only taking out the fasteners along its front edge that go into the bumper cover.)

    -Chap

  19. txtabby

    txtabby 2011 Prius 4

    Joined:
    Mar 26, 2007
    123
    5
    0
    Location:
    Austin, TX
    Vehicle:
    2011 Prius
    Model:
    Four
    Tried to do it today, car up on the ramps, but it starting raining hard, it was mid afternoon, and I work early. I put the underside panel back on and called it a day. About just taking the front "nose" cover off, you don't have problems with the wiring hanging up? Too much tension?

  20. txtabby

    txtabby 2011 Prius 4

    Joined:
    Mar 26, 2007
    123
    5
    0
    Location:
    Austin, TX
    Vehicle:
    2011 Prius
    Model:
    Four
    Just going to take the front cover off and do it that way. Seems easier... It'd be cool to have the ability to turn the fog lights on even if the headlights were off. ???
