    I apologize if this has been covered, a few days of searching hasn’t completely answered my query.

    Firstly, I do know of the differing screen resolutions.
    My query, are the touchscreens specifically programmed for certain things, or can they be compatible swapping to any configuration, as long as the resolution is correct?

    I just acquired a 2007 base package, with backup camera, single disc radio, & no navigation.
    I want to swap the higher res screen & camera into my loaded 2004 with navigation & 6 disc changer. Will the screen work as is or need to be reprogrammed for my option package?

    I really want to put all my ‘04 guts into the ‘07 (lower miles & far nicer body), but research says that’s an immense undertaking....

    #1 04 Prius, Nov 24, 2017
  2. ITBland

    ITBland Active Member

    Joined:
    Jun 22, 2017
    433
    272
    3
    Location:
    New Orleans, La area, US
    Vehicle:
    2011 Prius
    Model:
    Three
    In theory, if you took all the MFD and nav wiring from the 04, you could get it to work in the 07, BUT you would lose the backup camera (different video standard) and the bluetooth phone from the 07 (bluetooth circuit is in the newer MFDs).
    I am currently running an 07 MFD in my non-nav 04 (had to swap some pins on the connector) and all "normal" functions work (hybrid/audio/climate), so those would be OK, but moving the nav wiring would likely be a nightmare.

    #2 ITBland, Nov 25, 2017
    PaulMarcus likes this.
  3. 04 Prius

    04 Prius Member

    Joined:
    Aug 3, 2014
    74
    32
    0
    Location:
    Shingletown CA
    Vehicle:
    2004 Prius
    Model:
    II
    What pins did you need to swap? On the MFD?

    The ‘07 only has a camera, no Nav & no Bluetooth. I was looking at 2 options:

    1. Using the 07 MFD & camera in my 04 that does have nav & Bluetooth.
    2. Putting my 04 nav & Bluetooth wiring/parts into the 07, retaining the 07 MFD & camera.

    #3 04 Prius, Nov 26, 2017
    PaulMarcus likes this.
  4. PaulMarcus

    PaulMarcus Junior Member

    Joined:
    Dec 8, 2017
    3
    0
    0
    Location:
    Cluj-Napoca
    Vehicle:
    2005 Prius
    Model:
    Two
    I am interesting in changing MFD in order to connect a back-up camera. Can you help us with the way you swapped the pins? Thanks!

    #4 PaulMarcus, Dec 8, 2017
  5. ITBland

    ITBland Active Member

    Joined:
    Jun 22, 2017
    433
    272
    3
    Location:
    New Orleans, La area, US
    Vehicle:
    2011 Prius
    Model:
    Three
    Sorry, just noticed this, my answer from: Will 86110-47230 work instead of 86110-47081 in 2005 Base Model?
    "I made the change from 2004 base-->2006 w/camera. Here are the pin assignments from the wiring diagrams (Please use a meter to check your existing plug to be sure of the power wires.) You can find pin extractors on Amazon/eBay such as this: Car Wire Harness Terminal Extractor, but I still had one I couldn't get out and just spliced it.'

    2004 Pin     Wire Color Signal 2006 Pin Wire Color Signal
    3 Brown GND1 1 Brown GND1
    4 Black TX1+ GTX+ 4 Black TX1+ GTX+
    5 White TX1- GTX- 5 White TX1- GTX-
    7 Pink TC DL3 7 Pink TC DL3
    10 Black IG+ 7.5A 10 Black IG+ 7.5A
    11 Gray ACC+ 7.5A 2 Gray ACC+ 7.5A
    12 Yellow B1+ 15A 3 Yellow B1+ 15A
    16 Red PKB Brake Sw. --
    17 Black DR HSD1 - Body ECU 17 Black DR HSD1 - Body ECU
    18 Pink TX2+ Radio 18 Pink TX2+ Radio
    19 White TX2- Radio 19 White TX2- Radio
    25 Violet SPD Combi 20 Violet SPD Combi
    21 Pink REVERSE+ Relay

    24 C Shield SLD Radio
    25 C Black IVO+ Radio
    26 C White IVO- Radio
    27 C Red V+ Camera
    28 C Shield V- Camera
    29 C Black CA+ Camera
    30 C White CGND Camera
    31 C White/Black GND​

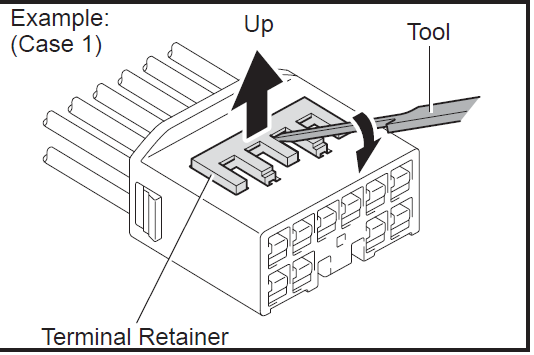

      1. To Re-pin, you need to raise the retainer on top of the plug (similar to this) [​IMG]

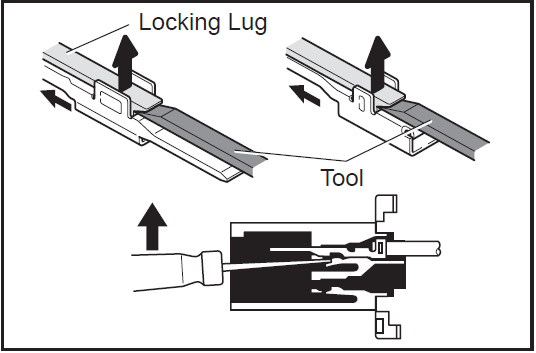

        And then release the individual pins
        [​IMG]

    #5 ITBland, Apr 30, 2018
    Last edited: Apr 30, 2018
