  1. Mendel Leisk

    Mendel Leisk Sidewalk Supervisor

    Joined:
    Oct 17, 2010
    31,425
    20,472
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Thanks. Yeah it just seems like a lot of grief dealing with EGR and exhaust while the engine's still in. I've taken the EGR off and what a pain.

    Appreciate that I keep firing questions at ragingfit and you keep fielding them. (y)

  2. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    515
    636
    23
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    I’ve been off work the last couple of days. Been fielding DM’s from another member asking the same or similar questions about the swap. And it looks like a friend of mine here locally is getting ready to do this swap for himself. So the questions are being asked from all directions.

    m.wynn and Mendel Leisk like this.
  3. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    515
    636
    23
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    The worst part of removing the EGR is that bottom bolt on the cooler. A deep socket, plus a one inch extension plus a swivel socket plus a longer extension(8-10 inch) is how I got mine off. Then I slipped a small magnet into the socket to start the nut back on.

  4. Mendel Leisk

    Mendel Leisk Sidewalk Supervisor

    Joined:
    Oct 17, 2010
    31,425
    20,472
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    And yet another question: I gather it was only due to the recipient car (in the video) being a v that the transaxle damper swap was not enough, that he had to go to swapping the whole flywheel?

    I got the sense he was not expecting that complication, and that was because his previous swap was Prius/Prius, and damper swap was all that was needed in that case.

    For one scary moment I thought he'd hit an impasse, that it was not going to work, full-stop. Was a relief to see the solution.

  5. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    515
    636
    23
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    The damper and flywheel are the same on the V and the Gen 3. The Gen 4 damper and flywheel are different. To go from Gen 4 to Gen 3/V, you have to use the 3/V damper and flywheel

    m.wynn and Mendel Leisk like this.
  6. Mendel Leisk

    Mendel Leisk Sidewalk Supervisor

    Joined:
    Oct 17, 2010
    31,425
    20,472
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Yeah I've been there. The sandpounder for me, watching the video: you don't need to remove the lower stud, just the nut off the end of it. Which is hard enough, lol. But you can leave the stud on, still get the cooler off, if everything else is removed.

    Again yeah, if that can be left until after the engine's out, so much easier.

    And still very tantalizing: could the fourth gen EGR somehow be used...

  7. Ragingfit

    Ragingfit Member

    Joined:
    Oct 21, 2015
    86
    149
    0
    Location:
    Aurora, IL
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    The transaxle has a couple of alignment pins, the input shaft is splined and chamfered so it goes back together blind. Of course as with anything, if you have to force it you're going to break it. I always wiggle engines or transmissions to get them to seat before I put the screws to them.

    m.wynn and Mendel Leisk like this.
  8. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    38,586
    9,836
    40
    Location:
    Canada
    Vehicle:
    2018 Prius Prime
    Model:
    Technology
    Done.

    m.wynn, Jose Reyes and Mendel Leisk like this.
  9. danlatu

    danlatu Senior Member

    Joined:
    Apr 27, 2017
    514
    1,161
    2
    Location:
    maryland
    Vehicle:
    2011 Prius
    Model:
    Two
    This is awesome. Nice to know i can use a 4th gen motor on a 3rd gen.
    [​IMG]

  10. stephensprius

    stephensprius Active Member

    Joined:
    Nov 14, 2012
    550
    169
    0
    Location:
    Minneapolis, Minnesota
    Vehicle:
    2013 Prius
    Model:
    Persona
    Curious why you chose to retrofit the V with the gen 4 motor? Did you have massive failure in the gen 3 prius v? what happened?

  11. Mendel Leisk

    Mendel Leisk Sidewalk Supervisor

    Joined:
    Oct 17, 2010
    31,425
    20,472
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Watch the videos. In particular, the one in post #10:

    Swapping in a Gen 4 Prius' 2ZR Engine into the Prius v | PriusChat

    In one of the main series too, he shows the condition of the intakes, severely carbonned up. Just my 2 cents: he ran the engine with EGR disconnected for maybe 50K miles, that might have taken a toll, overheating.

    stephensprius likes this.
  12. Ragingfit

    Ragingfit Member

    Joined:
    Oct 21, 2015
    86
    149
    0
    Location:
    Aurora, IL
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    I have a Black 2012 Prius v that I bought with 99,000 miles on it. I drove it for about a month and it burned all the oil. Not like my previous 6) Prius's. (Service records indicate it was already burning oil at 87,000 miles) Then it started to run terribly. I replaced the spark plugs and the PCV and it was good for about 10,000 miles, except the oil burning, then terrible again. I unplugged the EGR and replaced the spark plugs again and it was good, but still burning oil. I took it to the dealer for the EGR recall and they refused to replace the EGR. If anyone had a bad EGR it was me! What jerks! Then at about 190,000 miles it started using water. I needed about 5 gallons of water to get home from work (45 miles). I tried that Barrs Leaks for head gaskets and it worked, and killed my catalytic converter. So yeah, and boo!
    I bought another Prius v (the Gray v Five) to replace the black one.
    Now I could fix the black one.
    I decided that the oil rings were to blame for the oil burning, so replacing the head gasket would not make me happy, I would have to re-ring it. I used a YouTube video from Phoenix and Dad

    as a starting place. Got much more info from PriusChat posters, specifically Danlatu.
    I followed his procedure and my rebuilt engine ran for about 5 miles. The oil pump had lost it's prime in the rebuild and I should have packed it with vaseline or primed it somehow but it's driven by the crank. Anyway, one blown engine later I started looking for a replacement engine. I knew the 2016 engine was the same 2ZRFXE engine with better rings but no one could say it would work, then CNC97 tried it. It was the same engine except some minor changes, motor mount, Flywheel, hose connections, etc. He used the 2016 engine with the third gen head with no problems. I knew I could do it too. I ordered my new engine, examined the systems on the new engine and compared the old. It was a complete success, so I video taped the second swap on the gray v five.
    - Fix That Prius!

    SFO, m.wynn, Joele3 and 2 others like this.
  13. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    515
    636
    23
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    And I have crossed over the 219k, or 5500 mile since the Frankenstein’s monster/jigsaw puzzle assembly having added 0 antifreeze and having changed the oil at 2200 miles. No oil consumption to note, and the oil looks as clean as the day I poured it in.

  14. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    515
    636
    23
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    I am going to do an oil analysis on my next change. Probably going to hit 5k on the oil in February.

    Ragingfit likes this.
  15. Ragingfit

    Ragingfit Member

    Joined:
    Oct 21, 2015
    86
    149
    0
    Location:
    Aurora, IL
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    I've put about 9,000 miles on my Gray 2012 Prius v and changed the oil 2,000 miles ago. No oil loss or burning, No issues at all!
    I parked my Black 2012 Prius v because the catalytic converter is bad now. Thanks Barrs Leaks! But it purrs like a kitten.
    Thanks again for sharing your experience CNC97.

    SFO, m.wynn and Raytheeagle like this.
  16. Joele3

    Joele3 Member

    Joined:
    Jan 1, 2010
    64
    98
    0
    Location:
    Bay Area
    Vehicle:
    2010 Prius
    Model:
    III

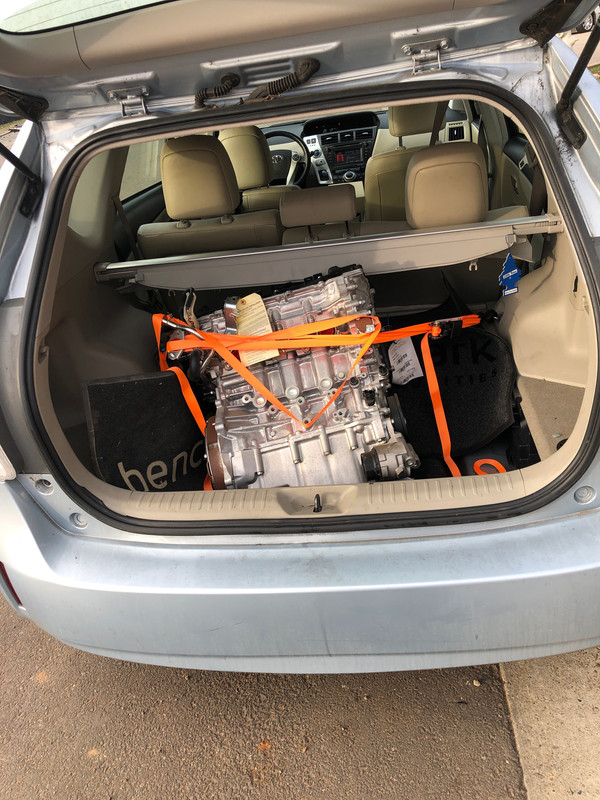

    Getting ready for a 2016 engine with 17k miles to go into my 2010.

    [​IMG]

    Mendel Leisk, SFO, Ragingfit and 2 others like this.
  17. Raytheeagle

    Raytheeagle Senior Member

    Joined:
    Jul 1, 2016
    7,041
    9,199
    0
    Location:
    Bay Area, CA
    Vehicle:
    2010 Prius
    Model:
    II
    Who’s v is that:whistle:?

    Good luck with the swap and let me know if you need a hand (y).

    SFO and m.wynn like this.
  18. Ragingfit

    Ragingfit Member

    Joined:
    Oct 21, 2015
    86
    149
    0
    Location:
    Aurora, IL
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    Wrong end!!! Nice engine!!

    Atari, m.wynn, Mendel Leisk and 2 others like this.
  19. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    515
    636
    23
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    I did a search on car-part.com. Gen 3 engines in my area still have a $500-$600 premium over the Gen 4.

  20. farmecologist

    farmecologist Senior Member

    Joined:
    Jun 25, 2015
    918
    878
    0
    Location:
    Southern MN
    Vehicle:
    2010 Prius
    Model:
    II
    Great work! Interestingly, my 2012 Prius v (wagon) has 143K on it an doesn't burn a noticeable amount oil....and I'm pretty sure the previous owner ran the vehicle hard ( see link in signature ). I purchased it with about 120K on the clock. Did I win the lottery? (y) I was 'expecting' at least some oil consumpotion when I bought it...but I'm not complaining.

    BTW - our 2010 liftback does consume a modest amount of oil.

    I guess the moral of the story is that buying a used Prius can be a scary proposition due to the oil consumption issue.

    Raytheeagle likes this.
