Testing my Battery Pack

Discussion in 'Prius c Care, Maintenance and Troubleshooting' started by Scubaman, Sep 25, 2020.

  1. Scubaman

    Scubaman Junior Member

    Joined:
    May 22, 2019
    14
    4
    1
    Location:
    Jamaica
    Vehicle:
    2014 Aqua
    Model:
    Base
    So I have been getting the "Replace my battery pack" code recently. Car is close to 124000 miles. (2014 yr).

    Decided today to remove the battery pack from the car and charge it up this morning with a Grid Charger to about 164V.

    After letting it rest until 6pm this afternoon I then measured all 20 cells.

    Module 1 8.03
    Module 2 8.01
    Module 3 8
    Module 4 7.99
    Module 5 7.99
    Module 6 7.98
    Module 7 7.98
    Module 8 7.98
    Module 9 7.99
    Module 10 8.02
    Module 11 8
    Module 12 8.01
    Module 13 8.01
    Module 14 8
    Module 15 7.98
    Module 16 7.98
    Module 17 7.99
    Module 18 8
    Module 19 8.01
    Module 20 8.02

    I then hooked up a 240V 100W bulb to the pack and measured the voltage every hour until 9pm. I decided to stop after Module 13 showed 5.76V. Here are the voltages after 3hrs.

    1 - 7.28
    2 - 7.26
    3 - 7.25
    4- 7.22
    5- 7.21
    6 - 7.19
    7 - 7.18
    8 - 7.15
    9 - 7.01
    10 - 6.79
    11 - 6.94
    12 - 6.88
    13 - 5.76
    14 - 6.91
    15 - 7.08
    16 - 7.14
    17 - 7.21
    18 - 7.21
    19 - 7.25
    20 - 7.27

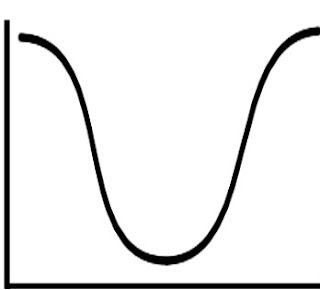

    What is interesting to note is the the best modules were found at the ends. 1-5 & 17-20. The worst were found grouped together near the middle. Its literally an inverted Bell Curve.

    [​IMG]

    Has anyone else ever noticed that behavior in the degradation of the cells?

    What am I going to do now..... replace the middle cells #9-15, try a little balancing on the grid charger and hope for the best. I am also considering moving the best 7 outer cells into the center to replace the worst and the replacements I get I use them at the outer spots. Sounds like rotating car tires...

    Any thoughts?

    topshot likes this.
  2. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    10,774
    4,372
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    You're off to a good start... But replacing a module or two is how we ordinarily work on these... Confirming with certainty a bad module is way less problematic than replacing large numbers of modules that aren't perfect because the replacement modules will have the same problem. So it's time for more tests before you identify the worst offenders.

    1) Self-discharge test: charge up all modules to max charge and wait a few days before checking voltage. A bad module, or one starting to be bad will lose more voltage than the others.

    2) Load test individual modules: After self discharge test hook a module up to a standard 50W 12v headlight bulb for 2 minutes and record the drop in voltage before disconnecting the head light... A bad module, or one starting to be bad will lose more voltage than the others.

    DIYaddict and Scubaman like this.
  3. Scubaman

    Scubaman Junior Member

    Joined:
    May 22, 2019
    14
    4
    1
    Location:
    Jamaica
    Vehicle:
    2014 Aqua
    Model:
    Base
    delete

    #3 Scubaman, Sep 29, 2020
    Last edited: Sep 29, 2020
  4. Scubaman

    Scubaman Junior Member

    Joined:
    May 22, 2019
    14
    4
    1
    Location:
    Jamaica
    Vehicle:
    2014 Aqua
    Model:
    Base
    OK I will do so.... Will update you on that next time i pull the pack out. Its the daily driver so keeping it out of play for a few days to check for voltage drop after a full charge may prove to be challenging.

    I will certainly start with the ones that "failed" the group test and try testing those individually.

    The individual test will run about 10 x as much current drain thru the module than the group test.

    #4 Scubaman, Sep 29, 2020
    Last edited: Sep 29, 2020
  5. tungm

    tungm Junior Member

    Joined:
    Jul 7, 2022
    13
    5
    0
    Location:
    Zimbabwe
    Vehicle:
    2014 Aqua
    Model:
    N/A
    Old thread though I am working on my pack for a Toyota Aqua(Prius C) 2014 with 148000km, and interesting enough module 10 and 13 dropped voltage much faster than the rest when discharging the whole pack at once. And the bell shaped curve is what I got, Modules at the ends don't seem to be dropping voltage by much even after hours.
