tires and tps

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by daveyboy, Dec 19, 2013.

  1. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    62
    11
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    Hi all I am having some tire pressure issues and want to check my tps sensors anyone know how I can get to them. Are they on the wheel inside or on the stems?
    Thanks

  2. dorunron

    dorunron Senior Member

    Joined:
    Jul 17, 2011
    3,318
    1,103
    0
    Location:
    Houston, TX
    Vehicle:
    2013 Prius
    Model:
    Three

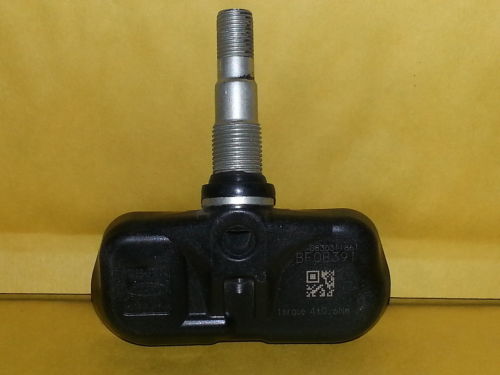

    Actually, both. They are inside the wheel, and the stem is part of the sensor.


    There is a nut and a grommet that fits on the thread on the base. The valve stem cover goes on the top. The black piece at the bottom along with the washer and the grommet shown would be found inside the wheel.

    Hope this helps you and makes sense.

  3. vskid3

    vskid3 Active Member

    Joined:
    Jun 23, 2013
    773
    228
    0
    Location:
    Texas
    Vehicle:
    2005 Prius
    Issues like?
    They're connected to the stem on the inside of the wheel, you would have to remove the tire to get to them. I personally would just check your pressure every couple weeks and call it good.

  4. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    62
    11
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    Isue is I have 8 wheels 4 winter 4 summer and don't know which set had sensors. The light is on showing a ptoblem. The second problem is if the sensor is set to a range for a stock tire but I mounted snows maybe with a different range.
    I may take the tire in and de mount to check which wheels have sensor.

  5. Joe 26

    Joe 26 Member

    Joined:
    Feb 20, 2008
    242
    42
    0
    Location:
    Columbus, Ohio
    Vehicle:
    2010 Prius
    Model:
    III
    Just look at the stems. If they are black rubber, then it does not have speed sensors. Most people with 2 sets of wheels leave them out of the snow tires.
    BTW, where are you in Jersey?

  6. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    62
    11
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    Perfect info I am by paramus

  7. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    62
    11
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A

    yep black stems on one set silver on the other.....

  8. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    62
    11
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    Any suggestions on a part number or brand of extra set of 4 tpms i can buy?

  9. Joe 26

    Joe 26 Member

    Joined:
    Feb 20, 2008
    242
    42
    0
    Location:
    Columbus, Ohio
    Vehicle:
    2010 Prius
    Model:
    III
    Unless you have a Techstream or similar scanner, you are probably better off not doing that. Each time you swapped sets of tires, you would need to program the on board computer with the new numbers from each set of sensors. A piece of black tape over the indicator light during the winter months would be a lot easier.

    PS I am visiting family in Toms River.

  10. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    62
    11
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    good info no scanner for me, and welcome to NJ
