Discussion in 'Gen 2 Prius Accessories & Modifications' started by keydiver, Feb 24, 2006.

  1. keydiver

    keydiver New Member

    Joined:
    Sep 9, 2005
    509
    2
    0
    Location:
    Hobe Sound, Florida
    Vehicle:
    2006 Prius
    Model:
    N/A

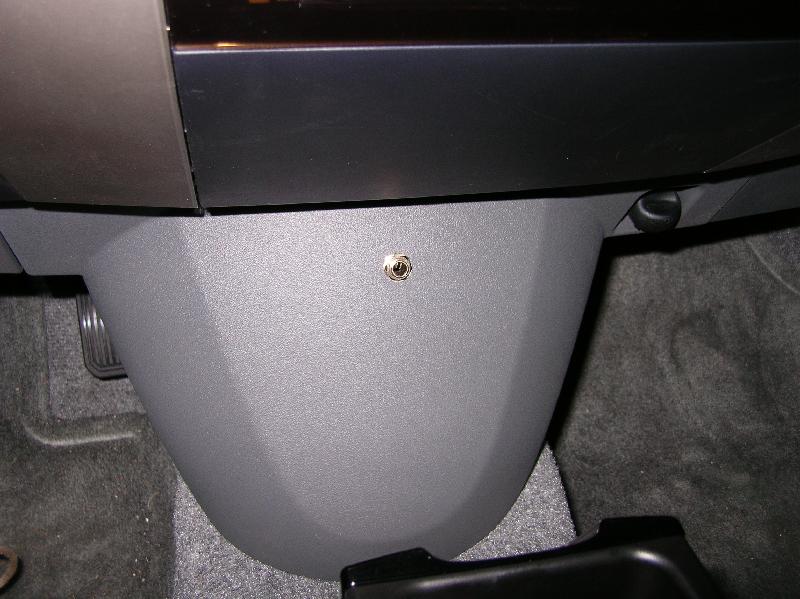

    Can anyone tell me what this jack is for on my 2006?
    [​IMG]
    [​IMG]

    Oh, nevermind, I figured it out! Its to play DVD's through the MFD! :D
    [​IMG]
    [​IMG]

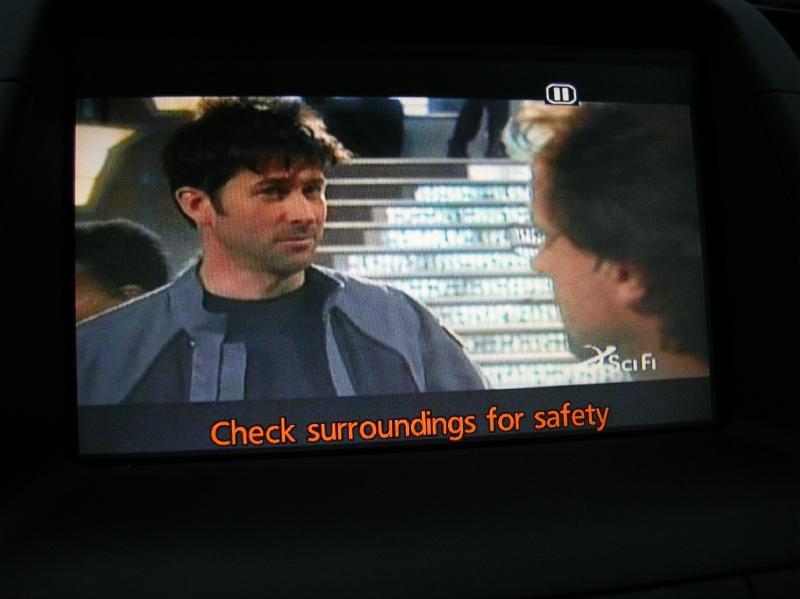

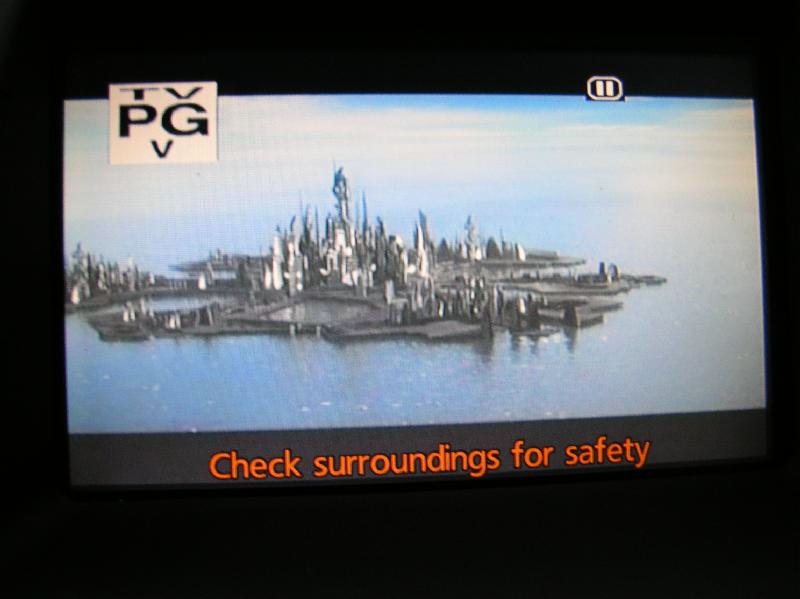

    It works folks! The analog video input IS NTSC standard composite video! B)
    Now, I guess I need to change my backup camera pushbutton switch to a toggle switch, because my finger got too tired holding the switch in to watch Stargate Atlantis! :lol: The only downside I've found so far is that you will always see that banner that says "Check surroundings for safety". It was fine when playing things in widescreen format, but it may be annoying when watching standard 4:5 stuff.I doubt there's anyway to hack the MFD to remove the banner, but who knows?
    It was really neat watching it, because I could also jack the audio into the 2006's AUX audio input! B)

  2. Salsawonder

    Salsawonder New Member

    Joined:
    Nov 28, 2005
    1,897
    47
    0
    Location:
    La Mesa California
    Vehicle:
    2010 Prius
    Model:
    IV
    Very glad that you live in Florida. Be sure to warn us west coasters if you ever decide to "drive" here. Dogs, cell phones and grooming are bad enough.

  3. keydiver

    keydiver New Member

    Joined:
    Sep 9, 2005
    509
    2
    0
    Location:
    Hobe Sound, Florida
    Vehicle:
    2006 Prius
    Model:
    N/A
    Well, I don't have a cellphone, a dog, or groom myself while I drive, and I'm CERTAINLY not recommending this mod for use while driving! Jeesh! :(

  4. bobr1

    bobr1 New Member

    Joined:
    Nov 21, 2005
    306
    2
    0
    Location:
    Portland, Oregon, USA
    No geek deed goes unpunished. :)

    Seriously, nice job!

    - Bob R.

  5. agill

    agill New Member

    Joined:
    Sep 20, 2005
    63
    0
    0
    Location:
    Lebanon (New Hampshire)
    Vehicle:
    2006 Prius
    Model:
    II
    Is that input jack on all the packages of the 2006. I do not seem to have one on mine Pkg #3

  6. keydiver

    keydiver New Member

    Joined:
    Sep 9, 2005
    509
    2
    0
    Location:
    Hobe Sound, Florida
    Vehicle:
    2006 Prius
    Model:
    N/A

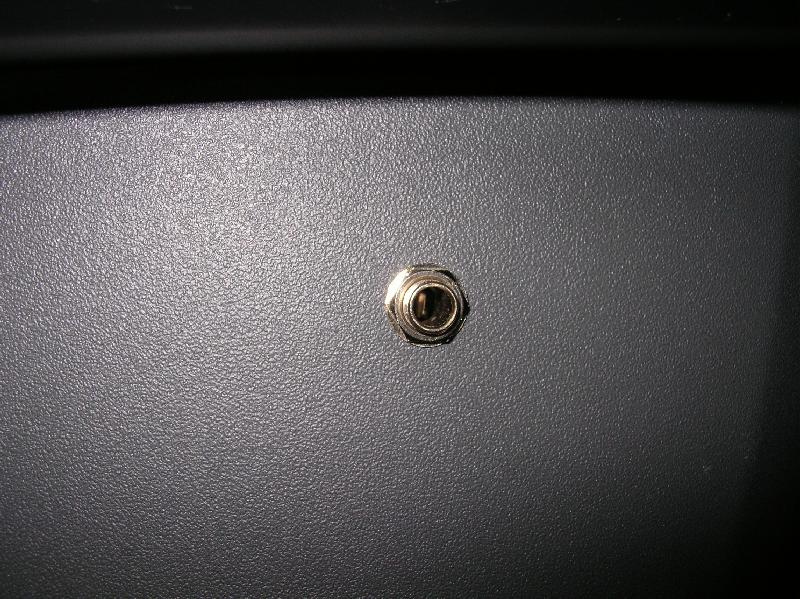

    No, I'm sorry, but I was being facetious. I spliced into the backup camera video connection, and added the jack. The wires we're concerned with are the red and black wires on M14, the large connector on the back of the MFD. The red wire is the + video, and the black one to the left of it is actually black shrinkwrap on a bare shielded wire. Both are part of a single coaxial video cable. You just need to remove the electrical tape thats in the way, cut the red wire, loop it through the jack, and tap onto the shielded wire for a video ground:

  7. xbdude

    xbdude opticat

    Joined:
    Oct 14, 2005
    168
    1
    0
    Location:
    North Central Florida
    Vehicle:
    2010 Prius
    Model:
    III
    You guys are just TOO COOL! I love the stuff folks on this site are coming up with.

  8. keydiver

    keydiver New Member

    Joined:
    Sep 9, 2005
    509
    2
    0
    Location:
    Hobe Sound, Florida
    Vehicle:
    2006 Prius
    Model:
    N/A
    Yea, I'm a geek, I admit it. But, us geeks have saved planet earth from dozens of alien attacks, and I only play around with this car stuff as a distraction in between off-world missions. :rolleyes:

  9. aaf709

    aaf709 Ravenpaw of ThunderClan

    Joined:
    Apr 23, 2005
    3,862
    18
    0
    Location:
    San Diego, CA
    Vehicle:
    2022 Prius Prime
    Model:
    Limited
    No matter what, that's way cool!

  10. DaveinOlyWA

    DaveinOlyWA 3rd Time was Solariffic!!

    Joined:
    Apr 13, 2004
    15,140
    611
    0
    Location:
    South Puget Sound, WA
    Vehicle:
    2013 Nissan LEAF
    Model:
    Persona
    ok, i woulkdnt approve of it safety-wise, but...

    it does pass "other" non-driving criteria...

  11. keydiver

    keydiver New Member

    Joined:
    Sep 9, 2005
    509
    2
    0
    Location:
    Hobe Sound, Florida
    Vehicle:
    2006 Prius
    Model:
    N/A
    Just to clarify, my main intent in this exercise was NOT to add DVD playback capabilities to my car, something I have little, if any, use for. However, I thought that it needed verification that, in fact, the analog video input on the 2006 MFD IS NTSC composite video. This opens our cars up for all sorts of add-ons that we didn't have before, because of the digital RGB+ sync input on previous years. Also, I think that it proves that, with a little more work, the CANVIEW will probably be adaptable to the 2006, using an RGB-to-composite converter of some kind. That may be overly simplistic, but with such a variety of devices out there that output in composite video, the uses are endless. Or, now that we know the camera is also NTSC, maybe you want to install a recorder in the loop, to get that guy's license number behind you whose been trying to run your Prius out of the HOV lane? :lol: Or, connect the camera to an RF transmitter, so you can nanny-cam the Prius? :lol:

  12. glenk

    glenk Member

    Joined:
    Dec 13, 2005
    109
    0
    0
    Location:
    Fairfield, CA
    Vehicle:
    2013 Prius
    Model:
    Three
    Good work again, Keydiver.

    Now we just have to figure out where Toyota muxes in the "Check surroundings for safety". I only need to be told that once, not every time! I guess this would have to be left for when the car goes out of warranty. Maybe a 2006 MFD will come up on ebay someday soon at a reasonable price for hacking experiments.

  13. darelldd

    darelldd Prius is our Gas Guzzler

    Joined:
    Jan 17, 2006
    6,057
    389
    0
    Location:
    Northern CA
    Vehicle:
    2006 Prius
    Great work again! Can I ask (beg?) you to add this extra bit to your initial write up on how to rig the camera to turn on with the switch? If you can email me the whole thing, I'd be happy to host it on my Prius pages where everybody can link to it. And here I thought I was done pulling apart my dash for a bit. Nope!

    Email and Prius links in my sig...

  14. DaveinOlyWA

    DaveinOlyWA 3rd Time was Solariffic!!

    Joined:
    Apr 13, 2004
    15,140
    611
    0
    Location:
    South Puget Sound, WA
    Vehicle:
    2013 Nissan LEAF
    Model:
    Persona
    X-10 had software that was basically a motion detector connected to a camera that you could configure to email you if motion was detected under set parameters, it would then email snapshots from the live video. this setup was designed as a security measure for your home, but...

    wouldnt it be great to setup an internet connect in your car, then have it email gps and screen captures from the video in the case the car is tampered with... that would be cool.

  15. Darwin23

    Darwin23 New Member

    Joined:
    Jan 28, 2006
    61
    0
    0
    Location:
    Panorama City, CA
    good job keydriver....i dont know about putting the jack right in the middle of the center dash..i'd put it on the side where its hidden.

    this is all for the "coolness" factor of the prius. great job.

  16. darelldd

    darelldd Prius is our Gas Guzzler

    Joined:
    Jan 17, 2006
    6,057
    389
    0
    Location:
    Northern CA
    Vehicle:
    2006 Prius
    Be PROUD of your jack, I always say...

  17. hycamguy07

    hycamguy07 New Member

    Joined:
    Feb 18, 2006
    2,707
    3
    0
    Location:
    Central Florida
    Vehicle:
    2007 Prius

    WOW, thats cool its way better than the guys in the escalde with the 19" screen playing pornos so everyone could see out the back while driving down the interstate.....

    I'd toggle it

  18. samoan_ridah

    samoan_ridah New Member

    Joined:
    Mar 31, 2006
    80
    1
    0
    Have there been any updates on a more detailed "how-to" on this mod? I would love to try this now that I am a little more confident in working with the MFD wiring.

    TIA.

    Brian.

  19. keydiver

    keydiver New Member

    Joined:
    Sep 9, 2005
    509
    2
    0
    Location:
    Hobe Sound, Florida
    Vehicle:
    2006 Prius
    Model:
    N/A
    If you look at the VERY bottom of Darell's writeup:
    Backup Camera Mod
    you will see that he added some details from an email I sent him. The video input line from the camera is a simple coaxial cable, just like the ones you would use to interconnect your A/V components at home. Its just a simple matter of intercepting the "hot" of the video, and looping it through a jack.

  20. samoan_ridah

    samoan_ridah New Member

    Joined:
    Mar 31, 2006
    80
    1
    0
    Thanks for the reply. I can see why I am not an EE. Sorry but that goes way beyond my abilities to fish a wire across the dash with a clothes hanger and solder together a few wires to a button to do the reverse thing.

    Maybe someday if Darell wants to help all of us regular-folk out with a full picture tutorial (and of course a few of his shortcuts) then I will attempt it.

    Thanks again. Oh and if you're ever in the LA area and want to come over my house for some bbq tofu or something, maybe we can get together and you can "help" me do this. :)
