Wiring configuration passenger side rearview mirror

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by davidj08, Jan 31, 2015.

  1. davidj08

    davidj08 Junior Member

    Joined:
    Feb 2, 2010
    79
    12
    0
    Location:
    northern CA
    Vehicle:
    2017 Prius
    Model:
    Three
    I'm unable to find any diagram telling me how to connect wires that power motors in the mirror assembly. There are four wires: two red wires, a brown wire, and a lavender wire. Can anyone advise? Many thanks.

  2. jjmerp

    jjmerp Junior Member

    Joined:
    Oct 10, 2009
    48
    20
    0
    Location:
    Dayton, Ohio
    Vehicle:
    2005 Prius
    Model:
    Four

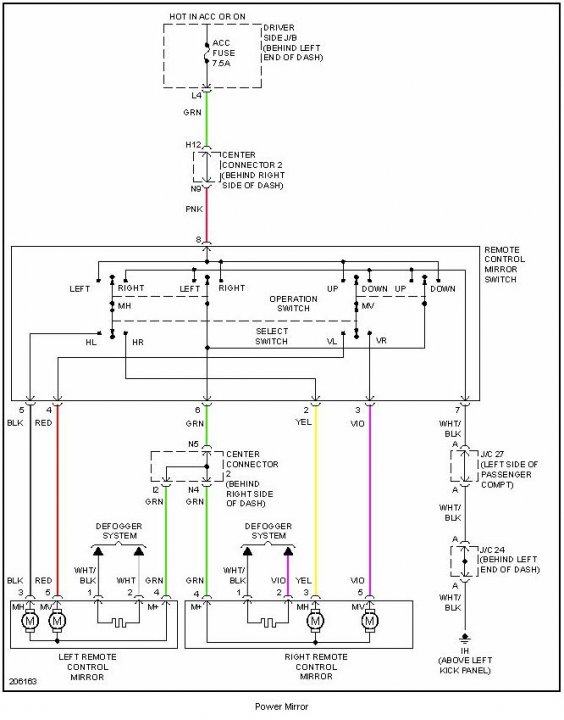

    Attached Files:

    frodoz737 likes this.
  3. davidj08

    davidj08 Junior Member

    Joined:
    Feb 2, 2010
    79
    12
    0
    Location:
    northern CA
    Vehicle:
    2017 Prius
    Model:
    Three
    JJ, Thanks for the info. It is appreciated. It looks as though the violet (lavender) wire is for the vertical and the yellow wire (which I thought was brown) is for the horizontal. However, with my limited ability to comprehend the diagram, I cannot decipher which of the wiring portals on the unit is for the vertical movement and which is for the horizontal. Also I don't know what to do with the two red wires. If I assume that because I have two red wires, one red goes into each portal. So, if I plug in one red and the violet wire into one of the portals and then activate the motor, I'd find out if the one I powered was vertical or horizontal. I don't relish doing electrical things in a trial-by-error mode. Thanks again.
