"Check Hybrid System" light and I'm stranded.

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by 2010Prius3+, Dec 28, 2014.

  1. 2010Prius3+

    2010Prius3+ 2010 Prius III

    Joined:
    Dec 27, 2014
    7
    2
    0
    Vehicle:
    2010 Prius
    Model:
    III
    My first post.

    On a road trip... Padre Tx to Dallas and just south of San Antonio (what I'm trying to say here is I'm a long way from home) and while sitting at a red light the "check hybrid system" and orange triangle with the exclamation point of death came on.

    I was off the road with the car turned off in seconds.

    Opened up the hood and the inverter coolant reservoir container is empty... what was in it all over the engine.

    It was the expensive genuine, pink, Toyota Special, coolant too.

    2010 Prius III with 76,000 miles, and the 100,000 mile warranty. So I call the road side assistance # on the warranty card, and long story short it gets towed to the nearest dealer.

    It's there now, being Saturday evening, awaiting Monday morning. And I'm in a crappy motel wondering how bad this is going to be.

    Anyone been through this before and lived to tell?

    But that's not all, say you pull your Prius into a parking spot, then it's towed out by lifting the rear and pulled (while in park) onto a flat bed trailer? I don't know how he got it off, maybe it's better for now that I wasn't there to see. But if the front wheels were dragged that short a distance.... well I guess my question is if the hybrid engine isn't ruined, did it being towed this way ruin it?

    Thanks to any/all for your advice and replies, or just nods of sympathy. Those are appreciated too.


    Ms. 2010PriusIII+

  2. kbeck

    kbeck Active Member

    Joined:
    Feb 10, 2010
    420
    274
    0
    Location:
    Metuchen, NJ
    Vehicle:
    2010 Prius
    Model:
    III
    Bummer.

    If you're really lucky you turned off the engine before the inverter electronics fried. There's been the occasional report around here about lack of coolant = fried inverter, with all the hassle that involves. But there's lots of sensors in there to detect overheat and it sounds like you acted quickly. Cross your fingers.

    KBeck

  3. nedim

    nedim Junior Member

    Joined:
    Jul 2, 2014
    81
    10
    0
    Location:
    Redmond, WA
    Vehicle:
    2010 Prius
    Model:
    III
    I am pretty sure they towed it lifting the front, so don't worry about that. Yes it does say in the manual to use a flat bed but think about if you use a flat bed they have to drag it a little bit in order to get it on it. When it is just a normal small towing truck they just attach the front and lift it.

    But for people that don't know..if something like this happens to you and your gear selection is not flashing you can still control the transmission. You have to enter acc mode which can happen by pressing the start key two times without the brake pedal depressed. After that you press the brake pedal and shift into neutral. This way transmission is not locked.

    You are saying that the inverter coolant is all over the engine ? Then probably one of the hoses gave up...

  4. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,796
    48,996
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    if they towed it incorrectly, since you called toyotacare, any damage should be on them. all best!(y)

  5. GregP507

    GregP507 Senior Member

    Joined:
    Apr 5, 2014
    3,002
    480
    0
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I think you are getting off fairly lucky if there's no permanent damage. Try to determine the cause of the inverter coolant leak. If it was due to human error or a manufacturing defect, it should be a legitimate warranty-claim.

  6. 2010Prius3+

    2010Prius3+ 2010 Prius III

    Joined:
    Dec 27, 2014
    7
    2
    0
    Vehicle:
    2010 Prius
    Model:
    III
    Thanks guys/gals!

    I do know I got her turned off as fast as could ever be possible. Having just exited the highway I'm just lucky I wasn't still on it leaving me with fewer options. Nothing smelled or felt hotter than usual, and I feel pretty confident nothing got fried. Well... we'll see but I do feel pretty good about that.

    Road side assistance wouldn't even give me the number for the tow company and insisted I go through them. So yes, it was their call. The tow guy said he'd only done one Prius before, and it was a pain. Made him nervous I think, the lack of "manual" options on the Prius. Makes me nervous too. I did hear him call ahead for assistance in getting it off the trailer when we got to the dealership, I'm hoping someone with more hybrid experience at his company was available to give him some pointers over the radio.

    It is probably a hose or clamp or something, but I wonder if a water pump failure didn't contribute. Something got hot and a hose was blown off. This car is foreign to me and I'm certainly no expert. I've just done my own oil changes. I added a bit of coolant several months and miles ago, in June. I couldn't get any hands or fingers in the tiny spaces to feel around much. Couldn't see much with my flashlight either, but the coolant was definitely every where in there. Looked like it was spraying upwards, then pooled where ever it found a resting place.

    Monday morning awaits and I'll be sure to fill you guys in.

    I hope warranty covers it. I know I didn't do it! I wasn't even under the hood when it happened :) !
    I hope the rest of the drive is uneventful. 500+ miles seems to be a long way right after something like this.
    I hope it doesn't catch on fire like savany71 ! Man o' man.

    Thanks again guys. I feel a little less stranded with your kind words and experience given. I'll keep y'all posted.

  7. gliderman

    gliderman Active Member

    Joined:
    Aug 2, 2011
    751
    223
    0
    Location:
    Texas
    Vehicle:
    2010 Prius
    Model:
    IV
    Were you driving 90+ mph on I37?

  8. nedim

    nedim Junior Member

    Joined:
    Jul 2, 2014
    81
    10
    0
    Location:
    Redmond, WA
    Vehicle:
    2010 Prius
    Model:
    III
    If your inverter water pumped failed before this accident it should have thrown a DTC.

  9. 2010Prius3+

    2010Prius3+ 2010 Prius III

    Joined:
    Dec 27, 2014
    7
    2
    0
    Vehicle:
    2010 Prius
    Model:
    III
    gilderman:

    Weeeeell.... I don't want to incriminate myself, especially if you were on the highway too (I see you're in Texas also) and saw me do something uncouth, but it was closer to 75-85. Speed limit in those parts is 75 and I had the cruise set at 79 most of the way. You know, to keep up with the flow.
    Maybe you're a cop...
    There was one part were I did go a little closer to 86, I confess. But it was short lived and the car never saw 90.

    My average speed for the past 7 months has been only 33mph. It's a slow trip to work, and in the shopping areas. This trip brought my avg up to 52 mph. Quite a change in a short time yes, but I would hope the Prius can handle highway speeds on a road trip, like all the other cars I was passing, I mean traveling alongside, on the same highway.

    nedim:
    I was hoping they could hook up one of those devices and check for codes real quick so I could go home, I mean, to a hotel, knowing just a little bit. But with an hour and a half to go to close, and 3 guys in shop garb standing around, and my cries for help, all I got were perfectly synchronized shoulder shrugs. I hope the A team comes in Monday morning and it's a quick find, if not a quick fix. I hate to think a quick clamp or hose fix plus fluid was all it needed and I could have been back on the road, but now I won't know until Monday. No codes showed up on the display... forgive my ignorance if that's not how it works.

  10. gliderman

    gliderman Active Member

    Joined:
    Aug 2, 2011
    751
    223
    0
    Location:
    Texas
    Vehicle:
    2010 Prius
    Model:
    IV
    Not a cop. If you aren't doing over 85, you better drive in the right lane. :)

    Good luck with your repairs!

  11. Burna J

    Burna J Knot Right Performance....

    Joined:
    Sep 18, 2012
    1,063
    3,331
    53
    Location:
    Long Beach, CA.
    Vehicle:
    2012 Prius
    Model:
    Three
    Sorry to hear about your recent misfortunes @2010Prius3+ Hopefully it's a simple fix and they have you down the road in no time tomorrow.

    Good luck with "The Chill Pepper". (y)

  12. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    17,123
    10,049
    90
    Location:
    Western Washington
    Vehicle:
    Other Hybrid
    Model:
    N/A
    The Park gear or pawl in the transaxle should be strong enough to handle this. None of the stress should reach the engine. The only really unhappy parts would be the portions of the tires dragging on the ground, and they are meant to be strong enough to handle locked-brake slides.

  13. 2010Prius3+

    2010Prius3+ 2010 Prius III

    Joined:
    Dec 27, 2014
    7
    2
    0
    Vehicle:
    2010 Prius
    Model:
    III
    They say a rock hit the radiator. 1000 bucks to fix it, and we're waiting on the part.

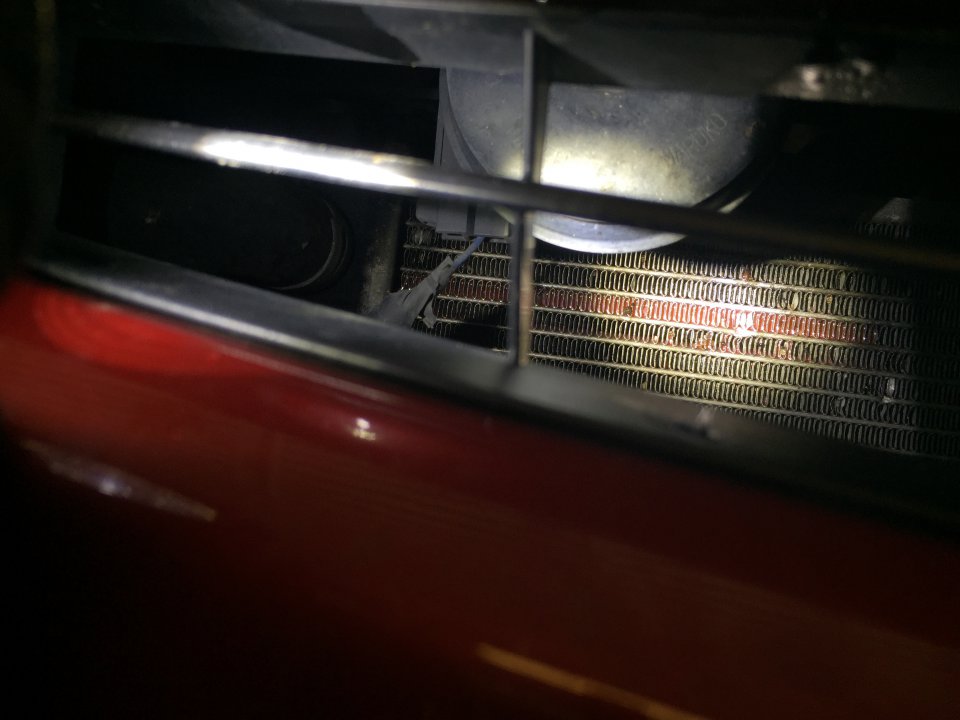

    Here is a pic, in the middle of the light- the bright spot is where they say a rock or something hit it.


    Attached Files:

  14. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,796
    48,996
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    oh boy, this is a known issue, although, not that many are using radiator guards. sorry to hear it.:(

  15. 2010Prius3+

    2010Prius3+ 2010 Prius III

    Joined:
    Dec 27, 2014
    7
    2
    0
    Vehicle:
    2010 Prius
    Model:
    III
    Radiator Gaurds! I want some! How do I get those, wonder if that's something I can have them install while they're already in there? Would love a pic if someone has these on their Prius.

  16. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,796
    48,996
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    good question. i think peeps have been fabricating their own. probably to of some the of wire mesh. a grille mouth guard so to speak. or maybe there's supposed to be a panel underneath?

  17. gliderman

    gliderman Active Member

    Joined:
    Aug 2, 2011
    751
    223
    0
    Location:
    Texas
    Vehicle:
    2010 Prius
    Model:
    IV
    That sucks!

    Good case for grill blocking!

    ou812 likes this.
  18. fotomoto

    fotomoto Senior Member

    Joined:
    Apr 22, 2009
    5,597
    3,771
    0
    Location:
    So. Texas
    Vehicle:
    Other Hybrid
    Childs play for a radiator shop and a whole lot less money too. But you're not in the best situation to do this (remove the rad yourself, take it to a shop, etc).

  19. ftl

    ftl Explicator

    Joined:
    Jun 2, 2009
    1,812
    790
    0
    Location:
    Long Island NY
    Vehicle:
    2012 Prius c
    Model:
    Three
    Will your comprehensive insurance cover this, or is your deductible too high to make it worth claiming?

  20. DoubleDAZ

    DoubleDAZ Senior Member

    Joined:
    Jul 2, 2014
    1,209
    322
    0
    Location:
    Peoria AZ (Phoenix)
    Vehicle:
    2014 Prius
    Model:
    Four
    Some people are using mesh similar to this from HD. Here's a link to a thread that might give you some ideas. I haven't really looked under the hood to see if something like this could be attached using plastic ties without removing the front-end. We take a lot of trips and this is something that's got me concerned too. Judging by the photo though, it looks like something pretty small did the damage, so this mesh might not filter small enough items.
