Blue led dash conversion

Discussion in 'Gen 3 Prius Accessories and Modifications' started by lpe350, Dec 4, 2011.

  1. Dylan Doxey

    Dylan Doxey Senior Member

    Joined:
    Mar 15, 2013
    1,389
    3,455
    92
    Location:
    San Diego, CA
    Vehicle:
    2014 Prius
    Model:
    Two
    Have you decided on color scheme? Aside from the mod party tomorrow, I don't have any appointments now. PM me when you're ready to nail down the deets.

  2. m3pare

    m3pare Senior Member

    Joined:
    Jan 20, 2013
    679
    1,818
    0
    Location:
    SoCal (626)
    Vehicle:
    2012 Prius
    Model:
    Three
    Yep, that's the one. (y)

    Dylan Doxey likes this.
  3. Dylan Doxey

    Dylan Doxey Senior Member

    Joined:
    Mar 15, 2013
    1,389
    3,455
    92
    Location:
    San Diego, CA
    Vehicle:
    2014 Prius
    Model:
    Two

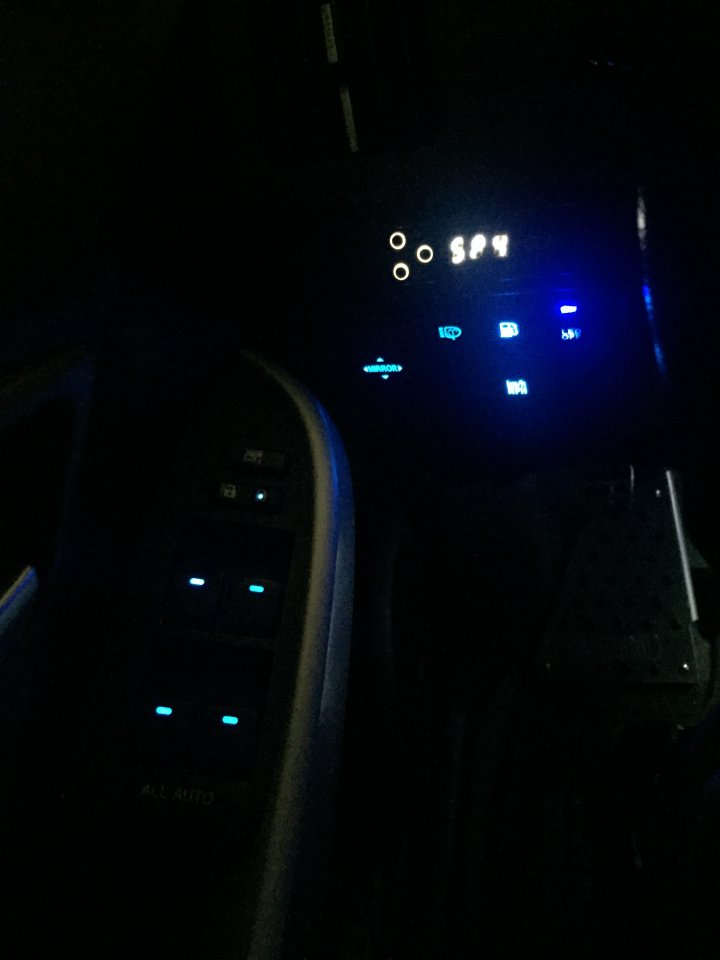

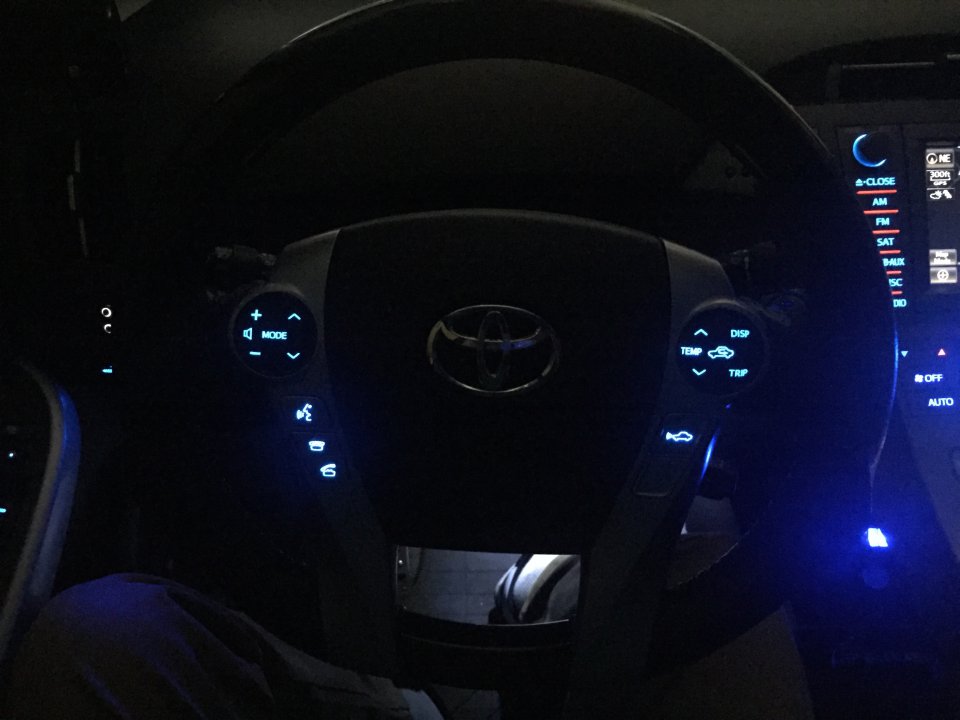

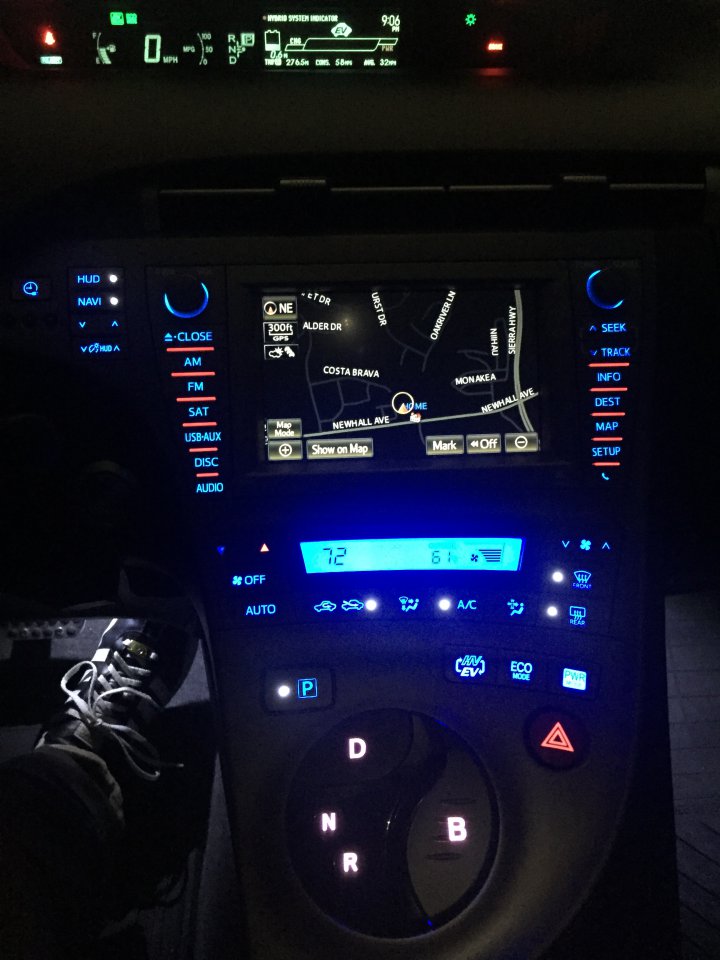

    Here are some snapshots of @bonchang's retrofit.

    [​IMG]

    [​IMG]

    [​IMG]

  4. KLD_Prius_PI_Synergy

    Joined:
    May 26, 2016
    68
    82
    0
    Location:
    San Diego, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
  5. Dylan Doxey

    Dylan Doxey Senior Member

    Joined:
    Mar 15, 2013
    1,389
    3,455
    92
    Location:
    San Diego, CA
    Vehicle:
    2014 Prius
    Model:
    Two
    This is @sd1810's retrofit.



  6. bonchang

    bonchang Active Member

    Joined:
    Feb 16, 2015
    144
    349
    0
    Location:
    NEWHALL, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Pictures don't give justice to the LEDs. They can be appreciated more if seen live in action.

  7. bonchang

    bonchang Active Member

    Joined:
    Feb 16, 2015
    144
    349
    0
    Location:
    NEWHALL, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    I got the Bi-color LEDs ready for the next mod party. Mostly blue-red and some white-blue.

    #107 bonchang, May 28, 2016
    Last edited: May 28, 2016
  8. Dylan Doxey

    Dylan Doxey Senior Member

    Joined:
    Mar 15, 2013
    1,389
    3,455
    92
    Location:
    San Diego, CA
    Vehicle:
    2014 Prius
    Model:
    Two

    I didn't get any good pictures of @Gaspeed's setup.
    Awesome! That will be breaking some new ground. (y)

    bonchang likes this.
  9. Burna J

    Burna J Knot Right Performance....

    Joined:
    Sep 18, 2012
    1,062
    3,331
    53
    Location:
    Long Beach, CA.
    Vehicle:
    2012 Prius
    Model:
    Three

    Excellent @bonchang, please save me a blue-red combo. (y):cool:

    PriiPrii, Dylan Doxey and bonchang like this.
  10. bonchang

    bonchang Active Member

    Joined:
    Feb 16, 2015
    144
    349
    0
    Location:
    NEWHALL, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    The ever gracious host is one of the few on top of the list;):cool:(y)

  11. Dylan Doxey

    Dylan Doxey Senior Member

    Joined:
    Mar 15, 2013
    1,389
    3,455
    92
    Location:
    San Diego, CA
    Vehicle:
    2014 Prius
    Model:
    Two
    Some fresh shots from my retrofit. :whistle:








    Attached Files:

  12. sfv41901

    sfv41901 Masta S

    Joined:
    May 5, 2010
    4,591
    5,291
    0
    Location:
    Palmdale, Ca
    Vehicle:
    2015 Prius
    Model:
    Four
    Plz save me a red/blue combo if u can


    iPhone ?

  13. bonchang

    bonchang Active Member

    Joined:
    Feb 16, 2015
    144
    349
    0
    Location:
    NEWHALL, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    You know you're on top of the list too:cool::cool::cool:(y)(y)(y)

    PriiPrii, sfv41901 and Burna J like this.
  14. Dylan Doxey

    Dylan Doxey Senior Member

    Joined:
    Mar 15, 2013
    1,389
    3,455
    92
    Location:
    San Diego, CA
    Vehicle:
    2014 Prius
    Model:
    Two
    I have made some revisions & updates to the "Shopping List" post.
    Blue led dash conversion | Page 4 | PriusChat

    The main difference is that I'm suggesting Oznium 0805 type LEDs for Toyota head units.

  15. HelloHybrid

    HelloHybrid Senior Member

    Joined:
    May 6, 2015
    482
    1,483
    0
    Location:
    San Diego, CA
    Vehicle:
    2015 Prius
    Model:
    Two
    bonchang and Dylan Doxey like this.
  16. sfv41901

    sfv41901 Masta S

    Joined:
    May 5, 2010
    4,591
    5,291
    0
    Location:
    Palmdale, Ca
    Vehicle:
    2015 Prius
    Model:
    Four
    The dash cluster.....that's in the plan



    iPhone ?

  17. saulbassfan

    saulbassfan Senior Member

    Joined:
    Aug 23, 2014
    979
    3,108
    0
    Location:
    Southern California
    Vehicle:
    2011 Prius
    Model:
    Two
    My bulbs came in!

    bonchang, Burna J, PriiPrii and 3 others like this.
  18. apt5020

    apt5020 Senior Member

    Joined:
    Jun 26, 2014
    881
    1,294
    0
    Location:
    Prius City, CA
    Vehicle:
    Other Hybrid
    Model:
    Five
    Another excellent job by SiFu Dylan!


    PriiPrii, m3pare, Burna J and 4 others like this.
  19. apt5020

    apt5020 Senior Member

    Joined:
    Jun 26, 2014
    881
    1,294
    0
    Location:
    Prius City, CA
    Vehicle:
    Other Hybrid
    Model:
    Five
    Forgot about the heater


    bonchang, PriiPrii, Burna J and 3 others like this.
  20. Dylan Doxey

    Dylan Doxey Senior Member

    Joined:
    Mar 15, 2013
    1,389
    3,455
    92
    Location:
    San Diego, CA
    Vehicle:
    2014 Prius
    Model:
    Two
    So, you want your passenger side lock switch to illuminate the same as it does on the driver side?


    Just because it doesn't illuminate now doesn't mean it can't. Let's take a look inside.


    So, evidently this switch is designed to illuminate in some cars. Just not the Prius (or my wife's Yaris).
    I did some digging and I was able to find a Lexus CT200h switch that is the same, but different.


    You can see in the Lexus version of this switch there is a B15 zener diode, a 1.3K resistor, and an LED. The Toyota version has the same circuit board, but lacks the components.

    Looking at the wiring harness inside the door handle, we also notice that the Toyota wiring harness lacks power for the illumination pin. upload_2016-6-11_18-32-54.png
    To resolve this problem I scavenged a wire from an extra connector and stuffed it in the empty slot on the lock switch connector. Then I spliced that into the illumination line (white with yellow bars) on the neighboring window switch connector.

    The last obstacle to lock switch illumination nirvana is getting the new LED light to pass through the opaque switch cover. (The Lexus switch cover is made of translucent plastic.)


    To deal with this, I drilled a tiny hole and added three lines of fiber optic to pass down to the inner realm where the LED lies. Cap that with a thick drop of slow drying super-glue and you're done!


    Ideally you should use a single, more thick, fiber optic line -- maybe 1/8", or 3/32".
