Do I need different end links or bushing for a TRD rear sway bar?

Discussion in 'Gen 2 Prius Accessories & Modifications' started by LamboGuy, Dec 20, 2015.

  1. LamboGuy

    LamboGuy Junior Member

    Joined:
    Nov 23, 2015
    53
    21
    0
    Location:
    92008
    Vehicle:
    2008 Prius
    Model:
    II
    Hey guys I need a quick answer, I just bought a rear bar and I want to know if I need different end links in order to install the TRD rear bar from matrix/Corolla (P/N PTR11-02060)

    Thanks,
    Christos

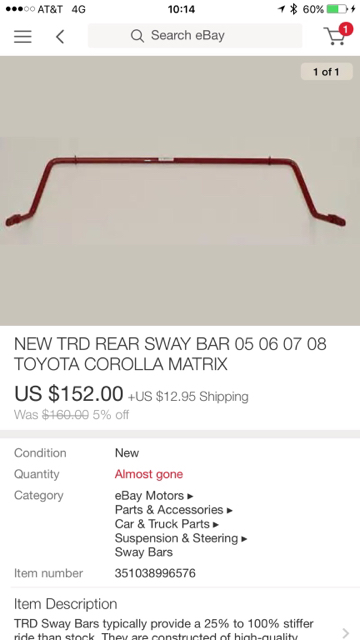

    [​IMG]

    I found this post from 4 years ago and it seems that it's a direct fit
    Rear Sway Bar | Page 3 | PriusChat



    iPhone ?

    #1 LamboGuy, Dec 20, 2015
  2. 69shovlhed

    69shovlhed Surly tree hugger

    Joined:
    May 13, 2012
    2,170
    746
    0
    Location:
    Delaware
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    if that picture is what you bought, it doesn't fit in the stock location or use the stock mounting bolts-- if it fits at all. did it come with installation instructions? the trd replacement bar or progress bar are direct replacements and they work good. take about 5-10 minutes to install.

    #2 69shovlhed, Dec 20, 2015
  3. LamboGuy

    LamboGuy Junior Member

    Joined:
    Nov 23, 2015
    53
    21
    0
    Location:
    92008
    Vehicle:
    2008 Prius
    Model:
    II
    The image is from the Ebay listing. The part number is the one I mentioned above and the seller replied back saying it will fit. Many time they use generic photos so I don't know if this is the actual product.

    iPhone ?

    #3 LamboGuy, Dec 22, 2015
    Last edited: Dec 22, 2015
  4. 69shovlhed

    69shovlhed Surly tree hugger

    Joined:
    May 13, 2012
    2,170
    746
    0
    Location:
    Delaware
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    i have seen a picture of an add-on bar which works with the stock bar; I don't know if that's what he's selling, but I would ask him to take a picture of the bar he's selling or at least verify it does replace the stock bar and fits in the stock location. trd does make a heavier replacement bar for the corolla and matrix. perhaps you can find a pic online of the bar with your part number.

    #4 69shovlhed, Dec 22, 2015
  5. jeff652

    jeff652 Senior Member

    Joined:
    Feb 6, 2014
    597
    623
    0
    Location:
    Idaho
    Vehicle:
    2005 Prius
    Model:
    II
    The sway bar has no end links or bushings. You do not need to replace anything other than the bar. just be sure to torque the bolts enough. I think it is around 60 ft lbs. Anything less and the bolts will work loose and the bar will start to rattle.

    #5 jeff652, Dec 30, 2015
  6. LamboGuy

    LamboGuy Junior Member

    Joined:
    Nov 23, 2015
    53
    21
    0
    Location:
    92008
    Vehicle:
    2008 Prius
    Model:
    II
    Thank you guys, the part number was correct and the bar wasn't the one in the photo/ I received it and installed it yesterday!


    iPhone ?

    #6 LamboGuy, Dec 30, 2015
  7. 69shovlhed

    69shovlhed Surly tree hugger

    Joined:
    May 13, 2012
    2,170
    746
    0
    Location:
    Delaware
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    torque spec is way more than 60 ft/lbs. can't remember exactly what it was though... but then I just banged it on with my impact gun.

    the bar works damn good don't it? just wait till you replace the front. its like a whole different car!

    #7 69shovlhed, Dec 30, 2015
  8. LamboGuy

    LamboGuy Junior Member

    Joined:
    Nov 23, 2015
    53
    21
    0
    Location:
    92008
    Vehicle:
    2008 Prius
    Model:
    II
    The torque spec iirc was something like 146 lbs. ft!!!

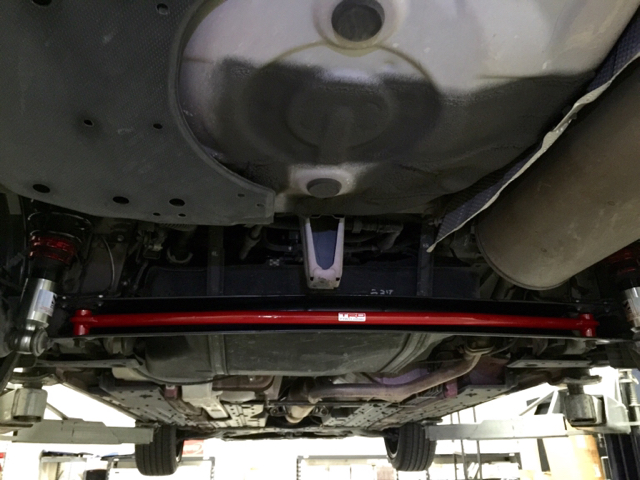

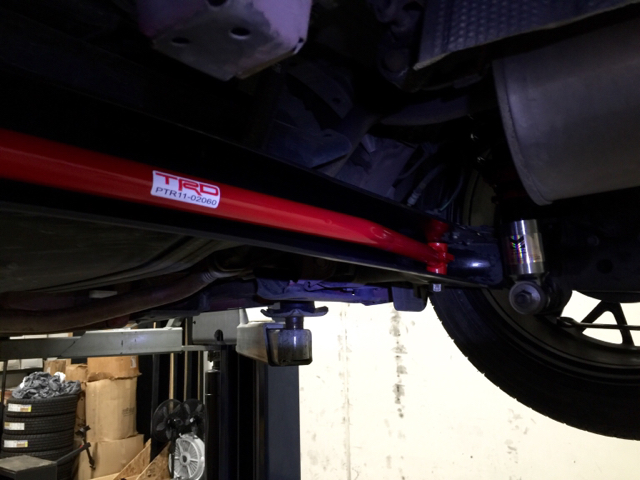

    Yes, the car has been transformed with the stiffer springs and big rear sway bar!


    iPhone ?

    [​IMG][​IMG]


    iPhone ?

    #8 LamboGuy, Dec 31, 2015
