HID install help

Discussion in 'Gen 2 Prius Accessories & Modifications' started by PriusNP, Jan 28, 2013.

  1. PriusNP

    PriusNP Junior Member

    Joined:
    Jan 10, 2013
    85
    17
    0
    Vehicle:
    2004 Prius
    Model:
    II


    I have halogen set up and now have the HID kit.

    My concern is since the battery is in back where can i install HID kit to in front without going to the back of prius.

    Thanks in Advance

  2. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring

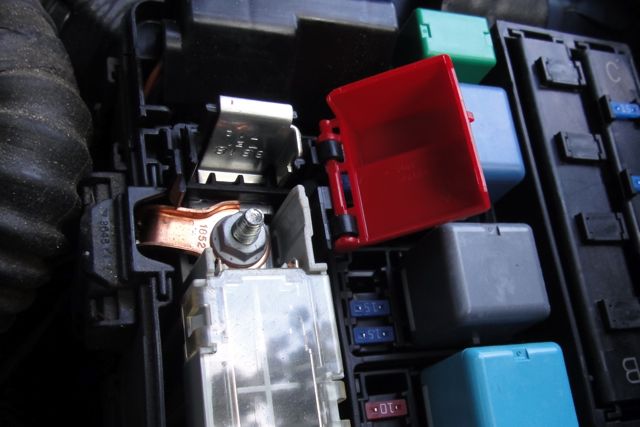

    You can tie into the positive terminal used for jump-starting your car instead of running it all the way to the back...

    [​IMG]

  3. PriusNP

    PriusNP Junior Member

    Joined:
    Jan 10, 2013
    85
    17
    0
    Vehicle:
    2004 Prius
    Model:
    II
    Hi

    Justdidit Thanks

    I did not even know that was there i have to look into that.

    another question on my can my prius just be jump started in the event if i need too?

    once again thanks the picture helped.

  4. 2k1Toaster

    2k1Toaster Brand New Prius Batteries

    Joined:
    Feb 14, 2010
    6,035
    3,854
    0
    Location:
    Rocky Mountains
    Vehicle:
    2006 Prius
    Model:
    Three
    First, if you just put a HID kit into your halogen reflectors, slap yourself and rip them out. Either buy some projectors, or retrofit.

    And yes that is the jumpstart terminal. The entire point is to allow access to jump the car in the event it is needed without having to access the auxiliary battery in the passenger side triangle panel in the rear hatch. Be warned! Reverse polarity on the Prius is a $$$$ deathwish. Jump only if you have to, and take care in doing so. The tow truck driver is not someone to trust doing this.

  5. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Why? My 2008 came with Toyota OEM HID and their not projectors....
    [​IMG]

    but having said that...My new retrofit Mini H1s BLOW the OEM HID kit out of the water for light output. Check out the link in my Signature.

    [​IMG]

  6. 2k1Toaster

    2k1Toaster Brand New Prius Batteries

    Joined:
    Feb 14, 2010
    6,035
    3,854
    0
    Location:
    Rocky Mountains
    Vehicle:
    2006 Prius
    Model:
    Three
    You do realize that reflector HIDs are different than the reflector halogens right? They are not the same design as the halogen. They look similar, but if you look closely they are difference and you will notice the light thrown up is a different proportion to the light thrown up with the stock halogen reflectors.

  7. PriusNP

    PriusNP Junior Member

    Joined:
    Jan 10, 2013
    85
    17
    0
    Vehicle:
    2004 Prius
    Model:
    II
    Justdidit

    Was it difficult to do the retrofit? I mean getting the reflector to fit

    I Plan to do the same.

  8. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    The reflector is different? Seems like that would be a lot of unnecessary hassle when Toyota made the assembly.

    What is physically different?
    [​IMG]

    I have a OEM HID assembly and a non-HID. I'll have to compare....

  9. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Not really - No cutting required with the Mini H1 nor the D2S - both very popular and easy to do. Here is some good reading material if your planning on doing so:

    Headlight projector retrofit - HIDs to the max! | Page 20 | PriusChat

    HID Headlight Retrofits | PriusChat

    My Headlight Mods: Mini H1, Blacked Housing and LEDs | PriusChat

    Mini H1 Projectors + 55W Ballast Retrofit All Done! | PriusChat

  10. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    I stand corrected..
    OEM HID reflector vs Halogen reflector
    [​IMG]
