Homemade DIY LED DRL - a long journey

Discussion in 'Gen 2 Prius Accessories & Modifications' started by 2009Prius, Jul 29, 2010.

  1. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,702
    479
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    I was inspired to this project by this post/thread:
    http://priuschat.com/forums/gen-ii-prius-modifications/72592-led-bulbs-my-2008-a-12.html#post1082806
    where a fellow PCer found this:
    Hella LEDayLine Stylish LED Daytime Running Lights DRL Kit by iJDMTOY
    at a whopping $149.99 price tag, and it's not even a real Hella, just "Hella Style". Real Hella costs a lot more; for example $236.95 at this site:
    Hella Daytime Running Lights | Lowest Price Guarantee
    which interestingly is lower than the $278.95 at amazon.com.

    Not wanting to spend $$$ I thought I would try out the dirt cheap DealExtreme.com "DX" imitation:
    DealExtreme: $9.17 Super White 6-LED Decorative LED Strips for Vehicles (2-Pack)
    and sure enough I wasted the $9.17. It lighted up alright but not very bright at all - the 6 LEDs seemed dimmer than the single LED keyring light:
    DealExtreme: $4.58 White Flashlight Keychain 22000mcd 10-PACK

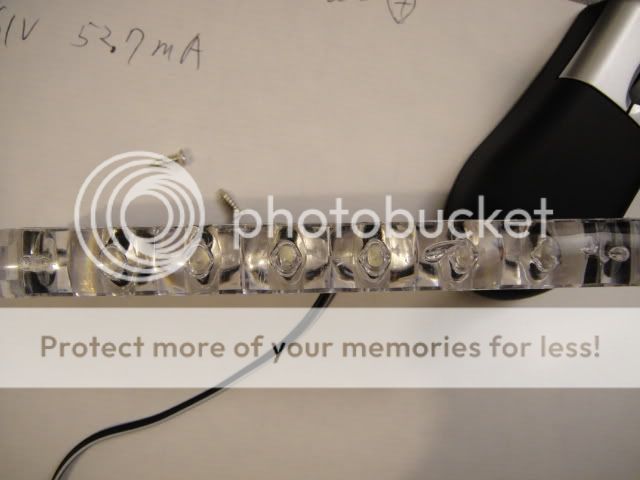

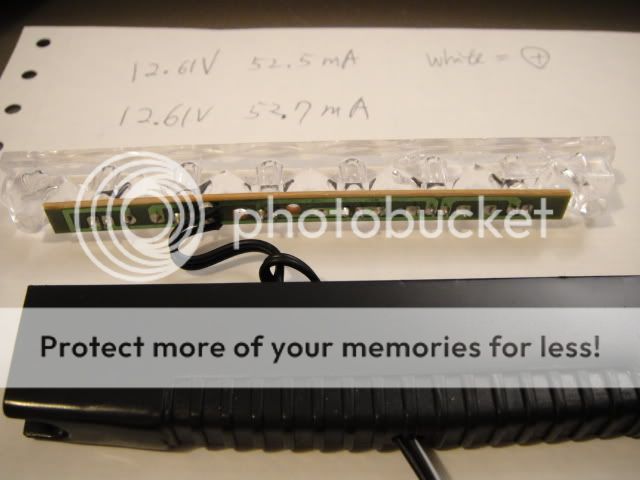

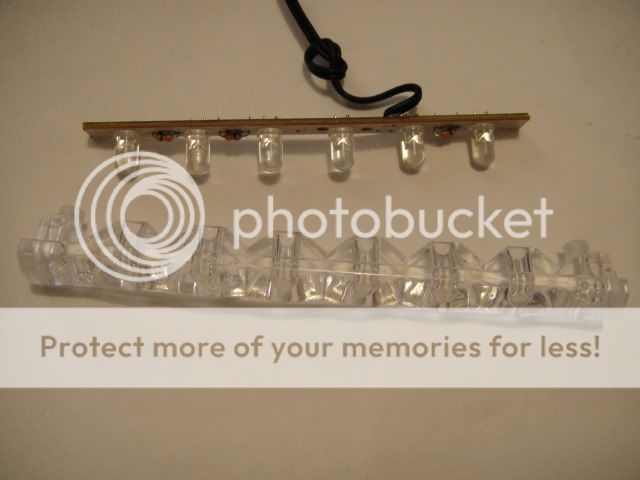

    Upon further inspection I found that the cheaply made lens causes the light to diverge too much - without the lens the 6 LEDs shine much brighter. The nice compact design did give me some inspiration: it is thin enough to fit in one of the Prius grill gaps without any cutting. Here are some pictures:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    So I started the process of making my own LED DRL. The goals:

    • thin enough to fit in a grill gap
    • minimal power consumption
    • minimal glare --> narrow angle beam
    • long lifetime
    • low cost --> no special drivers, optics, heat sink etc.
    This quickly narrowed the choice down to 5 mm LEDs as opposed to power LEDs.

    I looked into LED lifetime tests and did some tests myself to confirm once again the saying: "You get what you paid for". The cheap LEDs from DX and eBay do not last long. They may be OK for flashlights that don't get turned on much. For long life daily use I went for the name brand Cree and got some narrow angle 5 mm LEDs.

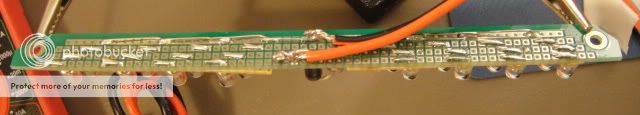

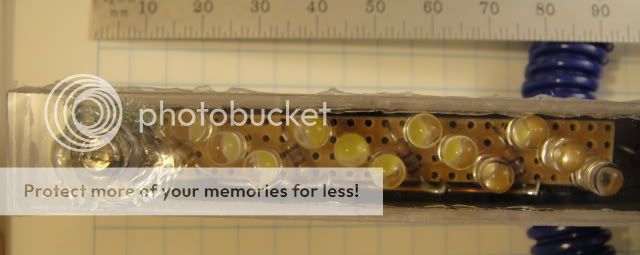

    I cut up perfboards and soldered the components:
    [​IMG]

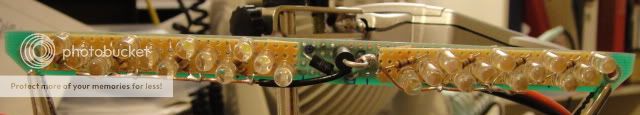

    I put 24 LEDs on each lamp:
    [​IMG]

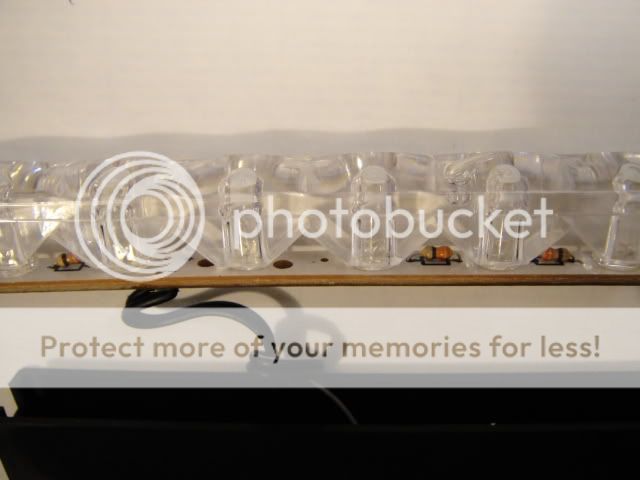

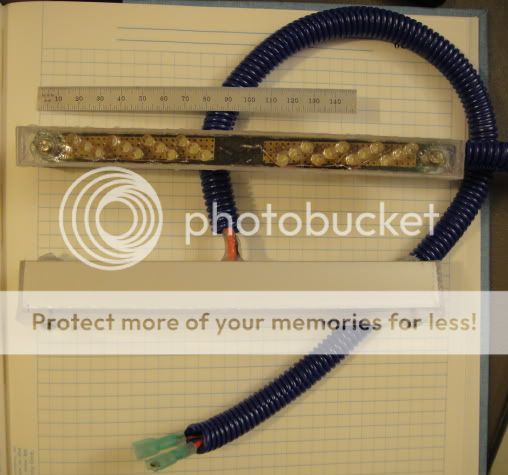

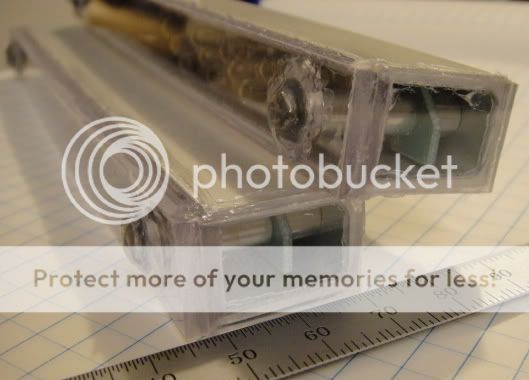

    I learned that heat is the killer of LEDs so I used aluminum for the enclosure and polycarbonate for the front and two ends, and used silicone to seal all gaps:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

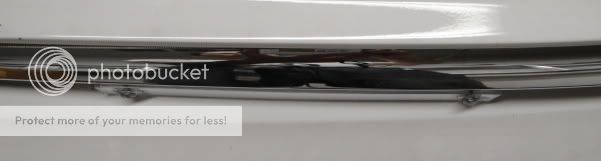

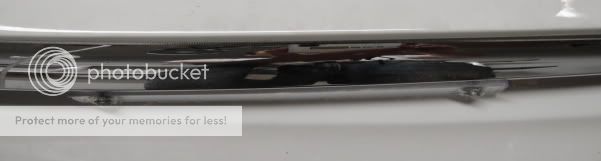

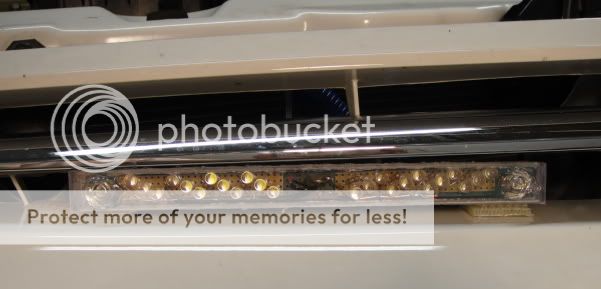

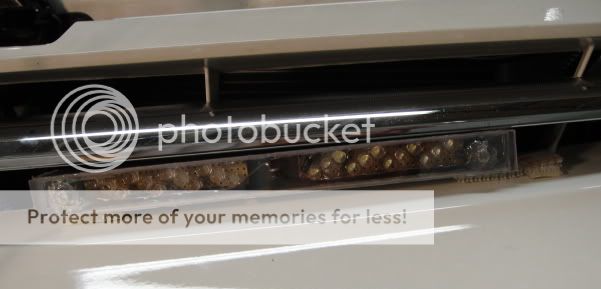

    They fit nicely in the grill with the front face about flush with the plastic chrome piece:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I learned from this post/thread to tap into the washer motor wire:
    http://priuschat.com/forums/gen-ii-...ere-should-i-connect-power-4.html#post1101755

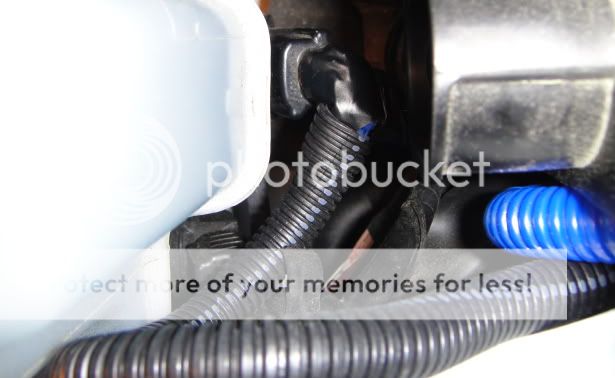

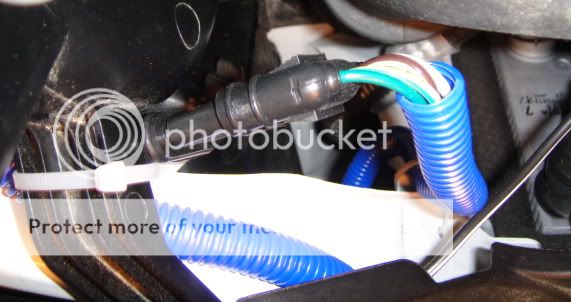

    Here are some pictures of the wiring. Washer motor:
    [​IMG]

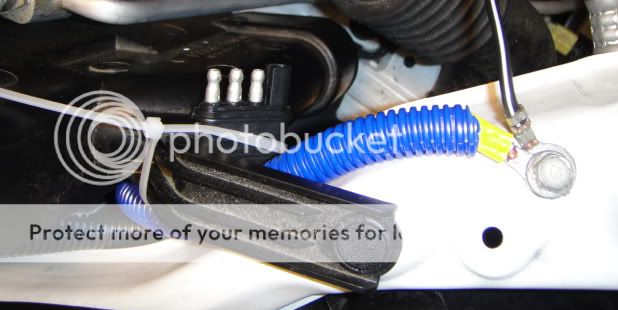

    Ground and trailer light connector (not connected)
    [​IMG]
    now connected:
    [​IMG]

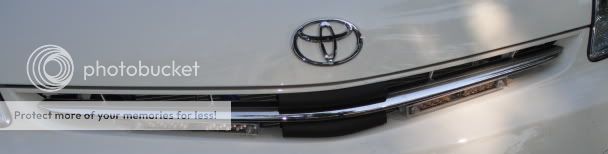

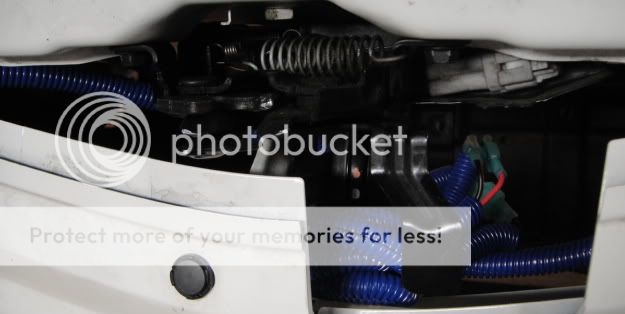

    connections at front of hood:
    [​IMG]

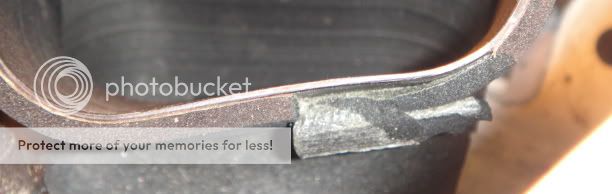

    In the process of removing the air intake pipe to access the washer motor connector I also discovered yet another sign of descending Toyota quality: the factory worker did not take good care in mounting the pipe and ripped the insulation and folded the ripped piece back down. Here is a picture:[​IMG]

    I took a video of the lights at about 7 car lengths away under bright sunlight to minimize overexposure. I ran the tests in IGN-ON mode and then repeated in READY mode. I turned on the turn signals, parking lights, low beam, and flashed the high beam. The result is within expectation. The parking light is almost invisible. The LED DRL is slightly dimmer than the low beam and the turn signals. The high beam is of course the brightest. This will be the first time I use photobucket.com for video and let's see if it works. Well it does not work. Try direct link here. Still doesn't work! Please click on the title and it should bring you to the photobucket.com website to see the video. Sorry for the inconvenience.

    [ame="http://s911.photobucket.com/albums/ac318/2009Prius/LED%20DRL/?action=view&current=Gen2Prius_DIY_LED_DRL_M4V01392_web.mp4"]LED DRL :: Gen 2 Prius DIY LED DRL test video by 2009Prius - Photobucket[/ame]

    :)
