How to clean clogged EGR cooler?

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by anonymous, Jul 22, 2018.

Tags:
  1. Blake2100

    Blake2100 Junior Member

    Joined:
    Sep 8, 2019
    13
    4
    0
    Location:
    Kansas
    Vehicle:
    Other Hybrid
    Model:
    N/A
    I did mine today. 160,000 miles and completely clogged. I used carb cleaner and pressure washer methods but eventually ended up just using a metal rod and dawn dish soap. You could say my cooler was 98% clogged. Worse than the cooler pictured in earlier post. What do i gain from doing this? Better mpg, emissions, lower combustion temps?

    Mendel Leisk likes this.
  2. ASRDogman

    ASRDogman Senior Member

    Joined:
    May 29, 2018
    3,098
    1,895
    0
    Location:
    Indian River County, Florida
    Vehicle:
    2010 Prius
    Model:
    Two
    Oven Cleaner does a great job, and less work. You might still have to use the metal rod,
    but the oven cleaner softens it up.
    The main gain is less back pressure of the head gasket. I didn't gain any mpg's from cleaning mine.
    But it did run smoother this last time. I also notice smoother and faster acceleration.


    #102 ASRDogman, Apr 4, 2020
    Last edited: Apr 4, 2020
    Tim Jones and Cosmo Tigato like this.
  3. Mendel Leisk

    Mendel Leisk Sunday driver DIY’r

    Joined:
    Oct 17, 2010
    42,584
    30,473
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    The last mainly, which hopefully means a longer life for your head gasket.

    Did you do the intake manifold too, it's really the final leg of the EGR circuit, from where the EGR pipe connects to the small diameter passages at each port. Clean the ports too: With the ports, I wouldn't spray anything in, just spray a cloth and wipe. And take it easy around the fuel injector tips.

    #103 Mendel Leisk, Apr 4, 2020
    Last edited: Apr 4, 2020
  4. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    14,482
    7,954
    90
    Location:
    Western Washington
    Vehicle:
    2012 Prius
    Model:
    Three
    Much longer engine life.

    Tim Jones and Cosmo Tigato like this.
  5. Blake2100

    Blake2100 Junior Member

    Joined:
    Sep 8, 2019
    13
    4
    0
    Location:
    Kansas
    Vehicle:
    Other Hybrid
    Model:
    N/A
    Yes i did intake manifold a couple weeks back. I worked backwords for some reason. Intake, tube, egr, cooler.

    Mendel Leisk likes this.
  6. Michael Craig

    Michael Craig Junior Member

    Joined:
    Jul 30, 2018
    28
    45
    0
    Location:
    Oceanside, Ca
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base
    My friend has around 220k on his ‘12 PIP. He bought a used/cleaned egr and cooler before hand. This way, no down time cleaning, soaking, etc. Since a couple of his family members and friends have Prii, and all need this done, there will be a clean egr and cooler to swap in to speed up the process. I have about 130k on my ‘13 PIP. Figured it could use some love and knocked this out today. I used my friend’s egr cooler. Yesterday, I had my 3000 psi Honda pressure washer out and decided to blast the carbon buildup out of the cooler. This worked great. Make sure to stand to the side kinda when doing this. There was a lot of blow back at first and all kinds of carbon deposits spilling out. After about a minute, I had a good flow of water passing through it. I continued to power wash it from both ends of the cooler for about 4-5 minutes. This got the majority of the gunk out. After, I sprayed it out a handful of times with carb cleaner and then let it sit.

    My install went well. Cleaned up the my egr and pipe really quick, and reassembled using his cooler. My cooler was fairly clogged up. Now it’s pressure washed and cleaned, ready for the next Prius.

    mikey_t and Raytheeagle like this.
  7. Tim Jones

    Tim Jones Active Member

    Joined:
    Jul 17, 2018
    838
    331
    3
    Location:
    SE Texas
    Vehicle:
    2013 Prius v wagon
    Model:
    LE AWD-e
    Have you got a Catch Can yet?

    Michael Craig and Mendel Leisk like this.
  8. Blake2100

    Blake2100 Junior Member

    Joined:
    Sep 8, 2019
    13
    4
    0
    Location:
    Kansas
    Vehicle:
    Other Hybrid
    Model:
    N/A
    I have one that i bought for my other vehicle that i never installed so its going to get installed on the prius next weekend. I'm still trying to get my mpg understood because traveling hwy speed (77mph) im lucky to get 40 on long distance drives. Maybe that normal though. Maybe the extra weight of the solar package has something to do with it? Probably my damn cheap tire purchase lol.

  9. anonymous

    anonymous Member

    Joined:
    May 18, 2015
    136
    81
    0
    Location:
    California/Nevada
    Vehicle:
    2011 Prius
    Model:
    II
    wait does the gen2 have both cam shafts adjustable or only the intake one?

    but anyway I was just thinking that maybe uncooled EGR is better than clogged EGR; I have reasons to suspect that it might but don't have a way to find out for sure besides trying it myself

  10. ASRDogman

    ASRDogman Senior Member

    Joined:
    May 29, 2018
    3,098
    1,895
    0
    Location:
    Indian River County, Florida
    Vehicle:
    2010 Prius
    Model:
    Two
    Driving 77mph is why your mps's are lower. As it would be with any vehicle.
    Just driving 70, would improve your mileage. Driving 65, it would be even better.
    Driving 35mph would greatly improve your mph. But that's too slow for the highway.
    And it would take forever to get anywhere!
    And slower would also improve it. But on the highway, there is a safety factor where you have
    to balance the speed with safety.
    From what I've read in Prius Chat, the ones that seem to have a more clogged egr cooler, are the
    ones that drive a lot of city driving, or speed in excess of 70mph consistently.
    But as always, results may vary....



    Tim Jones, Cosmo Tigato and Blake2100 like this.
  11. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    11,721
    8,456
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    As far as I know, every Prius generation has an adjuster on the intake cam, and no Prius generation ever had one on the exhaust.

    Cosmo Tigato likes this.
  12. Tim Jones

    Tim Jones Active Member

    Joined:
    Jul 17, 2018
    838
    331
    3
    Location:
    SE Texas
    Vehicle:
    2013 Prius v wagon
    Model:
    LE AWD-e
    Make sure the hoses are high quality reinforced. Don't use heater hose as it gets warm and can collapse.
    And just as well install new PCV valve. I had to use electrical tape around one of the nipples on the Catch Can as the hose from the PCV was just a hair to big.

    Blake2100 and Cosmo Tigato like this.
  13. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    14,482
    7,954
    90
    Location:
    Western Washington
    Vehicle:
    2012 Prius
    Model:
    Three

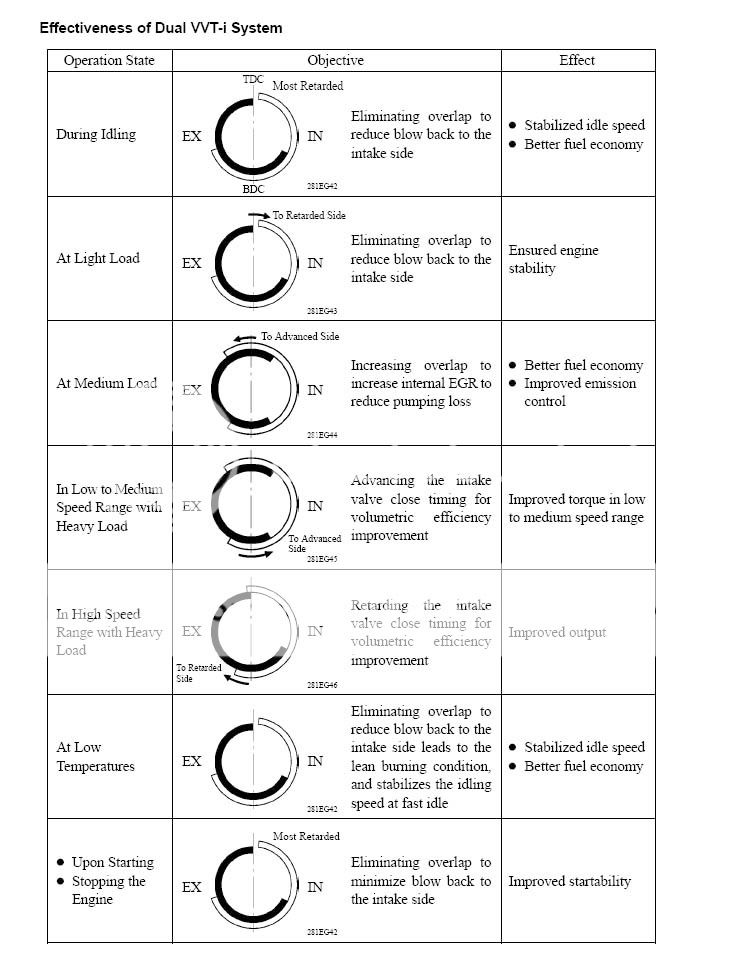

    What about this chart?
    [​IMG]
    Different format here too.

    #113 fuzzy1, Apr 6, 2020
    Last edited: Apr 6, 2020
    Robert Holt likes this.
  14. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    11,721
    8,456
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Well, the "different format" second link looks like a correct chart for a Gen 2, showing the intake timing moves around and the exhaust timing doesn't. It's followed by a post from Trollbait confirming that even in Gen 4 the adjustment is still intake-only.

    The chart copied above, from the first linked thread, is for an Otto-cycle 2ZR-FE engine as used in some other Toyota models, with dual VVT-i. It was posted in February 2009 by someone speculating that the 2010 Gen 3 Prius 2ZR-FXE might also turn out to use dual VVT-i.

    It didn't.

    Robert Holt and Cosmo Tigato like this.
  15. anonymous

    anonymous Member

    Joined:
    May 18, 2015
    136
    81
    0
    Location:
    California/Nevada
    Vehicle:
    2011 Prius
    Model:
    II
    Huh, somehow I had the belief that it did. And some research confirms that it doesn't:
    upload_2020-4-6_14-6-54.png upload_2020-4-6_14-6-5.png

    I think I got the internal EGR idea from this post Does my Prius have an EGR system? | Page 2 | PriusChat; idk where I got the idea about adjustable exhaust cam (maybe I inferred it).

    But are there any other engines with dual VVT-i that don't have an external EGR cooler and employ internal EGR?
    Wikipedia section on dual VVT-i has no mention of EGR, but that chart right up there in port #113 _does_ mention internal EGR.

  16. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    11,721
    8,456
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Yeah, I think the notion in that thread was mistaken.

    The above chart is clearly from the New Car Features Manual (more info) for some other Toyota car model that uses the 2ZR-FE Otto-cycle engine. I can see where the chart says "internal EGR" for the case with the exhaust closing and intake opening overlapped. It might still be interesting to go look at the rest of that New Car Features section to see if it says anything more about said "internal EGR", in particular whether it really achieves the same range of advantages that conventional EGR gets specified for, or is more just a highfalutin' term for something they did to reduce pumping losses, as it says in the chart.

  17. rshimizu12

    rshimizu12 New Member

    Joined:
    Feb 14, 2021
    1
    0
    0
    Location:
    San Diego
    Vehicle:
    2010 Prius
    Model:
    Two
    Has anyone tried carburetor cleaner or acetone....?


  18. Mendel Leisk

    Mendel Leisk Sunday driver DIY’r

    Joined:
    Oct 17, 2010
    42,584
    30,473
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    I think I did, after lacklustre results with brake cleaner. No better.

    Concentrated/hot oxi-clean solution, stopper one end and pour it in, wait an hour, rinse and repeat, got mine like-new shiny with about 5 repetitions.

    Less toxic too; you can do this in the laundry sink.

    Cosmo Tigato, fuzzy1, SFO and 2 others like this.
  19. Raytheeagle

    Raytheeagle Senior Member

    Joined:
    Jul 1, 2016
    10,806
    14,807
    0
    Location:
    Bay Area, California
    Vehicle:
    2019 Prius Prime
    Model:
    Prime Plus
    Tried and no where near as effective as a pressure washer;).

    That does the trick quickly and removes the deposits:).

    Give that a shot (y).

    SFO, mikey_t and anonymous like this.
  20. Mendel Leisk

    Mendel Leisk Sunday driver DIY’r

    Joined:
    Oct 17, 2010
    42,584
    30,473
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    We got a bottle of sodium hydroxide (lye) for wife’s soap making hobby; maybe I’ll give that a try next time.

    Raytheeagle likes this.
Loading...
