Planning to replace front dash speakers ... what do i need?

Discussion in 'Gen 3 Prius Audio and Electronics' started by danmm7, Jan 8, 2016.

  1. danmm7

    danmm7 Junior Member

    Joined:
    Jan 29, 2014
    10
    3
    0
    Location:
    San Francisco, CA
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    I bought a pair or the Pioneer TS-A878 3.5" speakers to replace the small speakers/tweeters on the dashboard in my 2014 Prius Plug-in. One of the stock speakers is blown.

    Here is a link to the speakers' specs:


    Aside from modifying the mounting position (new speakers are deeper), is there anything else i need to do to change connectivity or do i do direct plug in?

    I am using the stock OEM head unit.
    Front and rear door speakers were already replaced with aftermarket speakers.

    Do i need to connect any inline filters, resistors, etc to the dash speakers or i just do a plug and play?
    My key goal is not to kill/overload the stock head unit and also - get some decent sound.


    Thanks!

  2. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    690
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    I guess it would be an involved job, please take pictures for our visual entertainment and posterity.

  3. Barbersweb

    Barbersweb New Member

    Joined:
    Jan 16, 2015
    1
    0
    0
    Vehicle:
    2015 Prius
    Model:
    Two
    It's going to depend on efficiency of new speakers. Most project's I've seen, including my own, needed a resistor (I used a 4 ohm) to balance them out with the door since the front door and dash are in parallel. A cap to protect them from the low end is a good idea. The stock units have a cap.

  4. lopgok

    lopgok Member

    Joined:
    May 2, 2012
    177
    29
    0
    Location:
    unknown
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    It is pretty straightforward to swap, not an 'involved job'.
    You should refer to spiderman's pdf guide on how to do it.

    If you want lower frequencies to come from the dash (which I think is a good idea), you will want a bigger 'bass blocker' capacitor. Be sure it is a non-polarized one if you go to an electronics store for it.
    If you use a bigger bass blocker capacitor, you might consider adding a 2 or 4 ohm resistor. This will reduce the volume coming from the dash, but more important, it will increase the impedance (reduce the load) on the head unit. This will minimize the likelihood of the head amp failing due to a low impedance load.

  5. scrappy

    scrappy Active Member

    Joined:
    Mar 24, 2015
    125
    306
    0
    Location:
    Orange County, CA
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    I followed spiderman's guide and did solder in resistors, though I'm not sure that was really necessary. These speakers were a great improvement to the sound with the stock head unit.
    Click here for my post with a few pics on the install on page 354 in the "What did you do to ur Gen III Prius today????" thread

    Rebound likes this.
  6. Sfcyclist

    Sfcyclist Senior Member

    Joined:
    Oct 23, 2012
    1,621
    374
    0
    Location:
    SF, CA
    Vehicle:
    2013 Prius
    Model:
    Persona

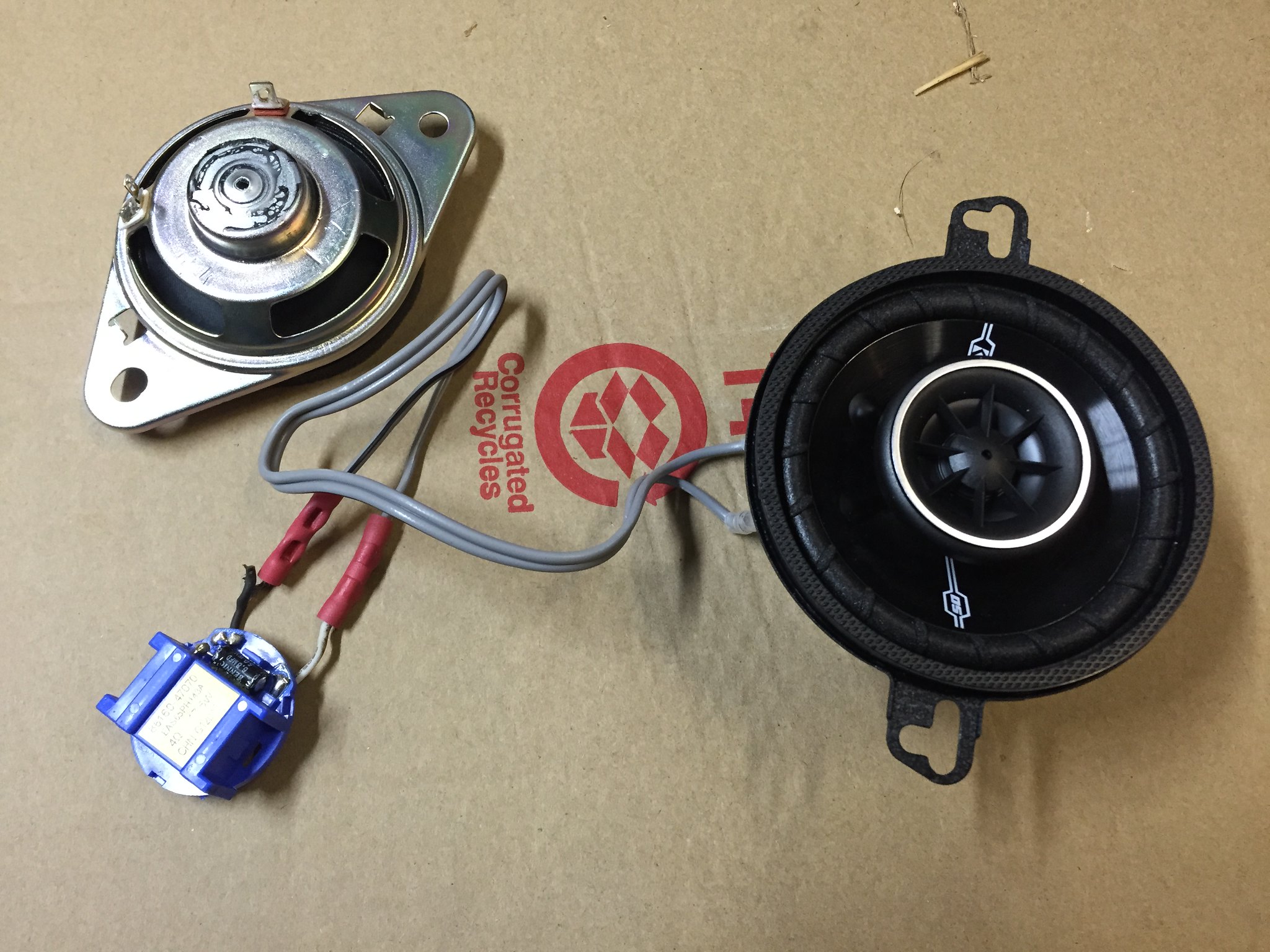

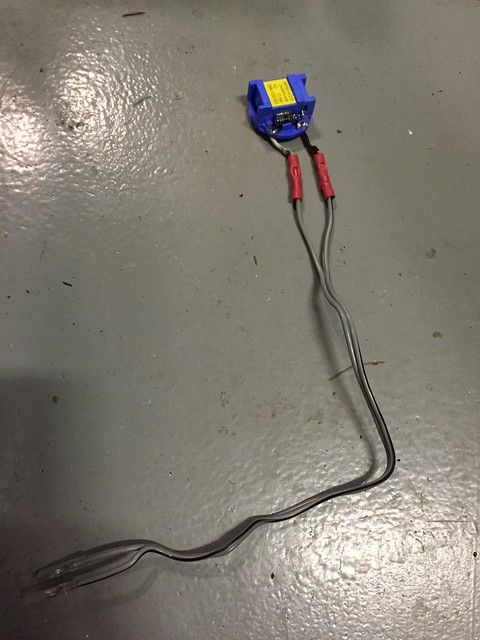

    I just did this last night.. You'll need to figure out how to replace the jumper at the dash speakers since it send signal back out the doors. I reused stock connector and bass blocker(capacitor). Connector is glued on the back. Just desolder THEN pry off gently.

    [​IMG]Kicker 3.5" install by sfcyclist2012, on Flickr

    [​IMG]Kicker 3.5" install by sfcyclist2012, on Flickr

  7. eunique

    eunique Member

    Joined:
    Dec 24, 2015
    66
    89
    0
    Location:
    US
    Vehicle:
    2013 Prius
    Model:
    Five
    Awesome...thanks for these posts...I just ordered some speakers for my 2013

    OnePlus Two ?

  8. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,719
    2,338
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I'm replacing the door speakers and I was thinking of just bypassing the dash speakers, because they rattle. What's your experience with higher-powered dash speakers? Do you get any rattling up there?

    Or maybe my dash squakers are blown?

  9. scrappy

    scrappy Active Member

    Joined:
    Mar 24, 2015
    125
    306
    0
    Location:
    Orange County, CA
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    The dash speakers were a big improvement in the quality of the sound I hear, much better highs and mid-range that I really notice. I think you'd regret simply unplugging them.
    I also replaced the stock front door speakers with good 6x9's and I left the rear doors with the stock speakers.

    eunique likes this.
  10. eunique

    eunique Member

    Joined:
    Dec 24, 2015
    66
    89
    0
    Location:
    US
    Vehicle:
    2013 Prius
    Model:
    Five
    I had to reread your posts...grrrr! Didn't get the capacitors yet. My speakers and harness arrived but can't install it since I don't have everything.

    I'll just have to wait

    OnePlus Two ?

    #10 eunique, Feb 26, 2016
    Last edited: Mar 2, 2016
  11. scrappy

    scrappy Active Member

    Joined:
    Mar 24, 2015
    125
    306
    0
    Location:
    Orange County, CA
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    Although I did solder a capacitor in to block frequencies below 400Hz, I'm not certain that was really necessary, as these Pioneer's specs say they're good from 60Hz to 28kHz.

    Definitely do not reuse the stock capacitors with these speakers because the stock capacitor on the blue connector is more for a tweeter and will eliminate everything below around 6kHz and you'll lose the nice mid-low and mid-range sound that these speakers produce.

    Did you get a harness that fits the factory dash speaker plug? If so, I'd probably just install the speakers without bass blocker capacitors.

    #11 scrappy, Feb 27, 2016
    Last edited: Feb 27, 2016
  12. eunique

    eunique Member

    Joined:
    Dec 24, 2015
    66
    89
    0
    Location:
    US
    Vehicle:
    2013 Prius
    Model:
    Five
    I installed what the stock ones had.. Removed them from sqwakers and soldered them onto new ones because the wire harness I got from Crutchfield didn't match up. They sound better from stock.

    I will remove the stock capacitors once I get better ones like you got.

    OnePlus Two ?

    #12 eunique, Feb 28, 2016
    Last edited: Mar 5, 2016
  13. eunique

    eunique Member

    Joined:
    Dec 24, 2015
    66
    89
    0
    Location:
    US
    Vehicle:
    2013 Prius
    Model:
    Five
    [​IMG]

    OnePlus Two ?

  14. AllMightyM15

    AllMightyM15 New Member

    Joined:
    Feb 28, 2016
    23
    5
    0
    Location:
    Richmond, Virginia
    Vehicle:
    2014 Prius
    Model:
    Two
    This sounds kind of what I want to do, looking forward to the end result.

  15. eunique

    eunique Member

    Joined:
    Dec 24, 2015
    66
    89
    0
    Location:
    US
    Vehicle:
    2013 Prius
    Model:
    Five
    It's a great upgrade. You have to do it!
    I just shoehorned the 3.5" in there and was still able to snap the grille in place although with a little bump.
    I will redo it, open up the hole slightly so the speaker is flushed in and flush the grille in also

    OnePlus Two ?

  16. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,719
    2,338
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I've been thinking about this, and I don't think you're taking the best approach. Of course, your ears should be the final judge.

    As you know, you're sending the exact same signal to both the dash and front door speakers. But the door speakers are considerably larger. All things being equal, the doors should be able to put out much better bass.

    When your radio sends out, say, 25 watts of sound, bass is a considerable portion of that wattage. What the bass blockers do is let you send higher wattage without distortion, because the smaller speakers will definitely distort first.

    Just because the speaker manufacturer states his speaker can output 60 Hz, it doesn't mean that it will perform particularly well. In my home stereo, my midrange speakers are 4 1/2". And that's midrange. They can probably reproduce 60 Hz sound, but not very well.

    I'm not expert enough to know what cutoff frequency will sound best. Ideally, you'd want to be able to dial it in. But a roll off around 1 kHz to 2.5 kHz probably would work well.

  17. Sfcyclist

    Sfcyclist Senior Member

    Joined:
    Oct 23, 2012
    1,621
    374
    0
    Location:
    SF, CA
    Vehicle:
    2013 Prius
    Model:
    Persona
    I powered my 3.5" Kicker squawkers in 2 ways, parallel powered together with the door speaker and then separately with amp for door speakers. In both setup I kept the stock capacitor. As Rebound noted, if in parallel, both speakers will receive the same power. I found this set up not sound so great amplified or not. The limited speaker being the 3.5" as the door speakers clearly needs more power. Once I powered this separately, with the 3.5" running off the head unit, it was a big improvement.

    I would like to try a smaller capacitor to see if cutting off frequency lower would improve it. Overall, I am very happy with my setup as this new setup as it is in a completely different league. After spending about $200 total(speakers and amp), well worth it!

  18. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,719
    2,338
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Can you explain what you did with the amp? I'm not quite following you.

    I'm thinking I could get a 4-channel amp. But it would receive four powered speaker inputs from the Toyota head unit (which is all there is), and route the front outs to the dash/front door speakers, and the rear outputs to the rear door speakers.

    Or, maybe I could run the front outputs from the head unit directly to the dash speakers, and send the rear outputs (just 2 channels) to the amp, then send that signal to the front and rear door speakers. Is that how you did it? I couldn't find a six-channel amp.

    I did see that some people buy a second amp for bass only. I hear these damn cars rattle up and down the streets, playing very bad music and rattling the car's sheet metal apart. It seems like what a Neanderthal would do if you gave him a car, but they do it. I suppose that, if used more judiciously, the audio could sound very good.

  19. Sfcyclist

    Sfcyclist Senior Member

    Joined:
    Oct 23, 2012
    1,621
    374
    0
    Location:
    SF, CA
    Vehicle:
    2013 Prius
    Model:
    Persona
    I added a 4 channel amp. The feed for the amp are the front 2 channel outputs from head unit. The head unit also powers the front 3.5" speakers. So basically front channels from head unit is split to feed the amp and power the front speakers.

    Why would you think that a "2nd amp for bass only" would rattle up and down the street?

  20. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,719
    2,338
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Mostly because I see people who've installed giant subs in their cars playing loud thumpy music, and their cars rattle when the bass thumps.
