    After going through the forums here, I found that the information was all over the place and needed to be in one spot to make it easier for people who have just bought a new Prius C and want to change out their stereo and speakers. So, I've combined the information here as best I can:

    Stereo:

    For the stereo, in order to maintain all the OEM shit you'll need to get one that can do the minimum below:
    • USB (rear input - 5V power for OEM USB outlet)
    • Aux (rear input - Left/Right RCA or 3.5mm AUX jack)
    • Bluetooth (Streaming Audio & Microphone)
    • External Microphone
    • Steering Wheel Control
    All the rest of the stereo's features are up to you in regards to what you want (wattage, DVD playback, touchscreen, etc.), but the above features must be there to make all your car's OEM components function properly.

    For my setup, I used the following equipment for my 2012 Prius C one (base model):
    • Stereo: (1) Axxera AV614BH DVD Receiver
      • Mounting Kit: (1) Scosche TA2114B
      • Wiring Harness: (1) Metra 70-1761 Wire Harness
      • Antenna Adapter: (1) Metra 40-LX11
        • No need for Axxess ASWC-1 (steering wheel control) since its built-in
        • All the above bullet points
        • DVD Playback
    • Speakers: (4) Kicker 40CS674 6-3/4" 2-way Speakers
      • Wiring Harnesses: Metra 71-035LC (4)
      • Mounting Brackets: Metra 82-8148 Speaker Brkt (4)
        • Used for both Front and Rear speakers
    • Subwoofer: (1) Kenwood KSC-SW11 100 Watt subwoofer
      • 100 Watts
      • Fits under the passenger seat
      • Amp and Subwoofer Combined
      • Includes all needed wiring
        • Let's face it, you're driving a Prius. You don't need dual 12" subs pumping 1000 watts. All you need is some depth for the audio, nothing excessive.
    • Accessories:
      • USB/AUX Connector: (1) Axxess AX-USB-35EXT
        • This directly replaces the OEM USB/Aux connector in front of the passenger seat
        • Fits perfectly
        • Connect the USB input the rear input of your stereo
        • Connect the 3.5mm input into the rear L/R RCA or 3.5mm jack input of your stereo
    *** YOU DON"T NEED ANY OTHER PARTS OTHER THAN WHAT IS ABOVE ***

    ------------------------------------------------------------
    Connecting everything up:
    ------------------------------------------------------------
    Installation Order:
    1. Remove dashboard by stereo (all pressure plates, no screws - use a plastic removal tool)
    2. Remove factory stereo (phillips head screwdriver)
    3. Install your speaker brackets and speakers
    4. Replace the USB/Aux Connector
      1. Push with your left hand from behind the dashboard outwards towards the passenger seat - it will release and come out. Disconnect the clip connector.
    5. Connect your factory harness to the aftermarket, stereo harness
    6. Setup steering wheel controls
      1. Pings 21 and 22 on the 28 pin adapter
    7. Connect your antenna adapter
    8. Attach stereo mounting Kit
    9. Re-Install stereo
    10. Power on car and test stereo functions
    11. Setup steering wheel control

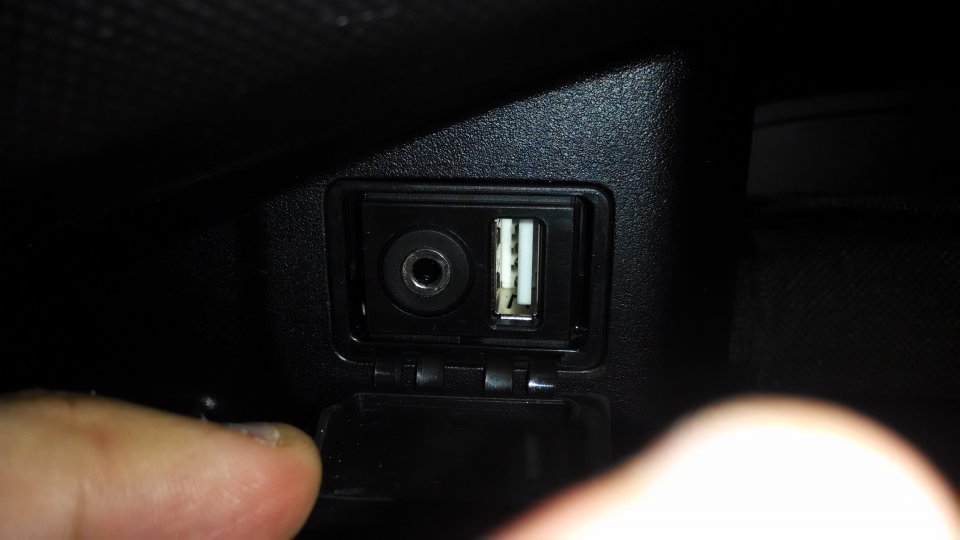

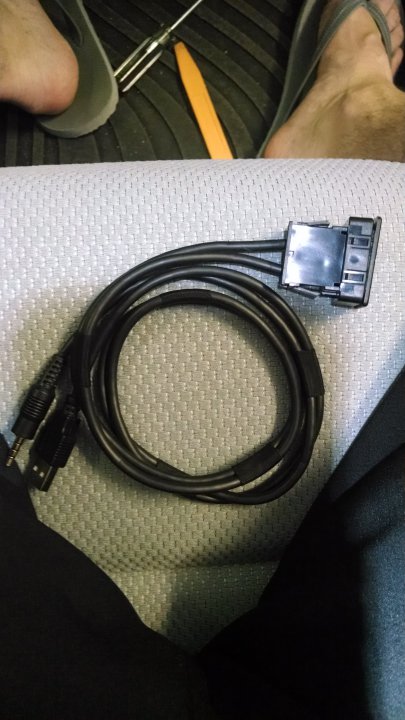

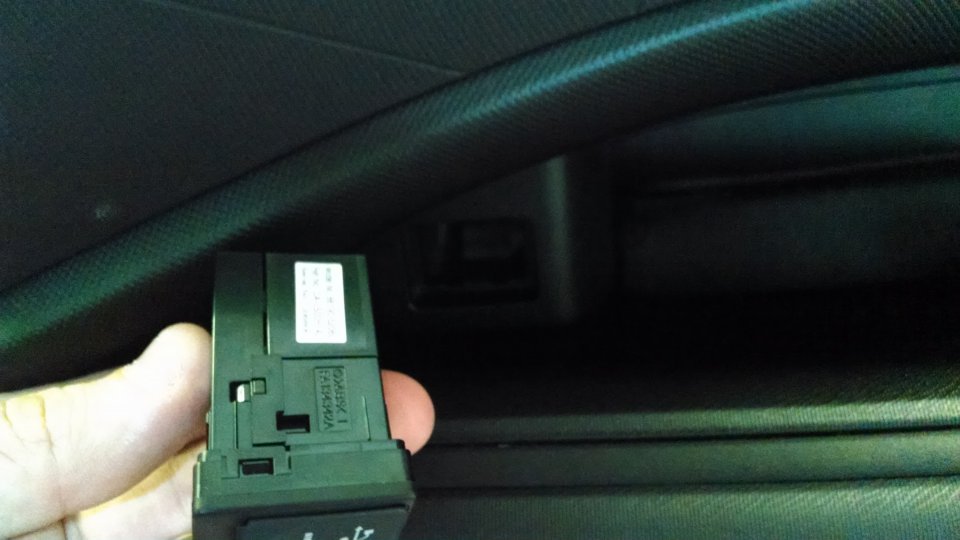

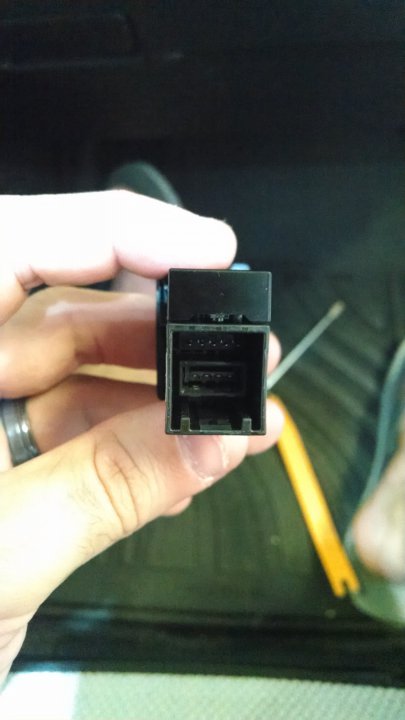

    These images show the replacement of the USB/Aux connector:

    IMG_20140529_165905814.jpg IMG_20140529_170029386.jpg IMG_20140529_170054729.jpg IMG_20140529_170215223.jpg

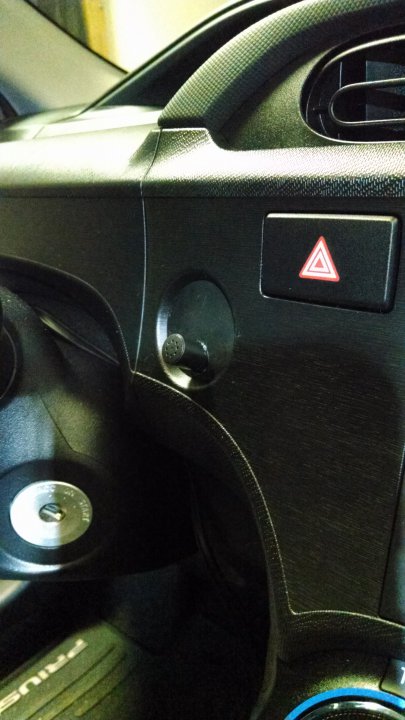

    This is how I wired up the external microphone. since my car didn't come with a push button engine I used the plastic insert with a Dremel and inserted the external microphone through the hole. In the end, it looked like this:
