Shudder, cylinder 3 misfire, check engine light

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by Groundpounder17, Mar 6, 2019.

  1. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    1,090
    1,254
    28
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    So I just added it up, just using MSRP, $550 for rod bearings, main bearings, rings, and one con rod. Or $965 if the crankshaft is toast.

  2. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three

    Think I need the updated pistons? Were they updated in the TSB or was it just the ring set?

  3. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    1,090
    1,254
    28
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    The piston and rings both got updated part numbers. I believe the part number should be cast into the piston. You could verify whether yours is the updated number or not.

    Mendel Leisk likes this.
  4. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three
    I bought mine in early 2014 so I bet I don’t have the updated. I’m guessing my dealer could run my vin and tell me

  5. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    39,133
    27,846
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    This is just my cheat sheet, from going through the model years at McGeorge Toyota Parts website:


    Some bottom end specs in the attached TSB:


    Attached Files:

    padroo likes this.
  6. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three
    So I should have the updated piston but not the updated rings?

    Mendel Leisk likes this.
  7. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three
    I talked to the guy at Toyota. He shows the only TSB for me is a reprogramming one and not for the piston and rings so he thinks I have the updated pistons.
    I also talked to the engine rebuilders and they are back logged over 3 mths. I talked to my head shop guy and he says he can clean it and rehone it if needed.
    So I’m thinking my only option now is to attempt the rebuild myself or buy a new short block.

  8. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    1,090
    1,254
    28
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
  9. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    39,133
    27,846
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Yes. Again, this is just entering various model years at McGeorge Toyota website, and sarching for "piston" and ring set".

    Here's the associated TSB, the qualifying parameters. It mentions vin number ranges:


    Attached Files:

  10. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    39,133
    27,846
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
  11. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three
    I saw the TSB. For the Prius it list the change as JTDKN3DU#E1791355, mine is JTDKN3DU#E17503xx. So that would mean the change occurred after mine?

    Mendel Leisk likes this.
  12. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three

    I’m guessing it’s rebuilt

    Mendel Leisk likes this.
  13. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    1,090
    1,254
    28
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three

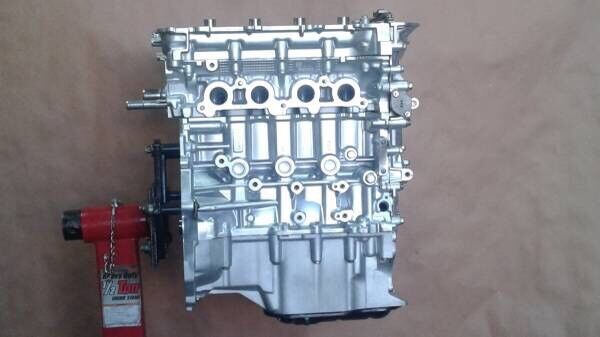

    Looks like it’s been cleaned up. Probably factory or aftermarket rings, bearings, gaskets, etc. Install your intake, fuel, ignition, valve cover, water pump, and exhaust and it’s ready to run.

    Mendel Leisk and Groundpounder17 like this.
  14. cnc97

    cnc97 Senior Member

    Joined:
    Mar 13, 2018
    1,090
    1,254
    28
    Location:
    Evansville, IN
    Vehicle:
    2010 Prius
    Model:
    Three
    I almost did this route, but because of the unknown of quality control involved in his work, and since I found this after I bought the Gen 4 motor, I would go this way if I had a reason to next time though.

  15. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three
    I’m pulling the engine tomorrow night and will disassemble and inspect everything. My plan right now is to replace the bent connecting rod, rings, rear main seal, and possibly the bearings and pistons. The head shop will hone the cylinders for me.
    I was looking at parts to order and noticed the bearings have options for mark 1, mark 2, mark 3, and mark 4. This is parts 26 and 27 in the diagram. Is this based off of the reading using the plastigage?
    Also is there anything else I should replace while I’m in there? I don’t plan on replacing the oil pump but maybe I should

  16. Groundpounder17

    Joined:
    Mar 4, 2019
    104
    74
    0
    Location:
    AR
    Vehicle:
    2014 Prius
    Model:
    Three
    FCFEBF6C-2ADD-4293-B9CF-0CFAA6158700.png I guess I forgot the diagram. Here it is

  17. RSailor

    RSailor New Member

    Joined:
    May 9, 2019
    5
    4
    0
    Location:
    Cupertino, CA 95014
    Vehicle:
    2010 Prius
    Model:
    Five
    If you are having misfires, there are two items that I would recommend doing before anything else, because they are low risk and low effort.

    1. Buy Techron fuel injector cleaner (or equivalent) and put it in your gas as directed. Do some driving. Now wait 24 hours before you start dismantling anything for repair to see if there is an improvement.

    2. Find and check the connection between your intake air filter box and the intake resonator. If you want to take them apart, check the seal and try and replace it, be my guest. But all you need to do, as a test, is wrap some 1.5 to 2 inch wide tape, tightly, all the way around the tube joint connecting the two plastic boxes together to seal the joint. Check to see if there is an improvement.

    The intake resonator on the Prius is not a muffler, and it is not superfluous piece of plastic.

    Unfortunately the ERG cooler on a Gen 3 probably needs to be replaced or cleaned every 200K miles or so. Not a fun job.

  18. The Critic

    The Critic Resident Critic

    Joined:
    Oct 28, 2005
    3,038
    2,049
    0
    Location:
    CA
    Vehicle:
    2011 Prius
    Model:
    Three
    He already finished rebuilding his engine:
    Engine rebuilt, installed, but 1 hose missing | PriusChat

    SFO and Raytheeagle like this.
  19. RSailor

    RSailor New Member

    Joined:
    May 9, 2019
    5
    4
    0
    Location:
    Cupertino, CA 95014
    Vehicle:
    2010 Prius
    Model:
    Five
    seahawkguy likes this.
  20. The Critic

    The Critic Resident Critic

    Joined:
    Oct 28, 2005
    3,038
    2,049
    0
    Location:
    CA
    Vehicle:
    2011 Prius
    Model:
    Three
    Regardless, I fail to see how either of your recommendations will resolve an active misfire.
