The battery fires at ECU sense connector thread

Discussion in 'Generation 1 Prius Discussion' started by ChapmanF, Mar 19, 2015.

  1. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    When I see four, now six, of these posted in just the last couple years on our aging Gen 1s, I wonder if it merits our attention.
    1. Russell Walker, Brisbane, April 2013 with pics. (For a while I had forgotten about this one.)
    2. lovemy02prius, near Detroit, September 2014, with pic.
    3. strawbrad, customer vehicle, Minnesota, October 2014, post #3 below.
    4. andrewedwards89, February 2015, no pic.
    5. greasemonkey007, Arkansas, March 2015, with pics.
    6. Herb Gayheart, Kentucky, January 2016, with connector and ECU pics. Story suggests warning signs treated rather cavalierly for some time before incident.
    I wonder if this is starting to be a thing (if four PriusChat threads from a population of ~ 52,000 Gen 1s could be enough to constitute a thing).

    A couple possibly relevant NHTSA complaints could be 10141958 and 10111792. (I'm not sure if that link stays valid indefinitely; if it stops working, just plug those numbers into the search - choose "ID Number" at the bottom.) I was happy to see there aren't more ... they are vastly outnumbered by complaints about the steering rack.

    PC members who are in the repair biz: how often, if ever, are you seeing batteries come in with fire damage around the sense harness/ECU connector?

    Battery rebuilders (@hybriddriveguy ?) ... are you seeing cores come back this way?

    -Chap

    Edit: include strawbrad's in list

    #1 ChapmanF, Mar 19, 2015
    Last edited: Jan 17, 2016
    depriusoto, m.wynn, SFO and 2 others like this.
  2. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV

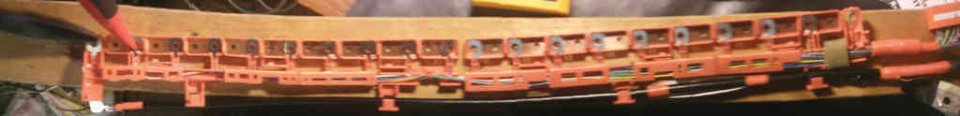

    On the specimen table today is one new, never-installed sense wire/bus bar assembly.
    The orange connector where the excitement happens is over at the right. Between the first and last skinny sense wire entering it can be a voltage difference near 318 V at full charge, but owing to the way Toyota has chosen the order of sense wires to pin positions and the geometry of the connector, the voltage gradient between any two pins (disregarding all others*) is never more than 10 volts per mm by my calculations. Details on the connector and pin order were posted earlier here. The fields at the connector are not as strong as they'd be just before the connector where all the wires are mashed together in a skinny bundle.

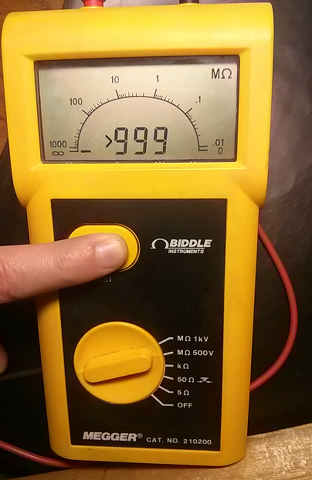

    In new condition, between all possible pairs of wires (190 of 'em), the insulation resistance tests offscale >999 MΩ measured at 500 V.
    There's surely nothing useful to learn by measuring one that's already burned up (it's already dead, Jim), but it might be interesting to get megger readings on some that have been removed from long service without burning up. Anybody?

    -Chap

    * yes, my calculation of gradients between pairs of pins "disregarding all others" is pretty much total handwaving, and it would be better to model the field of all 20 pins together and find the steepest gradient, and no, I haven't done that.

    #2 ChapmanF, Mar 21, 2015
    Last edited: Mar 21, 2015
    SFO, Fred_H and Patrick Wong like this.
  3. strawbrad

    strawbrad http://minnesotahybridbatteries.com

    Joined:
    Aug 9, 2011
    874
    848
    0
    Location:
    Minnesota
    Vehicle:
    2005 Prius
    Model:
    II
    I pulled a battery out in October of 2014 that had a burned ECU plug. The plug was so melted it came out of the ECU in pieces. About half of the modules were complete junk. Sorry but no pictures and I tossed the parts. The car was in rough shape overall. I do not have any history on the car.

    Brad

  4. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Brad,

    Thanks for the report. I've edited it into the list at the top of this thread, but I'm unsure on the details. Are you a shop and this was a car a customer brought in? Or was it something you had picked up at an auction, etc., and had no history on?

    -Chap

  5. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Just added Herb Gayheart's incident, Kentucky, January 2016. Story is interesting because of apparent problem signs treated a bit cavalierly by Herb and also by the person he had just bought the car from, going back evidently some time, maybe years....

    -Chap

    Fred_H likes this.
  6. DRACO

    DRACO Member

    Joined:
    Nov 28, 2015
    360
    72
    0
    Location:
    Rancho Palos Verdes, California
    Vehicle:
    2002 Prius
    Model:
    One
    Oh wonderful, glad I swapped the bus bar with the sensor too :eek:

  7. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    What I would love to see on this thread would be observations (either instrumental or physical/visual) of older busbar assemblies or ECUs that people have taken out when rebuilding older batteries, to try to determine their condition when they are aged and well-used but before any incidence of fire.

    Ones that have already gone boom it's kind of too late to learn much from, and my instrumental check in this thread above only proves that a brand new busbar out of the box is really good, which we probably all could have guessed. It's the condition of old-but-unburned ones that could start to tell us something.

    -Chap

  8. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    40,900
    29,360
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    "cavalierly" is the perfect word. I think Herb relishes calamity.

    I'd be hanging onto a fender, throwing up.

  9. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    I've got a spare right front fender I keep around for just that purpose, myself.

    My dream for this thread is to try to have mostly technical info on it, though. :)

    -Chap

    Mendel Leisk likes this.
  10. bwilson4web

    bwilson4web BMW i3 and Model 3

    Joined:
    Nov 25, 2005
    23,799
    13,462
    0
    Location:
    Huntsville AL
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    Rex Taylor was nickel plating his bus bars. Don't know about Dorman.

    Bob Wilson

  11. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    The particular conflagrations this thread is about always seem to be starting near here or here, which I don't think would be where (Rex? Dave?) Taylor was doing the nickel.

    These last pics kind of make me wonder whether the origin was in the connector or on the PCB...

    -Chap

    Fred_H likes this.
  12. bwilson4web

    bwilson4web BMW i3 and Model 3

    Joined:
    Nov 25, 2005
    23,799
    13,462
    0
    Location:
    Huntsville AL
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    Having seen how high voltage attracts dust, my thinking is connector, the pins going into the PCB. I've seen so many cases of PCBs where the IC legs have protected the filter by trapping dust. But with a voltage span of up to 300 V to improve efficiency, it makes sense.

    Collect the dust and a humid day . . . BANG!

    This is one case where 'potting' the connector leads to the board makes sense.

    Bob Wilson

    coverturtle likes this.
  13. benek

    benek New Member

    Joined:
    Jan 31, 2016
    10
    0
    0
    Location:
    UK
    Vehicle:
    2001 Prius
    Model:
    N/A
    Does anybody know what the cause of this might be and is there a way to reduce the chance of it happening? Is it caused by corrosion on the bus bar side of things or on the connector to the ECU?

    Perhaps some contact cleaner on the ECU connector and plug and then HV dielectric grease before being put back together?

  14. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    All those questions are exactly what I started this thread to try to find answers to. The best way anybody could contribute toward finding the answers would be, if you are doing any work on an old Gen 1 battery or battery ECU, please report in detail on the condition of the old bus assembly, ECU connector and circuit board, etc. With instruments if possible.

    Upthread I contributed megger readings on a new-in-box bus assembly (all very good, as you would expect). We don't have any yet from old, removed-from-service normally (i.e. not after a fire) assemblies. Those that have already been through a fire of course are too crispy to tell us much.

    Personally, I'd lean toward being pretty conservative about applying any kind of improvised treatment here that Toyota didn't. Certainly I have a new bus assembly on hand and my intention is that whenever I have reason to be in the battery, that new one is going on ... the old one's 15 years old now.

    If you had reason to be in your battery and wanted to be cautious, but you don't have a megger, you might just preventively replace the bus assembly and send the old one to someone who does have a megger, so it can be studied and add to the results here. It would help to post details of the car, age, where driven, etc.

    That doesn't address the condition of the ECU circuit board or connector, which I'd also be likely to examine with a highly critical eye.

    Here's an interesting passage I stumbled on in a page from Maxim Integrated (happens to be about their voltage regulator products, but anyway):

    It might be worth looking for a way to check that; comparative megger readings at the sense connector of a new ECU and a sampling of old (but unburned) ones could help. Perhaps there's a wash chemical that would work to gently remove such a gunk layer, but you'd want it to be one that would not damage or change the properties of the factory-applied conformal coating on the board. There's a nonzero potential for well-intended 'improvements' to make matters worse.

    So in general there's a necessary balance between the value of going in and doing something and the value of letting well enough alone if the battery is not exhibiting any problems. Iatrogenic problems from working on the battery get reported here sometimes too.

    One absolute recommendation I would make is never ignore a P3009 if your car reports it. Usually the fire reports don't mention whether the car was reporting current leakage in advance or for how long, but clearly current leakage does not always stay harmless and small.

    -Chap

    In the déjà vu department, the PriusChat record reveals that way back in 2008, within two months of buying my car and before any chance to look at how the bus assembly was put together, or hearing about any fires, I was wondering whether the bus assembly included limiting resistors. It seems like the simplest thing in the world, since they should only be feeding high-impedance analog-to-digital converters in the ECU anyway, and if each wire were built with, say, a 1 MΩ 1/8W resistor out at the module terminal end, pretty much nothing bad could happen.

    I still don't get why they didn't....

    I'm not sure whether it would work well, or not, to design a retrofit bus assembly incorporating that feature. The sticky bit would be that the ECU seems to have a smaller number of analog-to-digital converters, taking the voltage readings from sample-and-hold circuits that sort of make the rounds of the modules. Depending on how much time the sample/hold spends sampling each module, adding a large resistance in the sense wire might cause the sample to read low.

    -Chap

  15. Texas Hybrid Batteries

    Texas Hybrid Batteries Active Member

    Joined:
    Sep 7, 2014
    247
    470
    3
    Location:
    Dallas -Fort Worth
    Vehicle:
    2006 Prius
    Model:
    N/A
    Chapman,
    Steve and Brad recommended I share this with you guys. I know your addressing ECU connector fires on Gen 1's but now you can add a Gen 2 to your list. This was a 2006 with 220,000 miles. When I looked at the live data blocks 1 thru 3 were flipping between +15 Volts and -15 Volts and there was a long list of trouble codes. It was all I could do to get the connector out of the ECU and you can see that it ripped one of the pins out with it. This car came from the Texas gulf area and all I can figure is that some moisture found it's way into the connector and shorted out.

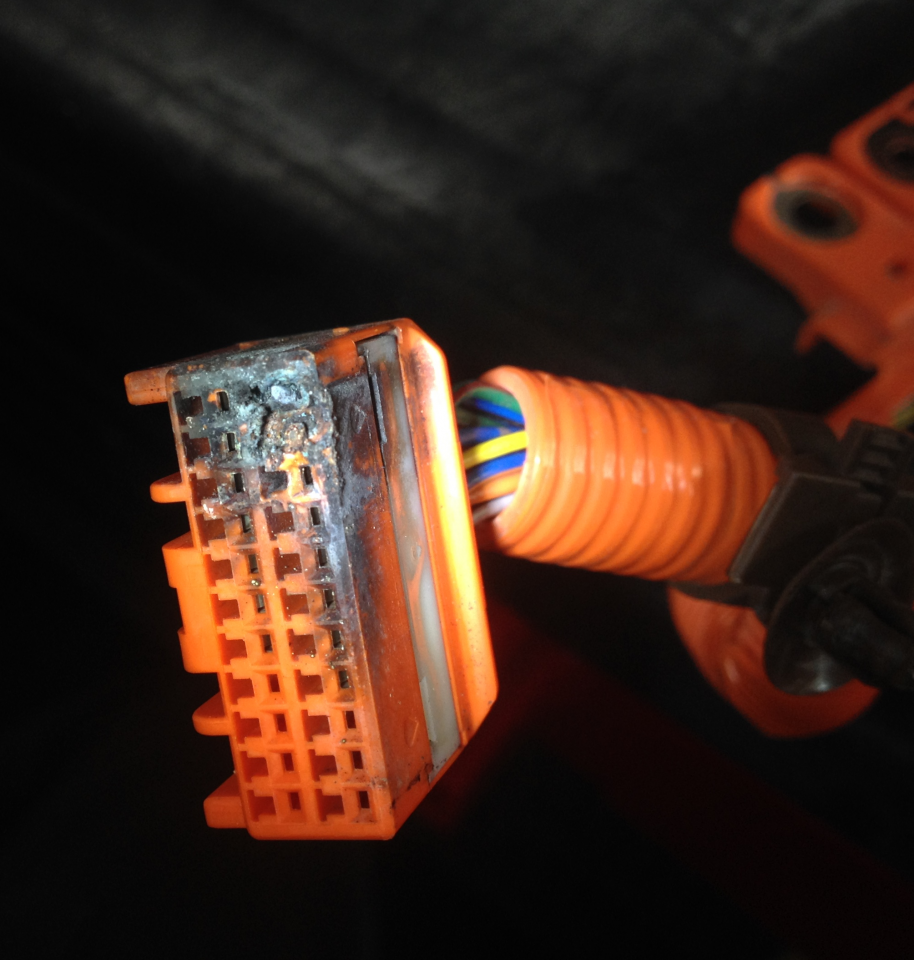

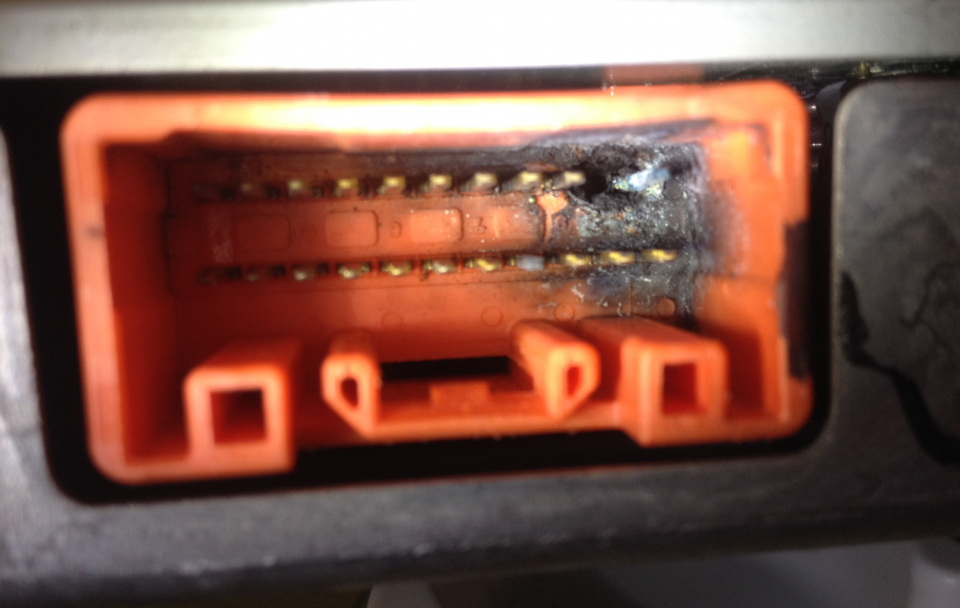

    [​IMG]
    [​IMG]

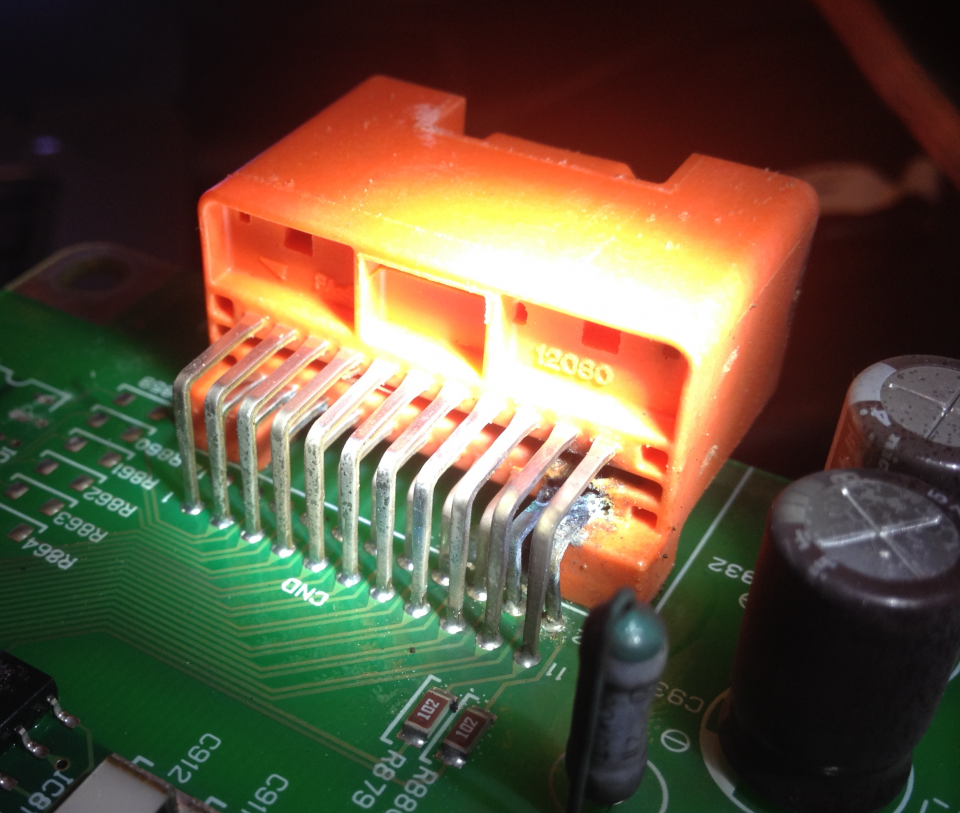

    Pictures of the ECU show that the short was only in the connector and pins and not on the board itself.
    [​IMG]

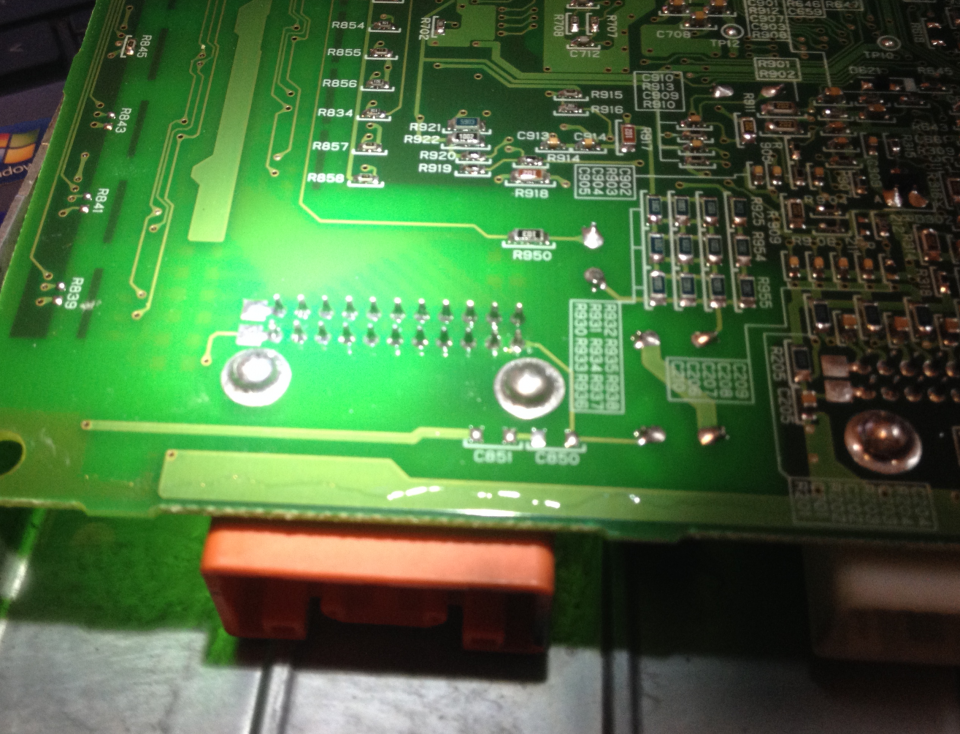

    The back side.
    [​IMG]

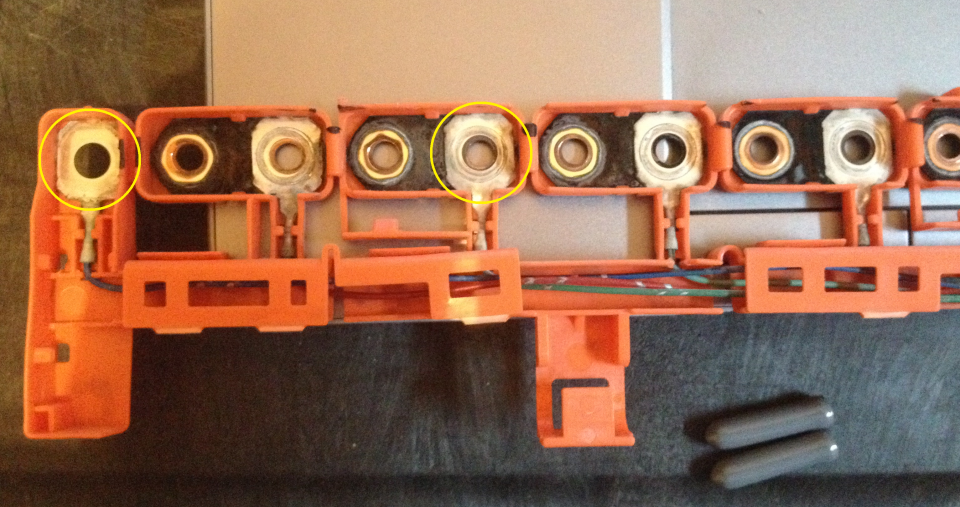

    Those 2 pins go to the primary negative connection and the block 2 positive connection. It shorted across 4 modules worth about 30 Volts.
    [​IMG]

    For the benefit of this discussion it's worth noting that there was no corrosion on any of the ECU connector pins or the inside of the harness connector.

    Matt

    m.wynn, Fred_H, Patrick Wong and 2 others like this.
  16. DRACO

    DRACO Member

    Joined:
    Nov 28, 2015
    360
    72
    0
    Location:
    Rancho Palos Verdes, California
    Vehicle:
    2002 Prius
    Model:
    One
    Holy Poop Batman! Water and Prius = BAD

  17. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,150
    6,187
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    Maybe this is why Toyota dealer service depts recommend proactive replacement of the traction battery ECU if the customer is paying for the traction battery replacement. With a new battery, the sense wires and wiring harness leading to the ECU will be new, so if the traction battery ECU is replaced then the ECU's connector also will be new and there should be no reason for a high voltage leak in that area.

    An owner who felt the need to clean that area should use 91% isopropyl alcohol which will leave no residue. I am not sure about the use of electrical contact cleaner, which has a tiny amount of lubricant in it.

    m.wynn and Fred_H like this.
  18. Texas Hybrid Batteries

    Texas Hybrid Batteries Active Member

    Joined:
    Sep 7, 2014
    247
    470
    3
    Location:
    Dallas -Fort Worth
    Vehicle:
    2006 Prius
    Model:
    N/A
    I actually didn't know that Toyota recommended that but it's not surprising. I'm not a fan of replacing parts that aren't broken. In this guys case Toyota wanted to replace the whole battery and once they were in to it they would have realized that the ECU needed replacing as well which would have cost another $500. His battery was actually very healthy despite the mileage so we cleaned it up and installed a new wire harness and ECU for $400. I'd call that a win for a Prius owner.

    m.wynn, Fred_H, DRACO and 1 other person like this.
  19. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,316
    7,591
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    If I understand correctly, Dorman's (formerly ReInvolt's) rebuilds come with an ECU, as a matter of course. At least, that was the case when it was ReInvolt.

    I was sure I remembered someone (it was pEEf) doing an ECU teardown. It was for a Gen 2; shows the photoMOS switches used to select sample voltages from the sense connector. Later in that same thread, vertex offered a partially worked-out schematic of the sampling arrangement. Later, pEEf mentions getting a look at a Gen 1, finding it to be a similar but higher-component-count design.

    I wish vertex had had more time to work out that schematic. It might indicate the effective input impedance, therefore how significantly readings would be in error if resistors were added to the bus assembly. That would also depend on how long each photoMOS switch closes to take its voltage sample. I still think somebody scoped that out once, but I haven't been able to find it again yet.

    -Chap

  20. strawbrad

    strawbrad http://minnesotahybridbatteries.com

    Joined:
    Aug 9, 2011
    874
    848
    0
    Location:
    Minnesota
    Vehicle:
    2005 Prius
    Model:
    II
    Chap, I just read the post about the end of your car, bummer.

    You wish is my command.

    WP_20160423_14_28_57_Pro.jpg WP_20160423_14_30_29_Pro.jpg WP_20160423_14_33_03_Pro.jpg

    That is a Gen II battery computer. It did not start a fire and came out of a working car. This is now something that gets checked on every rebuild.


    Brad
