Under dash electrics

Discussion in 'Gen 4 Prius Main Forum' started by hgcvt, Jul 5, 2020.

  1. hgcvt

    hgcvt New Member

    Joined:
    Jul 5, 2020
    2
    0
    0
    Location:
    05401
    Vehicle:
    2020 Prius
    Model:
    LE AWD-e

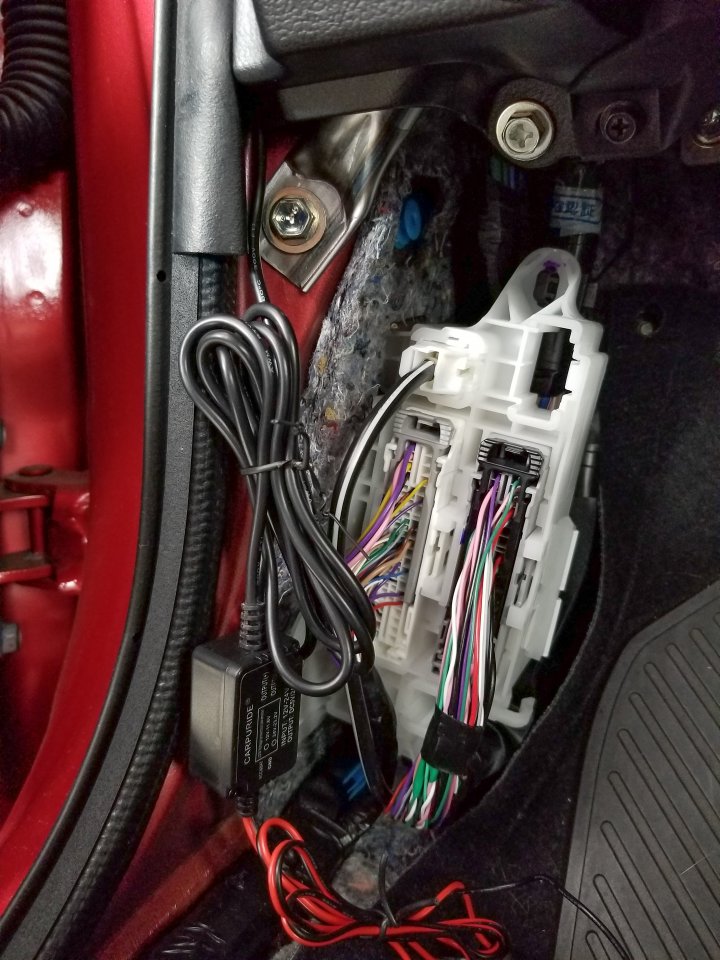

    Can anyone tell me if the large black/white stripe wire in this pic is Battery+?
    I'm trying to run a positive wire to the trailer hitch wiring control box in the trunk. It would be much easier to tap into this wire than try to get access through the firewall.
    [​IMG]

    #1 hgcvt, Jul 5, 2020
  2. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,311
    15,099
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    If nobody jumps in, you'll get a reliable answer from the wiring diagram (more info).

    #2 ChapmanF, Jul 5, 2020
  3. hgcvt

    hgcvt New Member

    Joined:
    Jul 5, 2020
    2
    0
    0
    Location:
    05401
    Vehicle:
    2020 Prius
    Model:
    LE AWD-e
    Thanks,
    If no one does, I'll subscribe to TIS so I can view the diagram.
    The wire is hot, just not sure if it's direct to the battery or not. Sure does appear that way.

    #3 hgcvt, Jul 5, 2020
  4. Elektroingenieur

    Elektroingenieur Senior Member

    Joined:
    Jan 8, 2017
    2,515
    3,253
    9
    Location:
    California
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    The Electrical Wiring Diagram shows (under System Circuit: Steering: EPS) that it’s the power supply for the power steering ECU assembly. I’d strongly recommend not disturbing it.

    If you don’t need much current, my April 2017 posting describes an alternative.

    #4 Elektroingenieur, Jul 6, 2020
    alanclarkeau likes this.
