Just got a scanguage today, what to do?

Discussion in 'Prius c Accessories and Modifications' started by DKTVAV, Jan 9, 2014.

  1. DKTVAV

    DKTVAV Active Member

    Joined:
    Jun 3, 2012
    510
    101
    0
    Vehicle:
    2012 Prius c
    Model:
    Four
    I tried to search for a thread where people mounted theirs and what needs to show on display but couldn't find it. I believe I've seen some pics or videos DIY and also something about downloading a file to do something with. Any suggestions?

    #1 DKTVAV, Jan 9, 2014
  2. Rob.au

    Rob.au Active Member

    Joined:
    Aug 4, 2012
    960
    441
    0
    Location:
    Sydney, Australia
    Vehicle:
    2012 Prius c
    Model:
    i-Tech
    #2 Rob.au, Jan 9, 2014
  3. WD0AFQ

    WD0AFQ Active Member

    Joined:
    Jul 6, 2012
    619
    152
    20
    Location:
    Dexter, Mo.
    Vehicle:
    2012 Prius c
    Model:
    Two
    I use Velcro to mount mine to steering column. You will need to set the gauge up to match the C. That will be in the manual that comes with the unit. I have been running a ScanGauge for several years and really like the simplicity of the unit.
    Dan

    #3 WD0AFQ, Jan 9, 2014
  4. DKTVAV

    DKTVAV Active Member

    Joined:
    Jun 3, 2012
    510
    101
    0
    Vehicle:
    2012 Prius c
    Model:
    Four
    I just mounted it last night after having trouble routing the cable. I didn't use Xguage yet only went thru advance settings and happy to see it's turning off when the car is off.

    What are you having on your screen? I think I will use the RPM and the most important to me water temp, not sure the other two though.

    #4 DKTVAV, Jan 10, 2014
  5. WD0AFQ

    WD0AFQ Active Member

    Joined:
    Jul 6, 2012
    619
    152
    20
    Location:
    Dexter, Mo.
    Vehicle:
    2012 Prius c
    Model:
    Two
    Don't know why you should have trouble running cable, lots of room and choice of side or rear plug in. I run rpm, engine temp, instant mpg. I find instant mpg right in front of my eyes along with the dash average is very helpful to me. Voltage is fourth now but I switch it around. The tank average mpg is always right on when used with gallons used. If it says it needs 8 gallons to fill it that will be exactly right once you get everything set just right.
    I bought an ultra gauge to play with but like this one better because of the simplicity.
    Dan

    #5 WD0AFQ, Jan 10, 2014
  6. Rob.au

    Rob.au Active Member

    Joined:
    Aug 4, 2012
    960
    441
    0
    Location:
    Sydney, Australia
    Vehicle:
    2012 Prius c
    Model:
    i-Tech
    I use LOD, C°WT, AMP and SoC.

    #6 Rob.au, Jan 10, 2014
  7. DKTVAV

    DKTVAV Active Member

    Joined:
    Jun 3, 2012
    510
    101
    0
    Vehicle:
    2012 Prius c
    Model:
    Four

    In this table:



    I found 2 soc but none of the rest. What are they and where can I find them?

    #7 DKTVAV, Jan 10, 2014
  8. DKTVAV

    DKTVAV Active Member

    Joined:
    Jun 3, 2012
    510
    101
    0
    Vehicle:
    2012 Prius c
    Model:
    Four
    #8 DKTVAV, Jan 10, 2014
  9. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    Hi DKTVAV,

    There are 3 worksheets in my spreadsheet, you can choose your preference for units of measurement; US or Metric at the bottom.

    Vincent

    #9 vincent1449p, Jan 10, 2014
  10. DKTVAV

    DKTVAV Active Member

    Joined:
    Jun 3, 2012
    510
    101
    0
    Vehicle:
    2012 Prius c
    Model:
    Four



    Hi vincent1449p,

    I did search your worksheets in both US and Metric but couldn't find LOD, C°WT, AMP and there are 2 of SoC.

    #10 DKTVAV, Jan 11, 2014
  11. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    Hi DKTVAV,

    LOD and C°WT is from the built-in gauges in SGII. In my spreadsheet, cld (row 111) and eCt (row 118) do the same function of displaying Engine Load and Water Temp respectively.

    AMP is from GenIII Xgauges (row 25), I use a different name, IB (row 271).

    SoC (row 167) and SOC (row 185) display the same State-Of-Charge. I use the former because my SGII firmware is older ver. 3.17 and cannot display multi-frame msg. You need firmware 4.xx to display the latter.

    Vincent

    #11 vincent1449p, Jan 11, 2014
  12. Rob.au

    Rob.au Active Member

    Joined:
    Aug 4, 2012
    960
    441
    0
    Location:
    Sydney, Australia
    Vehicle:
    2012 Prius c
    Model:
    i-Tech
    Vincent's covered it, but note you will see F°WT instead of C°WT in the built-in gauges if you don't have the device in metric mode. It's the same information, just different units.

    #12 Rob.au, Jan 11, 2014
  13. TheTimob

    TheTimob Member

    Joined:
    Jan 16, 2014
    120
    79
    0
    Location:
    Divide, CO
    Vehicle:
    2013 Prius c
    Model:
    Three

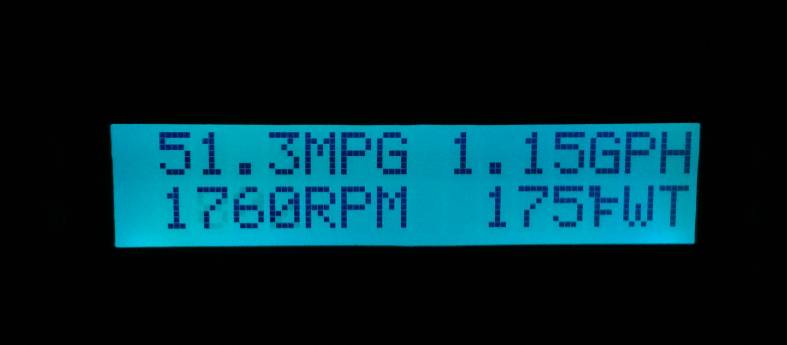

    I'm using MPG/GPH and RPM/FWT


    #13 TheTimob, Jan 23, 2014
  14. DKTVAV

    DKTVAV Active Member

    Joined:
    Jun 3, 2012
    510
    101
    0
    Vehicle:
    2012 Prius c
    Model:
    Four
    I'm using:

    RPM----------f°WT
    MPH----------LOD

    #14 DKTVAV, Jan 24, 2014
  15. JimN

    JimN Let the games begin!

    Joined:
    Nov 26, 2006
    7,028
    1,116
    0
    Location:
    South Jersey
    Vehicle:
    2010 Prius
    Model:
    V
    I monitor inverter coolant temp, engine coolant temp, RPM & MPG.

    #15 JimN, Jan 24, 2014
